Piston Kit 86-97 TS250 71.00, Forged Wossner 8013D100

Piston Kit 86-97 TS250 71.00, Forged Wossner 8013D100. Find the product specifications and compatibility information below.

Product details

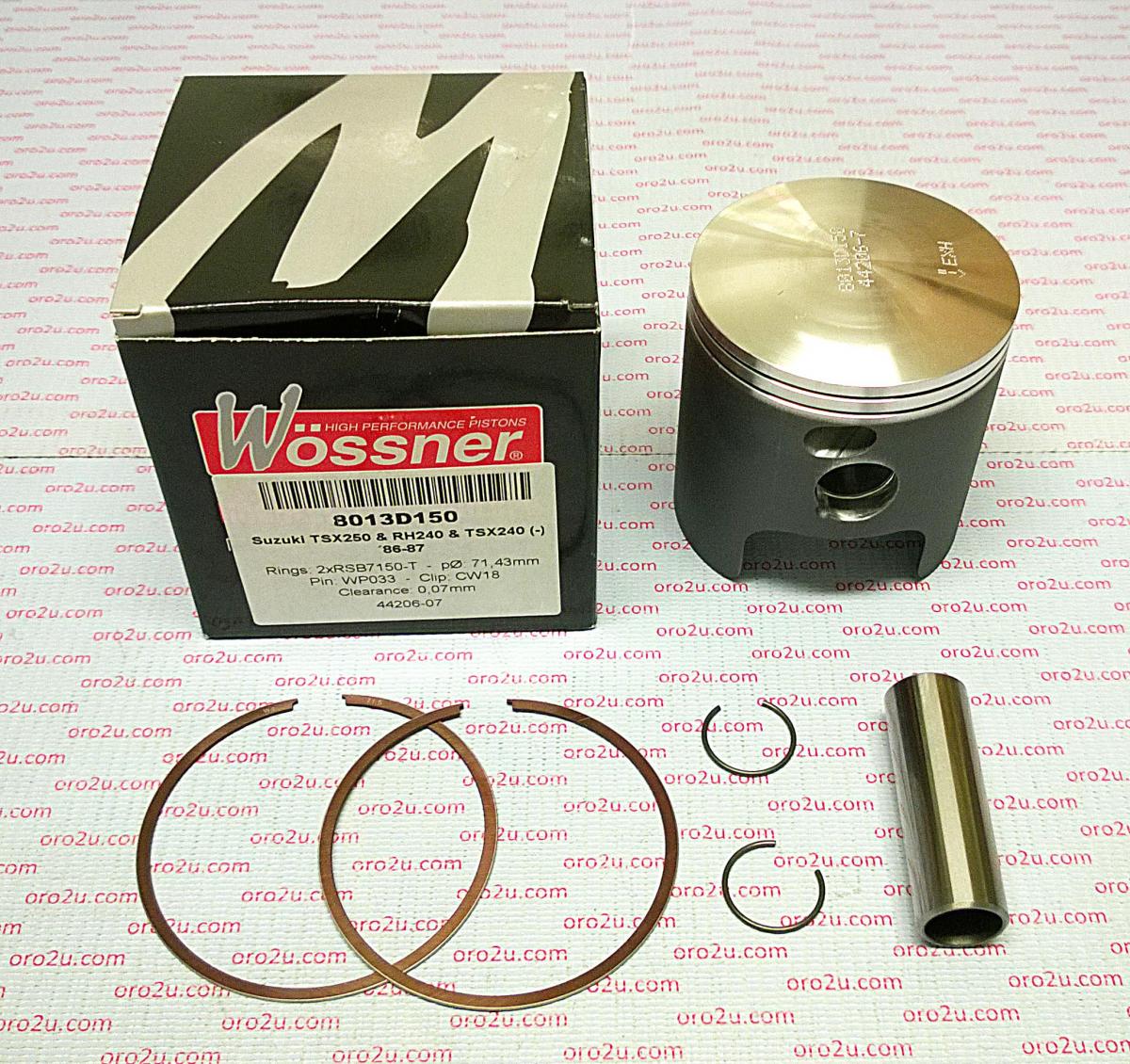

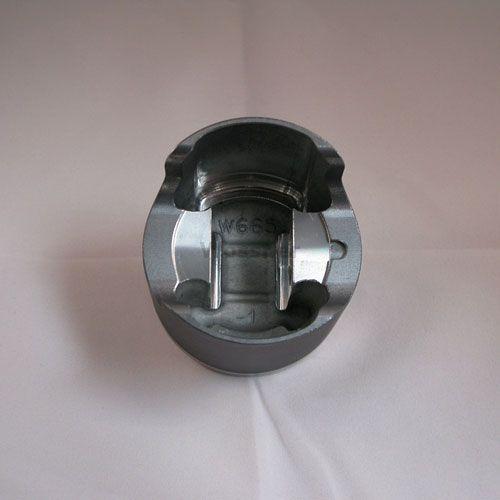

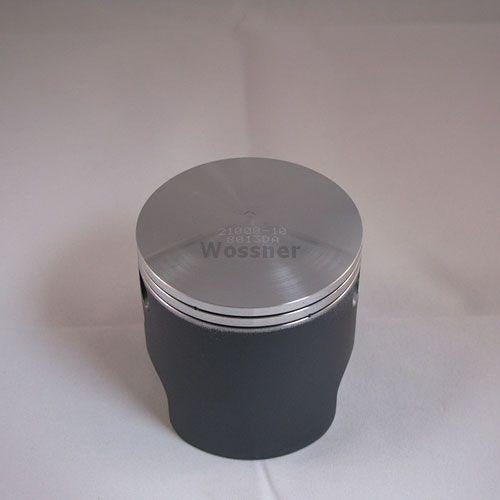

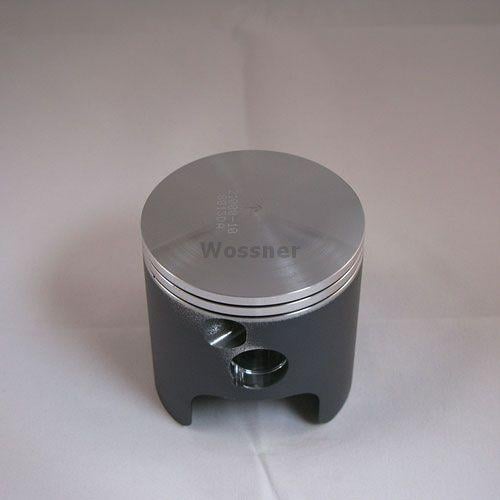

• Product: Piston Kit 86-97 TS250 71.00, Forged Wossner 8013D100
• Part number: 56-W256.100.WO
• Brand: Wossner
• Wossner forged piston kit with a 71.00mm bore and 70.93mm diameter, designed for Suzuki TSX250, RH240, and TSX240 models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.
• Forged construction for superior strength
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform load distribution
• Manufactured in Germany
• Bore: 71.00mm
• Diameter: 70.93mm
• Display (cm³): 250
• Stroke (mm): 50.60
• Clearance (mm): 0.07
• Wossner Compression Ratio: 2-Stroke
• OEM Compression Ratio: 2-Stroke
• Compression Height (mm): 31.00
• Cross-Reference OEM Part Numbers
• Wossner Piston Suzuki TSX250 (PN# 8013D100)
• Lock P/N: CW18
• Pin P/N: WP033
• Ring Set P/N: RSB7100 x 2
• Vehicle Fitments
• Suzuki TSX250 (1986-1987)
• Suzuki RH240 (1986-1987)
• Suzuki TSX240 (1986-1987)

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
