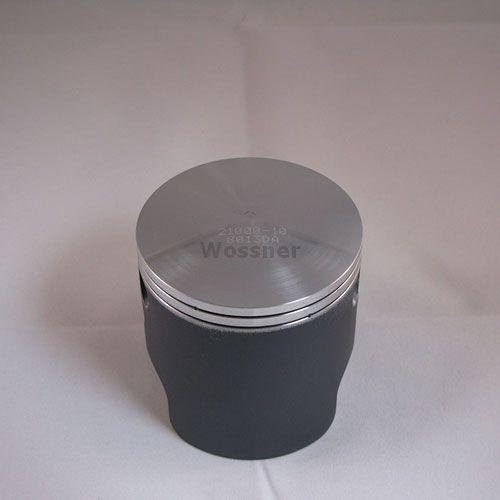

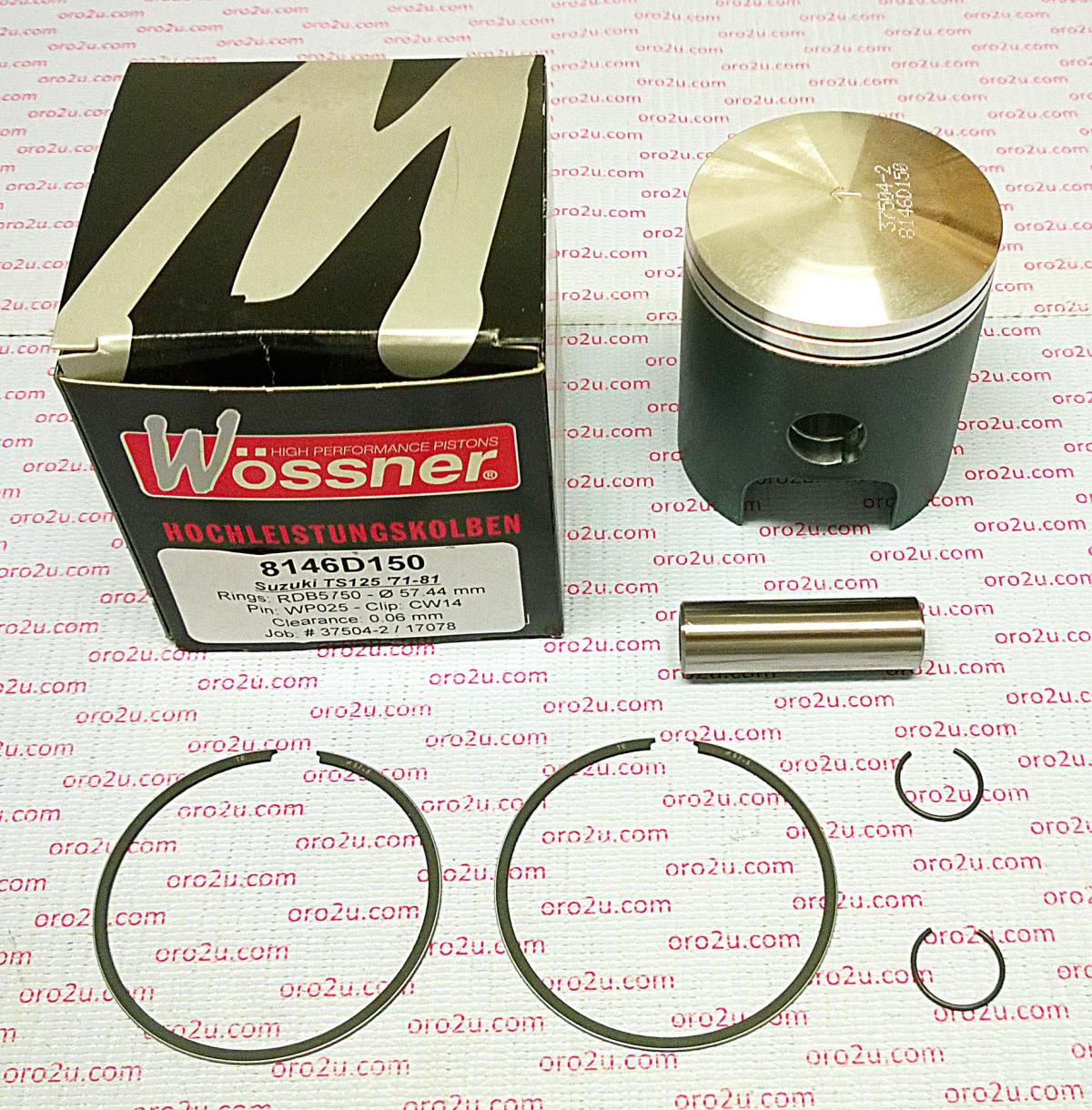

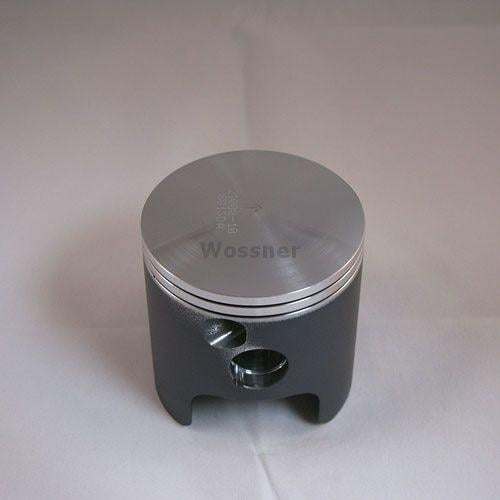

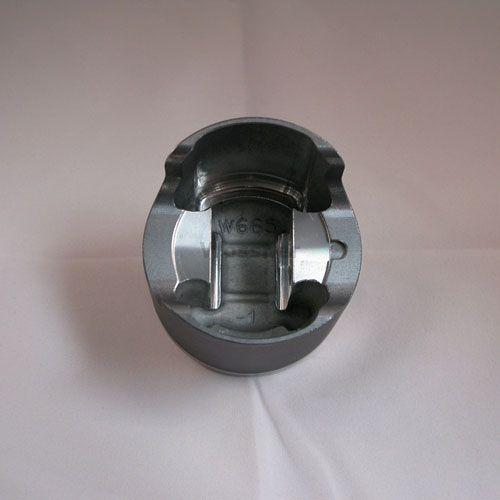

Piston Kit 71-89 TS125 57.50, Forged Wossner 8146D150

Piston Kit 71-89 TS125 57.50, Forged Wossner 8146D150. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 71-89 TS125 57.50, Forged Wossner 8146D150
• Part number: 56-W257.150.WO
• Brand: Wossner
• Forged construction for superior strength
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform load distribution
• Manufactured in Germany
• Bore: 57.50mm
• Diameter: 56.94mm
• Display (cm³): 125
• Stroke (mm): 50.00
• Clearance (mm): 0.06
• Wossner Compression Ratio: 2-Stroke
• OEM Compression Ratio: 2-Stroke
• Compression Height (mm): 29.00
• Cross-Reference OEM Part Numbers
• Lock P/N: CW14
• Pin P/N: WP025
• Ring Set P/N: RSB5750 x 2

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI TS X 125cc — 1984–1989
• SUZUKI TS ER 125cc — 1979–1981
• SUZUKI TS 125cc — 1971–1981
• SUZUKI RV 125cc — 1974–1978
• SUZUKI TS ER 125cc — 1971–1981

Match your exact make, model, year and specification before ordering.
