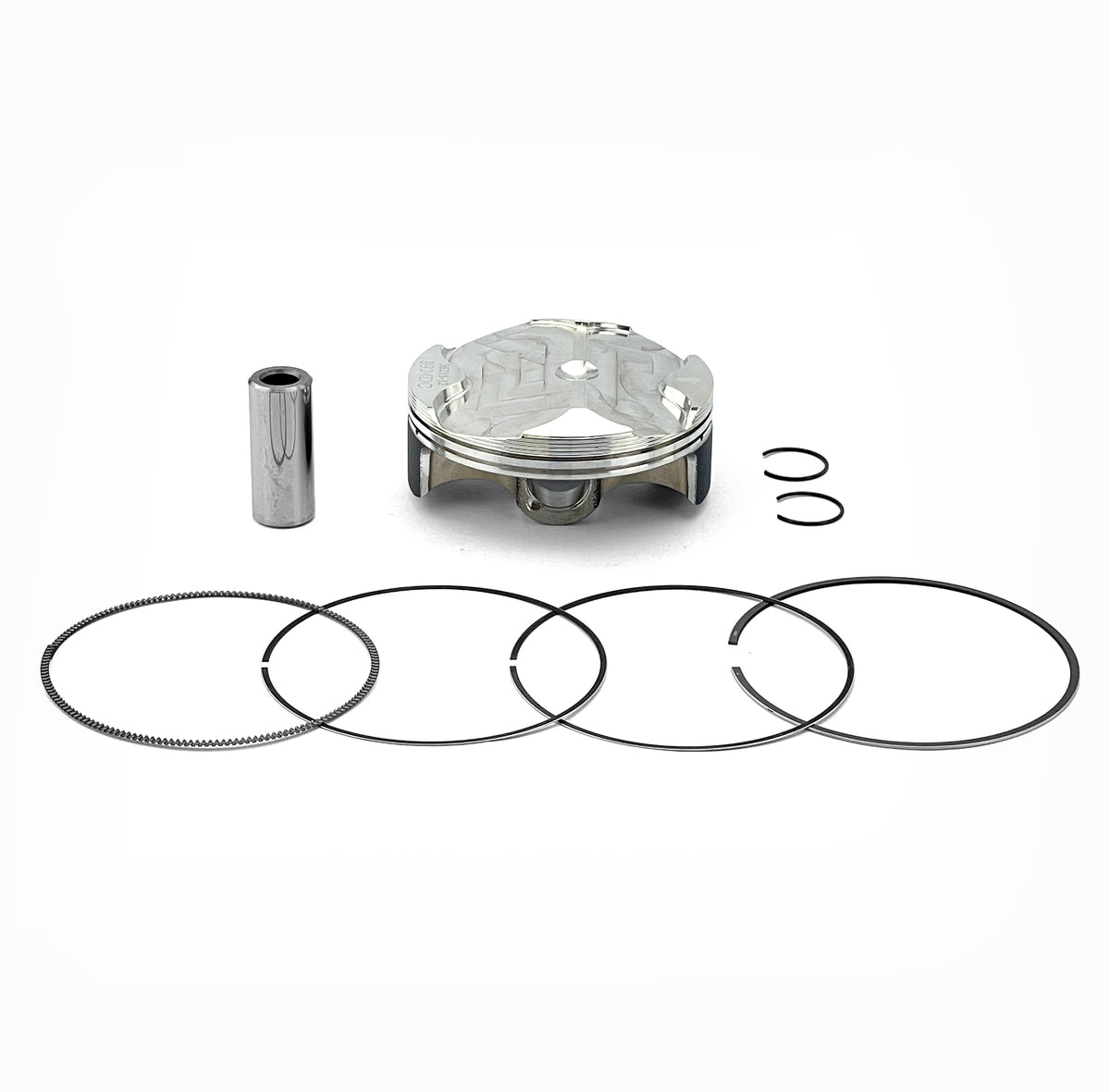

Piston Kit 16-22 SXF250 78mm KTM Hc High Compression Wossner 8924DC

Piston Kit 16-22 SXF250 78mm KTM Hc High Compression Wossner 8924DC. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 16-22 SXF250 78mm KTM Hc High Compression Wossner 8924DC
• Part number: 56-W265.C.WO.HC
• Brand: Wossner
• Piston Kit Details:
• Piston Kit: Wossner 8924DC (+0.02mm)
• Bore Size: 78.02mm
• Piston Size: 77.97mm
• Lock Part Number: CW16
• Pin Part Number: WP070
• Ring Set Part Number: RIK78.00
• Application Information:
• Piston Features:
• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany
• Technical Specifications:
• Display (cm3): 249
• Hub Stroke (mm): 52.30
• Clearance (mm): 0.05
• Wossner Compression Ratio: 14.50:1
• OEM Compression Ratio: 13.90:1
• Dome Volume (cm3): -0.94
• Compression Height (mm): 19.50
• Theoretical Weight (G): 135.00

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM EXC F 250cc — 2017–2019
• GAS-GAS MC F 250cc — 2021
• GAS-GAS EX F 250cc — 2021
• KTM SX F 250cc — 2016–2018
• KTM XC F 250cc — 2016–2019
• KTM SX F 250cc — 2016–2019
• KTM SX F 250cc — 2016–2020
• HUSQVARNA FE 250cc — 2017–2019
• HUSQVARNA FC 250cc — 2016–2019
• HUSQVARNA FC 250cc — 2016–2020
• KTM XC F 250cc — 2016–2021
• KTM SX F 250cc — 2016–2021
• HUSQVARNA FC 250cc — 2016–2021
• KTM EXC F 250cc — 2016–2017
• HUSQVARNA FE 250cc — 2016
• KTM SX F 250cc — 2016
• KTM EXC F 250cc — 2016–2018

Match your exact make, model, year and specification before ordering.
