Piston Kit 05-08 KXF450 Hc 96, Forged Wossner 8670DB

Piston Kit 05-08 KXF450 Hc 96, Forged Wossner 8670DB. Find the product specifications and compatibility information below.

Product details

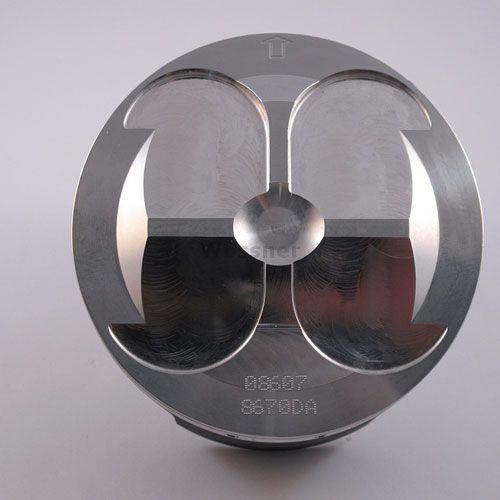

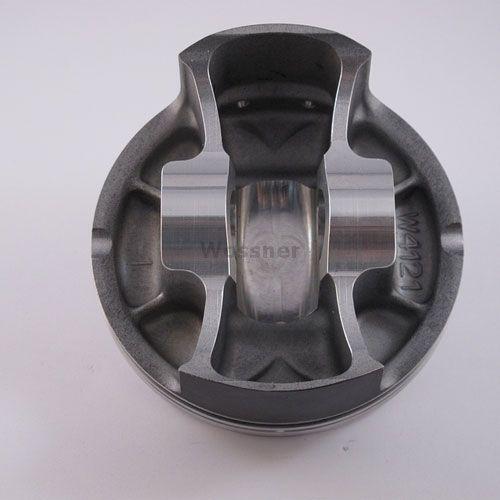

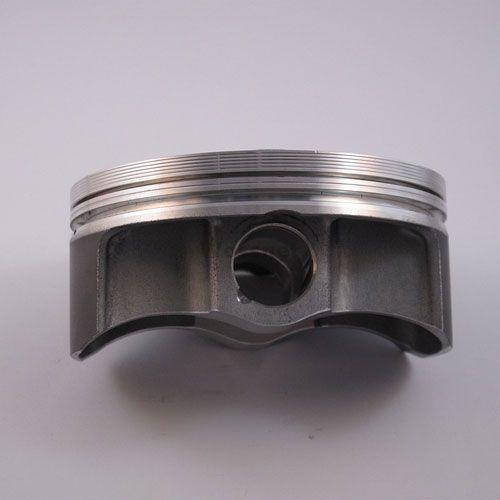

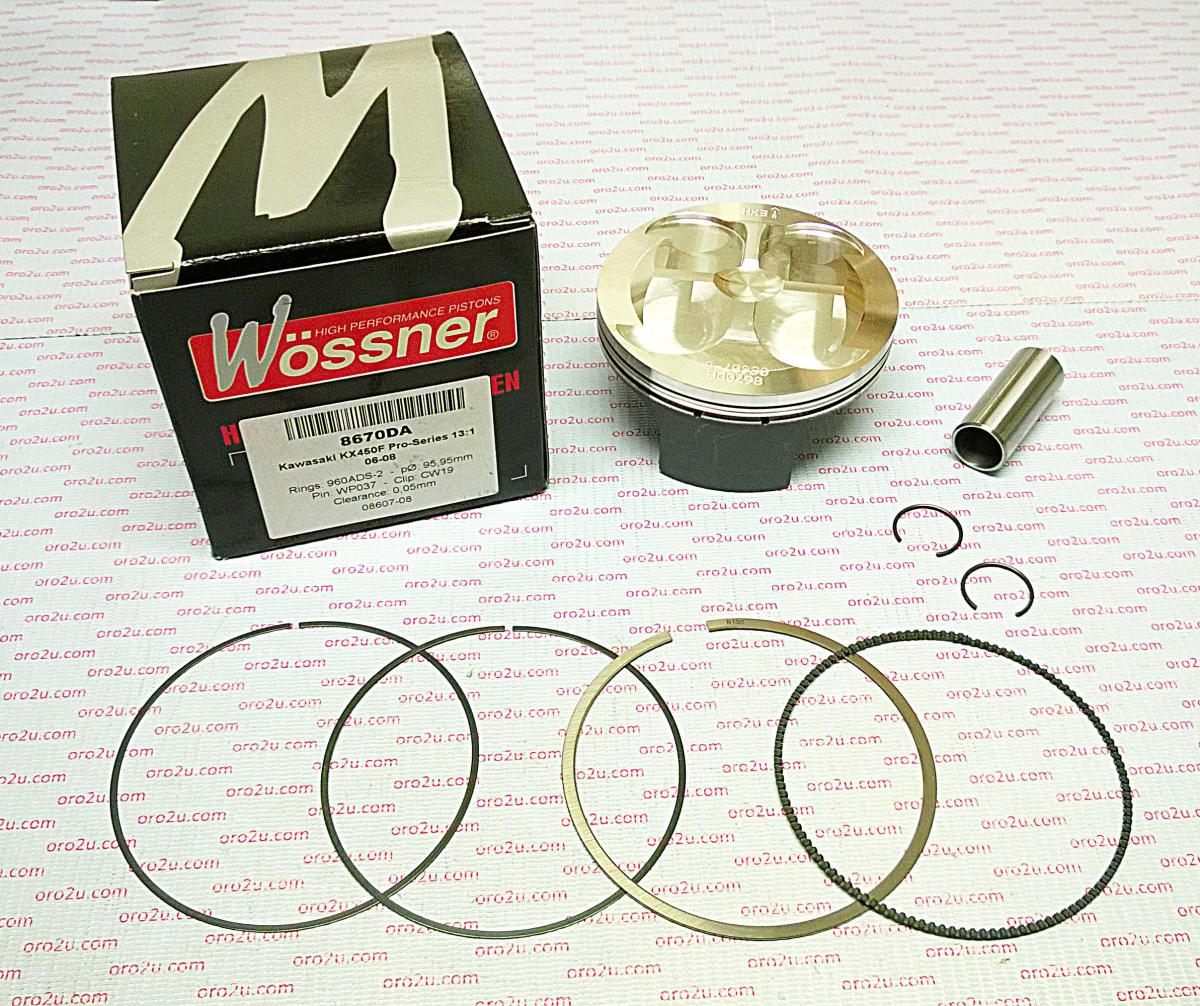

• Product: Piston Kit 05-08 KXF450 Hc 96, Forged Wossner 8670DB
• Part number: 56-W303.B.WO
• Brand: Wossner
• High-compression forged piston for increased performance
• Optimized heat transfer for improved efficiency
• Elliptical design ensures uniform bearing surface under heat expansion
• Even thrust load distribution to prevent piston collapse
• Manufactured in Germany
• Bore Size: 96.01mm (95.96mm)
• Compression Ratio: 13.0:1
• Part Number: 8670DB
• Lock Part Number: CW19
• Pin Part Number: WP037
• Ring Set Part Number: 960ADS-2
• Rod Part Number: P4010
• Displacement: 250 cm³
• Stroke: 62.10mm
• Clearance: 0.05mm
• OEM Compression Ratio: 12.0:1
• Dome Volume: +5.60 cm³
• Compression Height: 23.60mm

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX F 450cc — 2006–2008
• KAWASAKI KLX R 450cc — 2008–2020

Match your exact make, model, year and specification before ordering.
