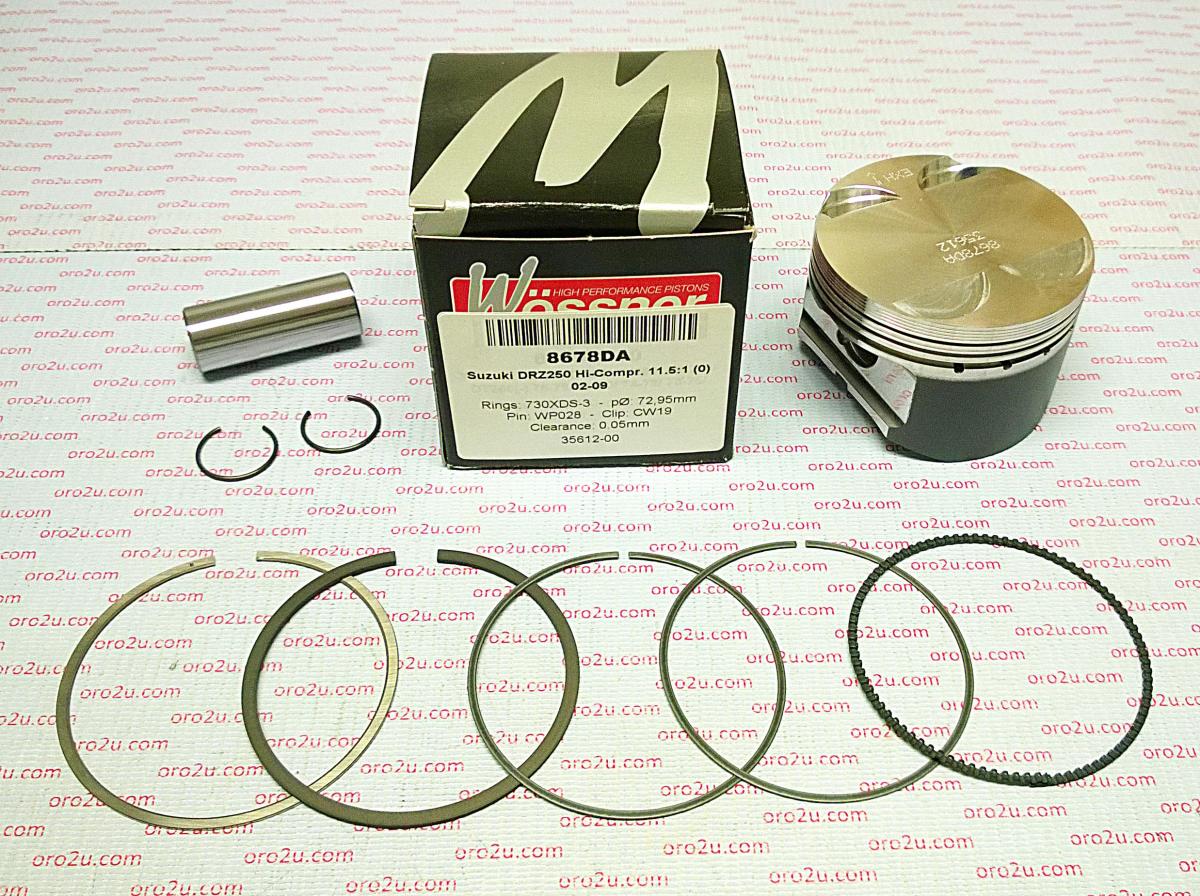

Piston Kit 002-09 DRZ250 73 Hc, Forged Wossner 8678D700

Piston Kit 002-09 DRZ250 73 Hc, Forged Wossner 8678D700. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 002-09 DRZ250 73 Hc, Forged Wossner 8678D700
• Part number: 56-W304_700
• Brand: Wossner
• High-compression forged piston for increased performance
• Big bore design for enhanced displacement
• Optimized heat transfer for improved efficiency
• Elliptical design ensures uniform bearing surface under heat expansion
• Even thrust load distribution to prevent piston collapse
• Manufactured in Germany
• Bore Size: 80mm (79.95mm)
• Compression Ratio: 11.5:1
• Part Number: 8678D700
• Lock Part Number: CW19
• Pin Part Number: WP028
• Ring Set Part Number: 800XDS
• Stroke: 59.60mm
• Clearance: 0.05mm
• OEM Compression Ratio: 10.4:1
• Dome Volume: -1.40 cm³
• Compression Height: 24.00mm

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI DR Z 250cc — 2002–2009

Match your exact make, model, year and specification before ordering.
