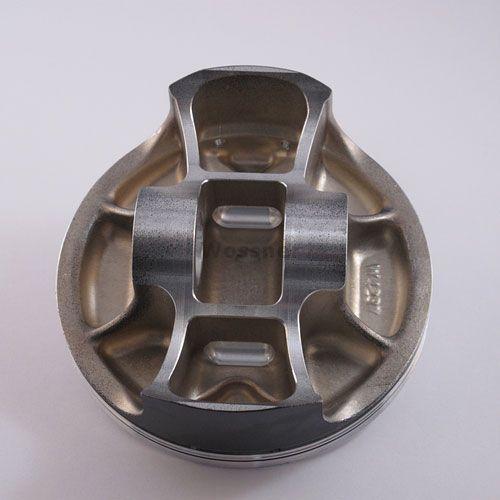

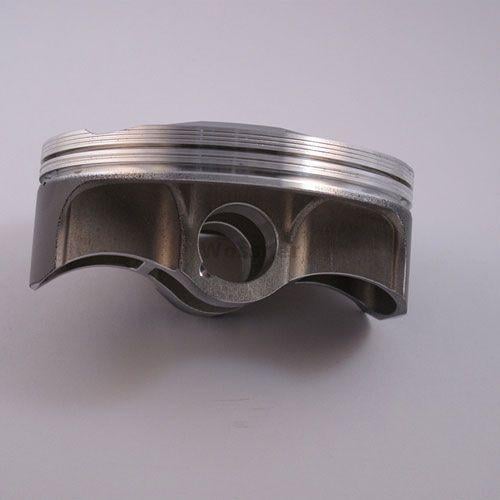

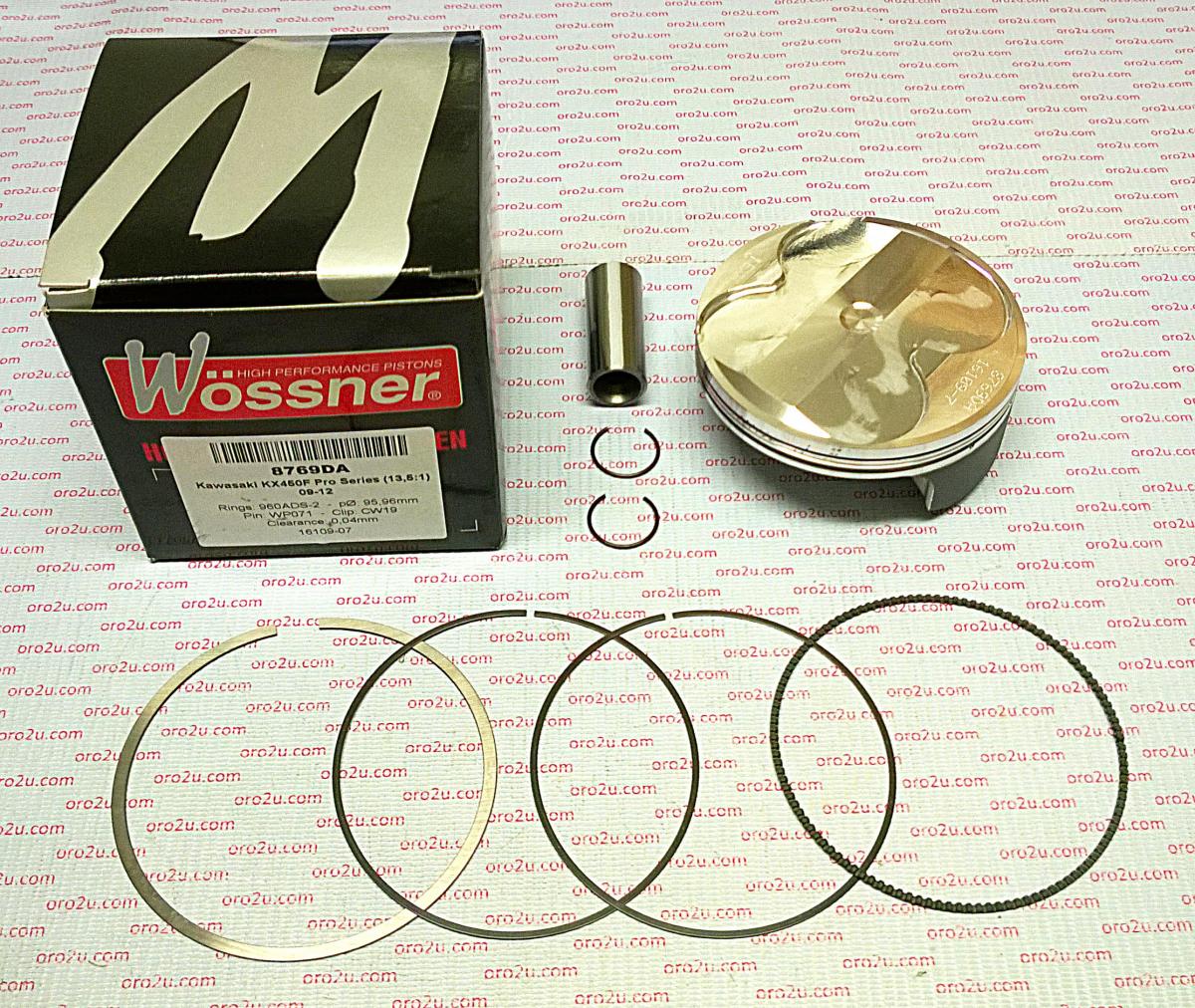

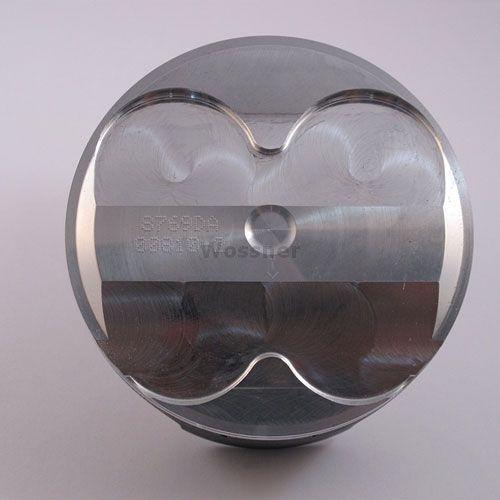

Piston Kit 09-12 KXF450 Hc 96, Forged Wossner 8769DA 13001-0110

Piston Kit 09-12 KXF450 Hc 96, Forged Wossner 8769DA 13001-0110. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 09-12 KXF450 Hc 96, Forged Wossner 8769DA 13001-0110
• Part number: 56-W309.A.WO
• Brand: Wossner
• High-compression forged piston for increased performance
• Optimized heat transfer for enhanced durability
• Elliptical design ensures uniform bearing surface under heat expansion
• Even thrust load distribution to prevent piston collapse
• Manufactured in Germany
• Bore Size: 96mm (95.96mm)
• Compression Ratio: 13.5:1
• Part Number: 8769DA
• Lock Part Number: CW19
• Pin Part Number: WP071
• Ring Set Part Number: 960ADS-2
• Rod Part Number: P4020
• Displacement: 449 cm³
• Stroke: 62.10mm
• Clearance: 0.04mm
• OEM Compression Ratio: 12.5:1
• Dome Volume: +4.20 cm³
• Compression Height: 23.70mm
• Cross-Reference OEM Part Numbers
• 13001-0110
• 4990M09600

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX F 450cc — 2009–2012

Match your exact make, model, year and specification before ordering.
