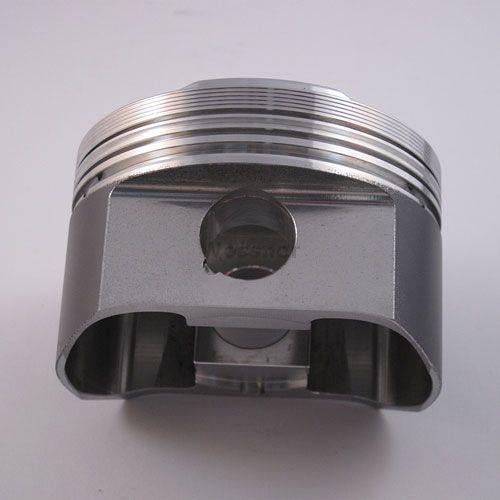

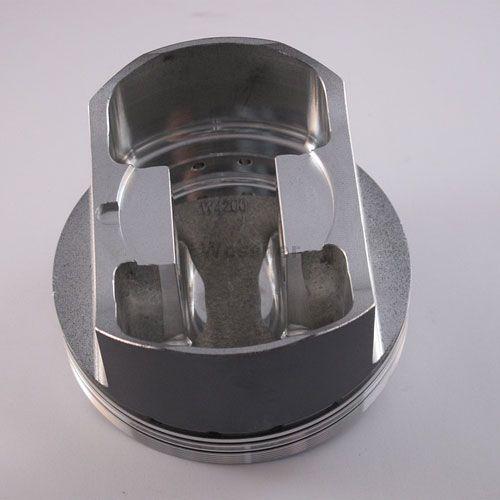

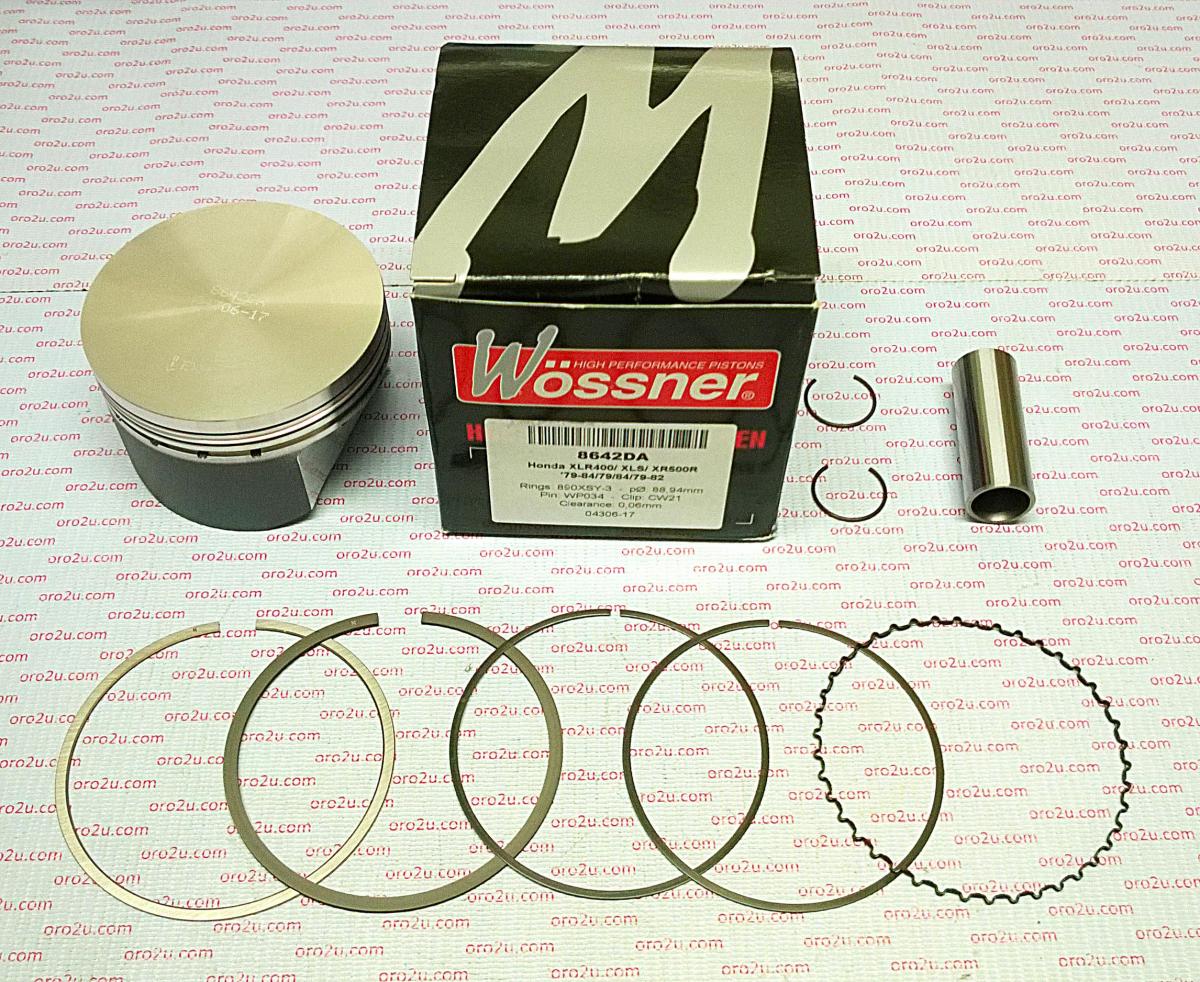

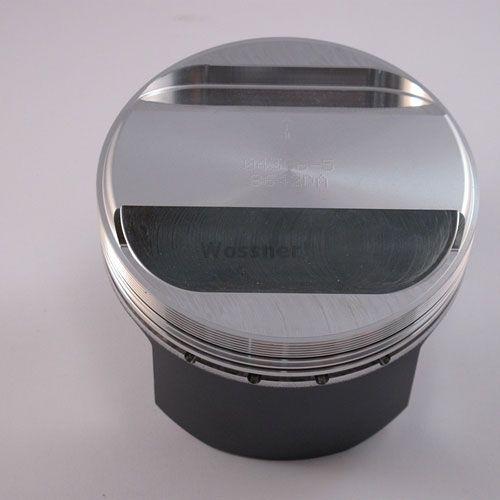

Piston Kit XR Xlr 500 89.50, Forged Wossner 8642D050

Piston Kit XR Xlr 500 89.50, Forged Wossner 8642D050. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit XR Xlr 500 89.50, Forged Wossner 8642D050
• Part number: 56-W310+050
• Brand: Wossner
• Forged piston for increased strength and durability
• Optimized heat transfer for improved performance
• Elliptical design ensures uniform bearing surface under heat expansion
• Even thrust load distribution to prevent piston collapse
• Manufactured in Germany
• Bore Size: 89.50mm (89.44mm)
• Compression Ratio: 9.0:1
• Part Number: 8642D050
• Lock Part Number: CW21
• Pin Part Number: WP034
• Ring Set Part Number: 895XSY
• Displacement: 398 cm³
• Stroke: 64.00mm
• Clearance: 0.06mm
• OEM Compression Ratio: 8.6:1
• Dome Volume: +0.00 cm³
• Compression Height: 29.70mm

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA XR 400cc — 1996–2004
• HONDA XL 500cc — 1979–1982
• HONDA XL R 500cc — 1979–1982
• HONDA XR R 500cc — 1979–1982
• HONDA XR 500cc — 1979–1982
• HONDA XLS 500cc — 1979–1982
• HONDA XLS 500cc — 1979–1984
• HONDA XLR 500cc — 1979–1984
• HONDA XL R 500cc — 1979–1984

Match your exact make, model, year and specification before ordering.
