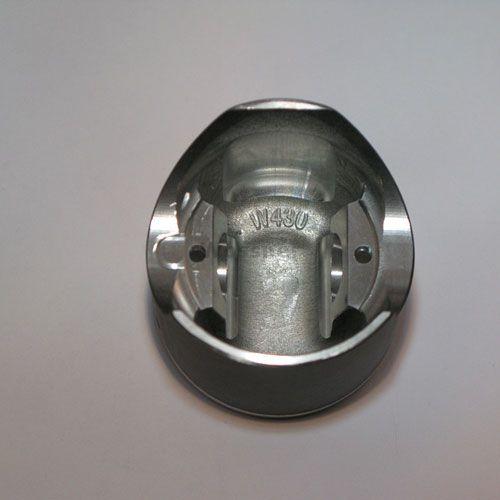

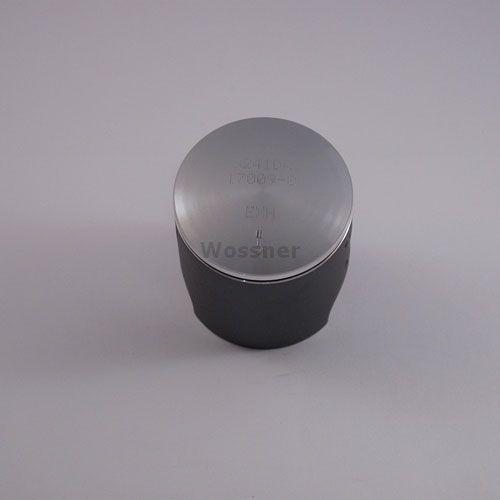

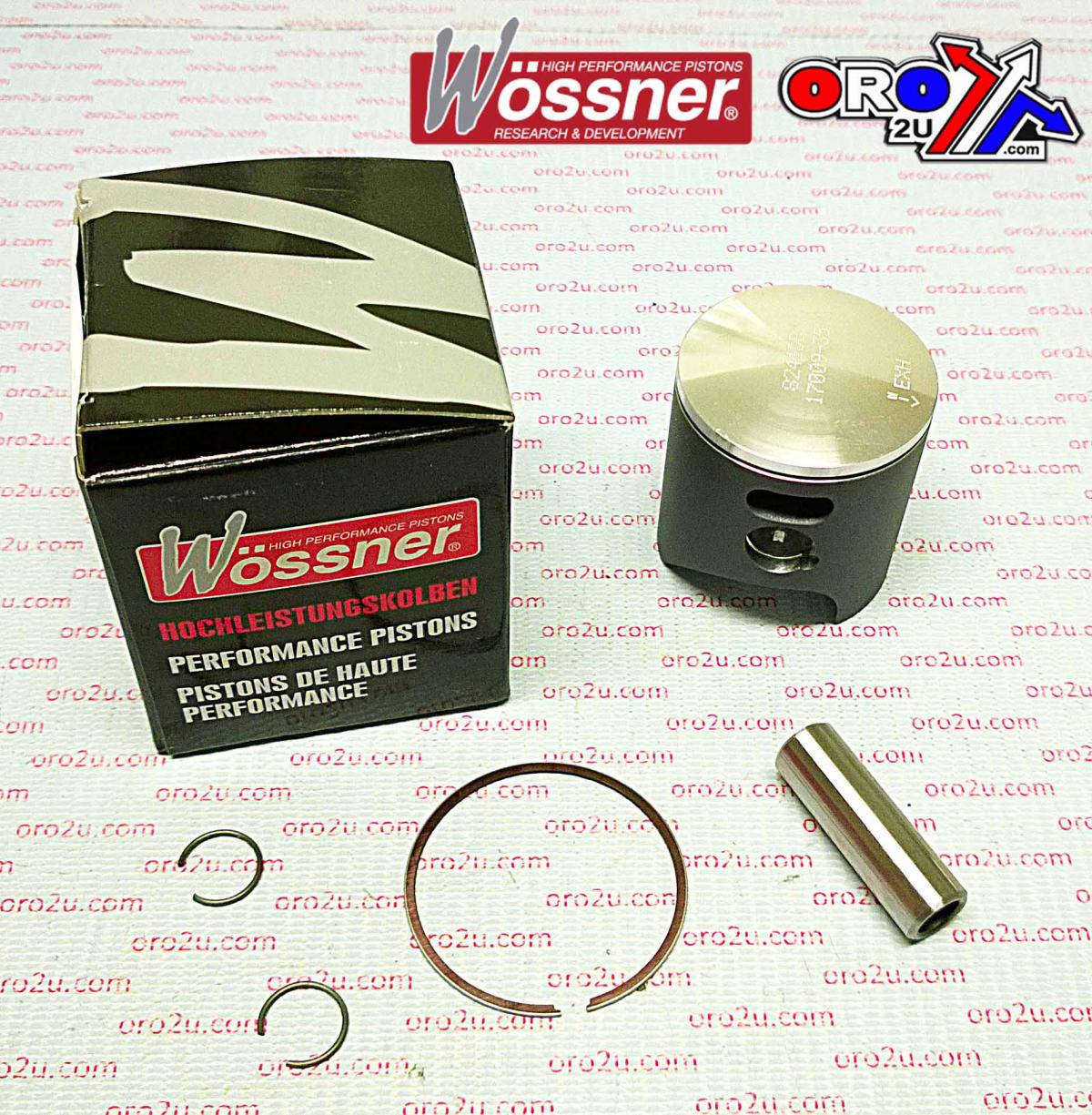

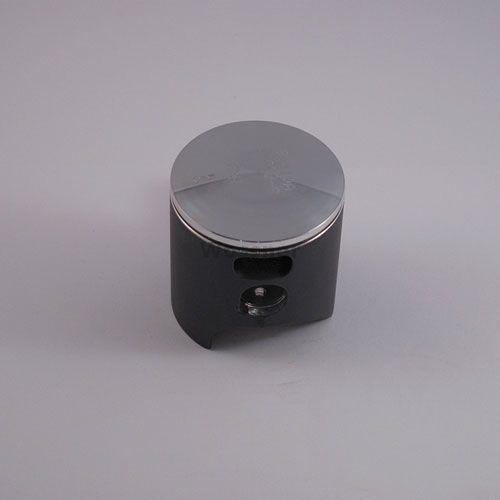

Piston Kit 09-15 KTM65 SX 45.0, Forged Wossner 8241DC

Piston Kit 09-15 KTM65 SX 45.0, Forged Wossner 8241DC. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 09-15 KTM65 SX 45.0, Forged Wossner 8241DC
• Part number: 56-W313.C.WO
• Brand: Wossner
• Forged piston for increased strength and durability
• Optimized heat transfer for improved performance
• Elliptical design ensures uniform bearing surface under heat expansion
• Even thrust load distribution to prevent piston collapse
• Manufactured in Germany
• Bore Size: 45.04mm (44.98mm)
• Part Number: 8241DC
• Lock Part Number: CW12
• Pin Part Number: WP091
• Ring Set Part Number: RSB4500
• Displacement: 63 cm³
• Stroke: 40.80mm
• Clearance: 0.04mm
• Compression Ratio: 2-stroke
• Compression Height: 21.60mm

Vehicle fitment

Applications listed in the supplier fitment data:

• HUSQVARNA TC 65cc — 2017–2020
• KTM SX 65cc — 2009–2018
• HUSQVARNA TC 65cc — 2017–2021
• KTM SX 65cc — 2009–2021
• HUSQVARNA TC 65cc — 2017–2019
• KTM SX 65cc — 2009–2019
• HUSQVARNA TC 65cc — 2017–2018
• KTM XC 65cc — 2009–2021
• KTM SX 65cc — 2009–2017
• KTM XC 65cc — 2009–2019
• KTM XC 65cc — 2009–2018
• KTM XC 65cc — 2009–2015

Match your exact make, model, year and specification before ordering.
