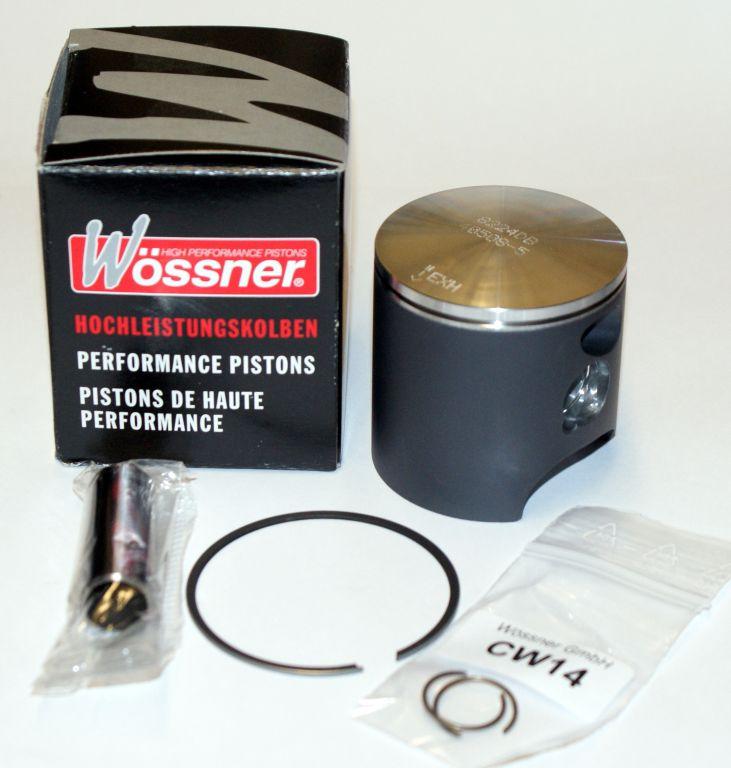

Piston Kit KTM 105 SX Xc 52.00, Forged Wossner 8224DC 03-08

Piston Kit KTM 105 SX Xc 52.00, Forged Wossner 8224DC 03-08. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit KTM 105 SX Xc 52.00, Forged Wossner 8224DC 03-08
• Part number: 56-W314.C.WO
• Brand: Wossner
• Forged piston for increased strength and durability
• Single-ring design for reduced friction and improved performance
• Optimized heat transfer for enhanced efficiency
• Elliptical design ensures uniform bearing surface under heat expansion
• Even thrust load distribution to prevent piston collapse
• Manufactured in Germany
• Bore Size: 52.02mm (51.96mm)
• Part Number: 8224DC
• Lock Part Number: CW14
• Pin Part Number: WP058
• Ring Set Part Number: RSB5200
• Rod Part Number: P2006
• Displacement: 104 cm³
• Stroke: 49.00mm
• Clearance: 0.06mm
• Compression Ratio: 2-stroke
• Compression Height: 24.00mm

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM XC 105cc — 2008–2009
• KTM SX 105cc — 2004–2011
• KTM SX 105cc — 2004–2016
• KTM SX 105cc — 2004–2014

Match your exact make, model, year and specification before ordering.
