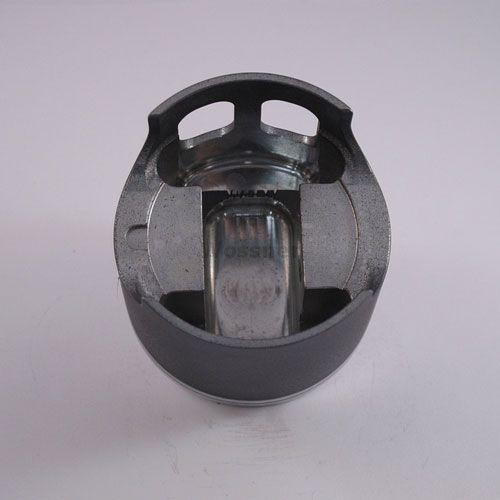

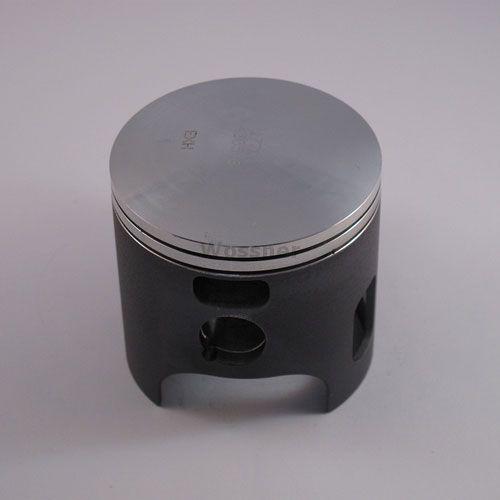

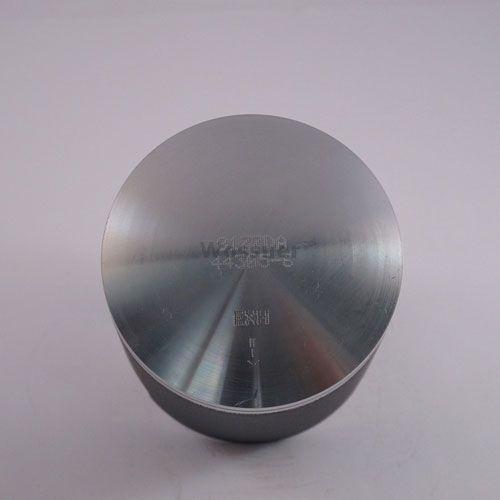

Piston Kit 76-81 IT175 67.00, Forged Wossner 8177D100

Piston Kit 76-81 IT175 67.00, Forged Wossner 8177D100. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 76-81 IT175 67.00, Forged Wossner 8177D100
• Part number: 56-W374.100.WO
• Brand: Wossner
• Oversized forged piston (+1.00mm) for increased durability
• Elliptical design for even thrust load distribution
• Optimized heat transfer to cylinder walls
• Manufactured in Germany for superior quality
• Bore Size: 67.00mm
• Standard Bore: 66.94mm
• Displacement: 172 cm³
• Stroke: 50.00mm
• Clearance: 0.06mm
• Compression Ratio: 2-Stroke
• Compression Height: 30.00mm

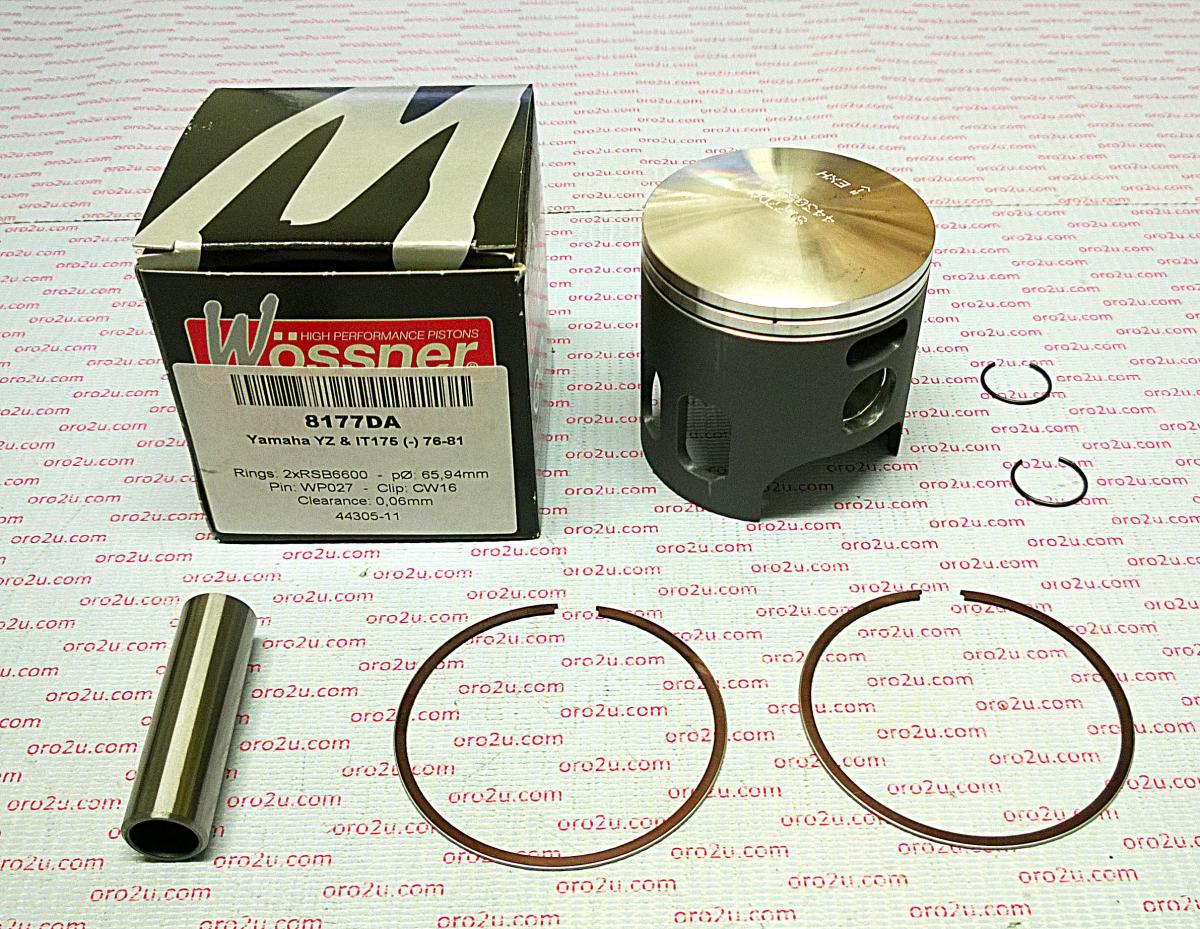

• Cross-Reference OEM Part Numbers
• Piston Part Number: 8177D100
• Lock Part Number: CW16
• Pin Part Number: WP027
• Ring Set Part Number: RSB6700 x 2

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YZ 175cc — 1976–1981
• YAMAHA IT 175cc — 1976–1981

Match your exact make, model, year and specification before ordering.
