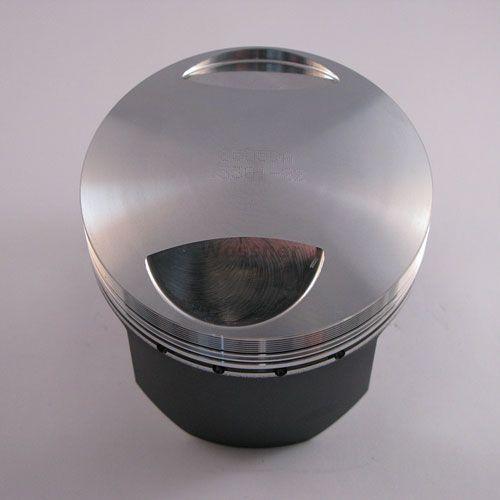

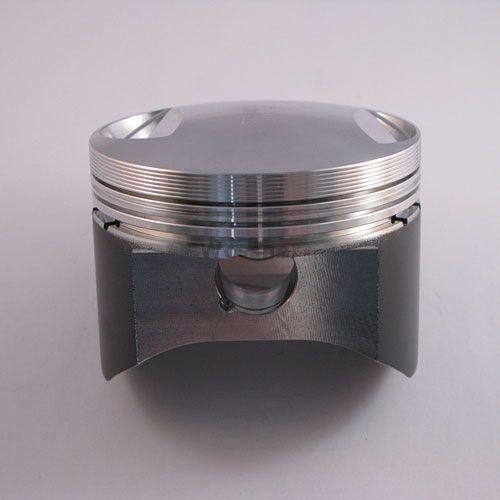

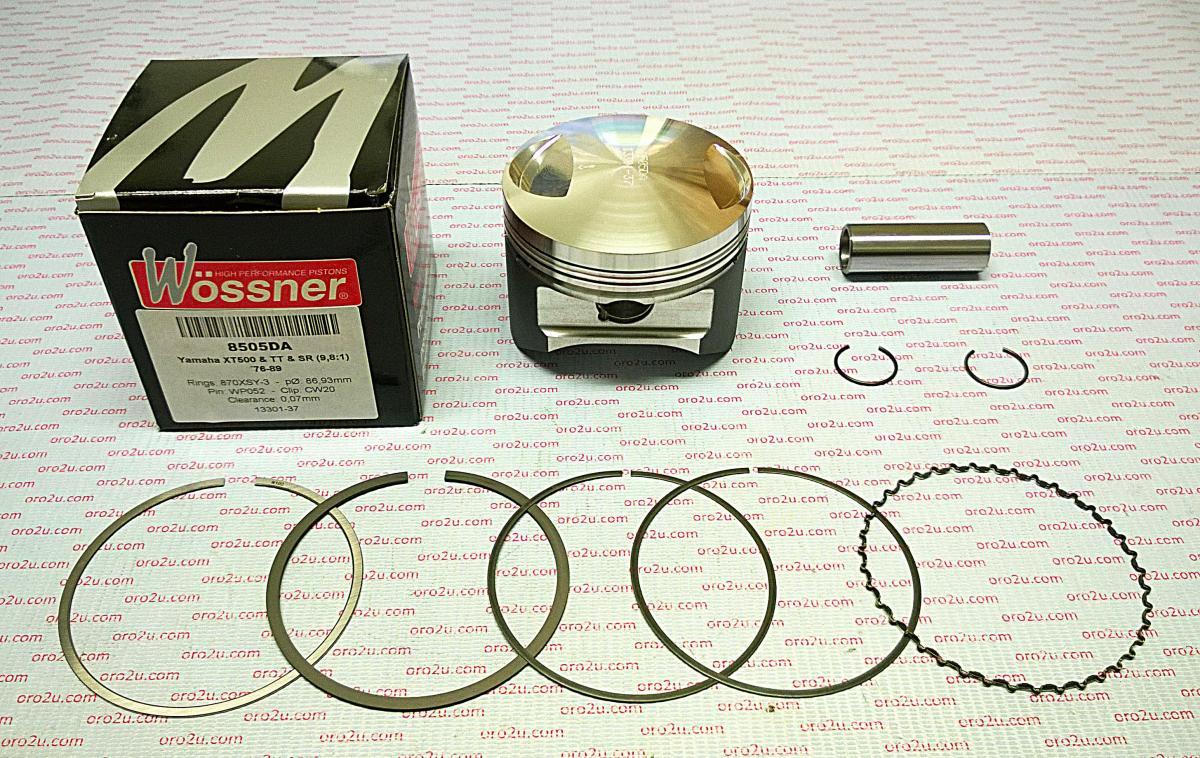

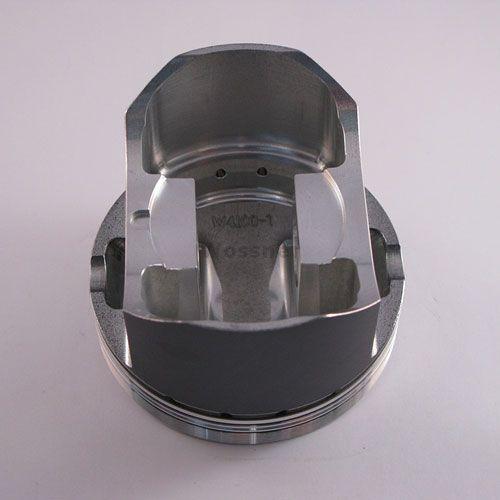

Piston Kit Xt Tt Sr 500 90.00, Forged Wossner 8505D300

Piston Kit Xt Tt Sr 500 90.00, Forged Wossner 8505D300. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit Xt Tt Sr 500 90.00, Forged Wossner 8505D300
• Part number: 56-W4045+300
• Brand: Wossner
• Forged construction for enhanced durability and strength
• Optimized heat transfer for improved performance
• Elliptical design for uniform bearing surface and reduced wear
• Designed for 4-stroke engines
• Bore Size: 90.00 mm
• Actual Bore: 89.93 mm
• Stroke: 84.00 mm
• Clearance: 0.07 mm
• Compression Height: 29.00 mm
• Dome Volume: +13.70 cm³
• Compression Ratio: 9.80:1 (OEM: 9.00:1)
• Displacement: 449 cm³
• Made in Germany
• Cross-Reference OEM Part Numbers
• Wossner Part No.: 8505D300
• Lock P/N: CW20
• Pin P/N: WP052
• Ring Set P/N: 900XSY

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA TT 500cc — 1976–1981
• YAMAHA XT 500cc — 1976–1981
• YAMAHA XT 500cc — 1976–1989
• YAMAHA TT 500cc — 1976–1989
• YAMAHA SR 500cc — 1976–1989
• YAMAHA SR 500cc — 1976–1981

Match your exact make, model, year and specification before ordering.
