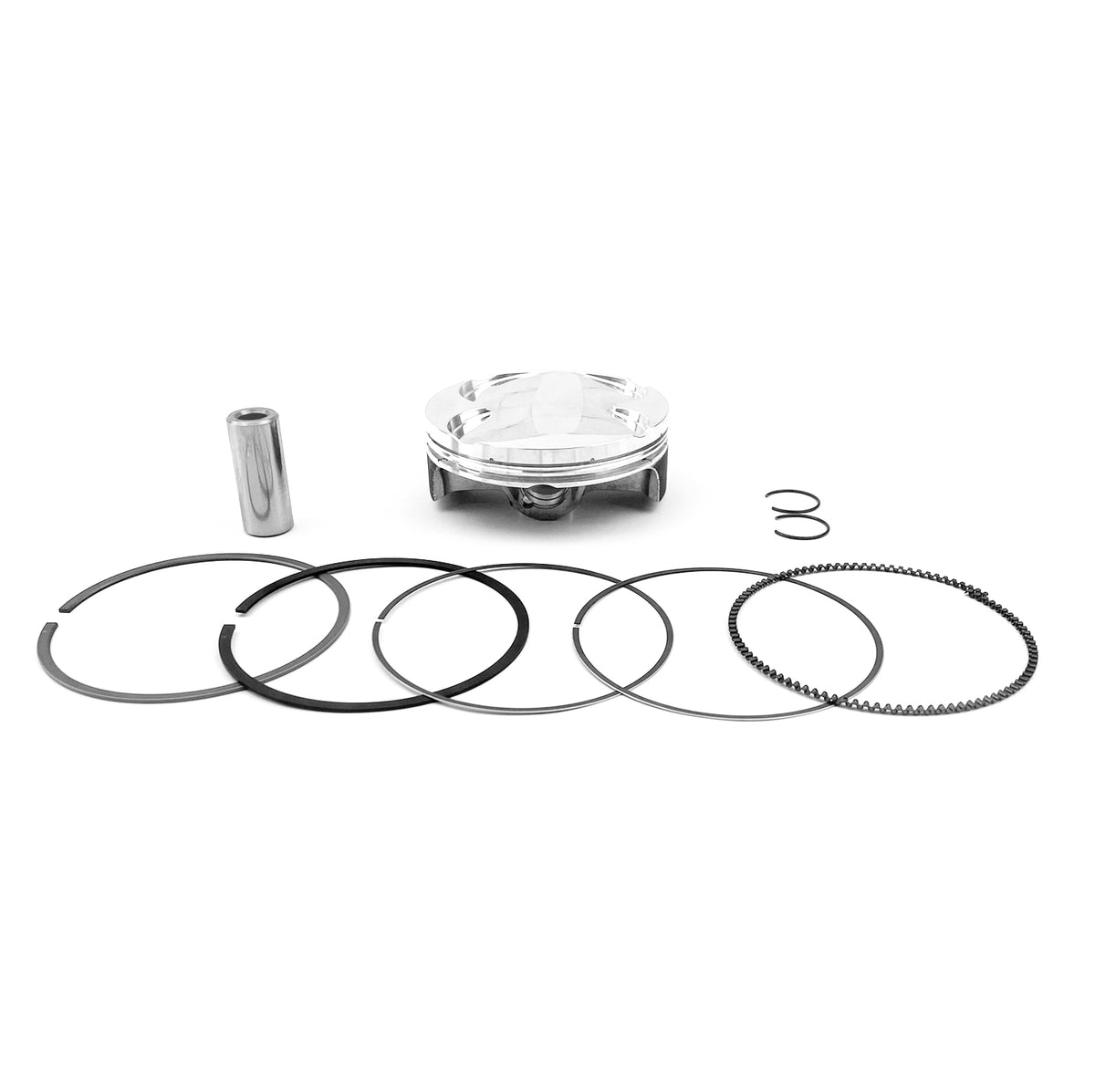

Piston Kit 2023 KTM/Husqvarna 250 81mm, Wossner 4077DB

Piston Kit 2023 KTM/Husqvarna 250 81mm, Wossner 4077DB. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 2023 KTM/Husqvarna 250 81mm, Wossner 4077DB
• Part number: 56-W4077.B.WO
• Brand: Wossner
• PISTON KIT 81mm BORE 80.96mm WOSSNER 4077DB (STD)
• KTM
• SX-F 250 2023
• XC-F 250 2023
• HUSQVARNA
• FC 250 2023
• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.
• Part No. 56-W4077.B.WO (www.fdyperformance.com)
• WOSSNER 4077DB PISTON KIT, BORE 81.00mm
• B GRADE PISTON 80.96mm
• COMP RATIO: 14.40:1
• RINGS RIK81.00
• PISTON PIN WP070-SP
• DOUBLE BRIDGE FORGING
• 2618-T6 ALLOY
• GAS PORTED
• PISTON WEIGHT 150.9g

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
