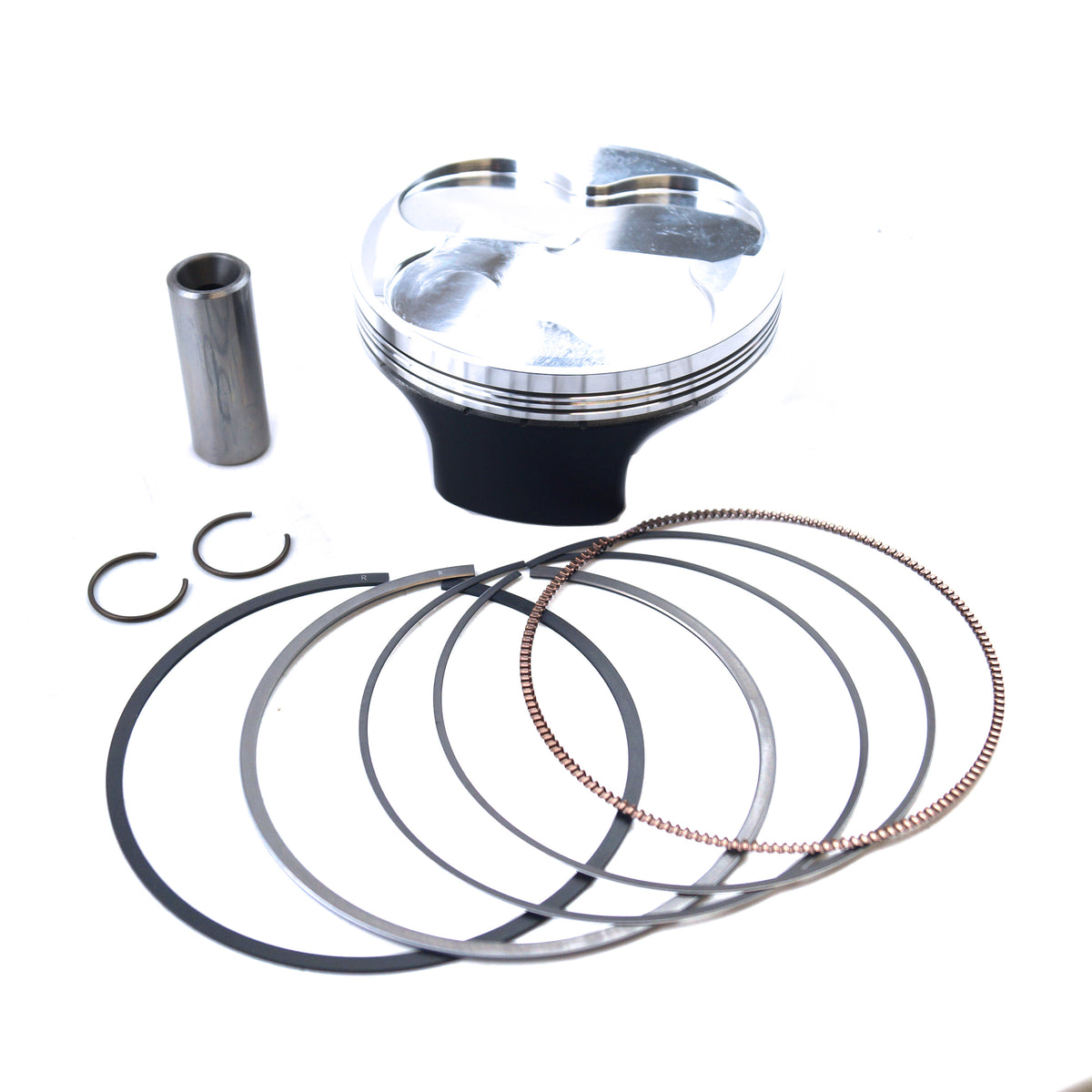

Piston Kit 2023 Yamaha YZF 450, Wossner 4086DC Pro Series

Piston Kit 2023 Yamaha YZF 450, Wossner 4086DC Pro Series. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 2023 Yamaha YZF 450, Wossner 4086DC Pro Series
• Part number: 56-W4086.C.WO
• Brand: Wossner
• PRO SERIES PISTON KIT 97mm BORE 96.98mm WOSSNER 4086DC (STD)
• YAMAHA
• YZF 450 2023
• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.
• Part No. 56-W4086.C.WO (www.fdyperformance.com)
• WOSSNER 4086DC PISTON KIT, BORE 97.00mm
• A GRADE PISTON 96.98mm
• CLEARANCE 0.04mm
• STROKE 60.80mm
• COMPRESSION HEIGHT 24mm
• COMPRESSION RATIO 13.50:1
• THEORETICAL WEIGHT 267.50g
• RINGS RIK97.00
• PISTON PIN WP072-SP
• PISTON CLIPS CW18

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
