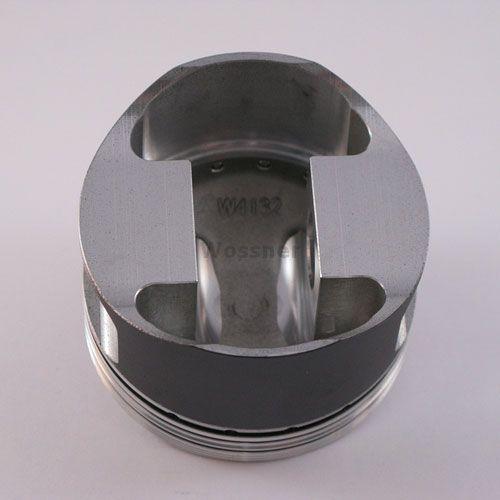

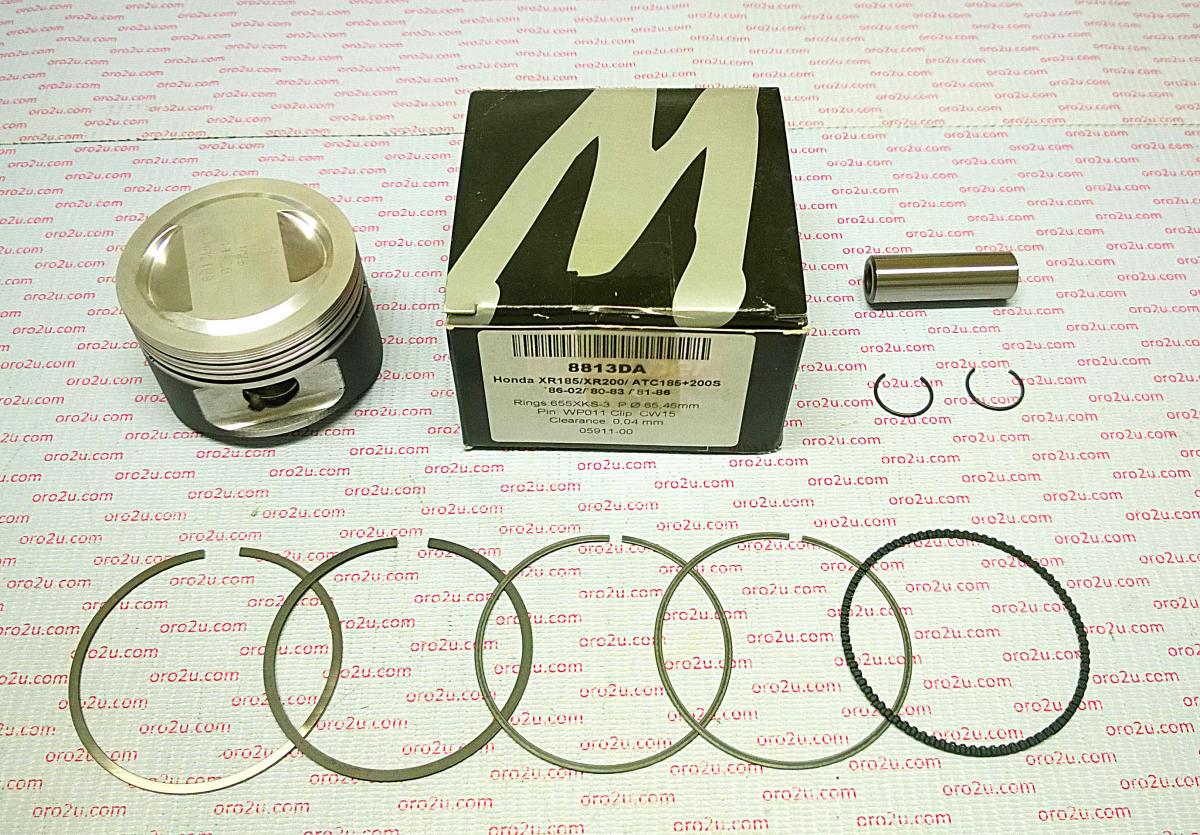

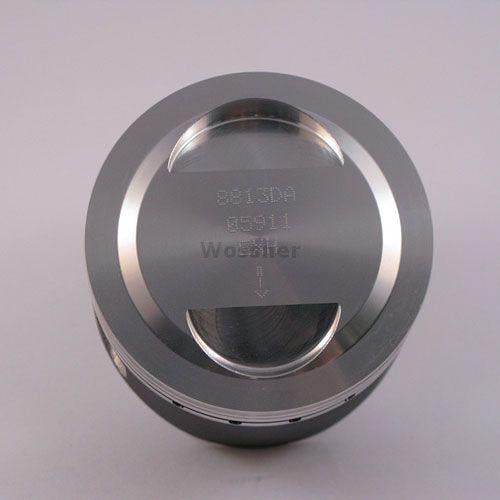

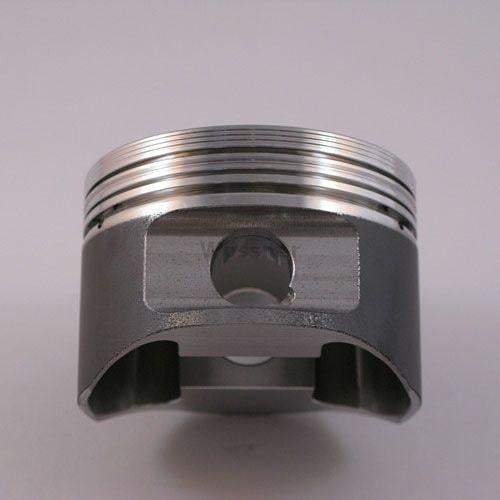

Piston Kit XR200 ATC200 80-02, Wossner 8813D100 66.50

Piston Kit XR200 ATC200 80-02, Wossner 8813D100 66.50. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit XR200 ATC200 80-02, Wossner 8813D100 66.50
• Part number: 56-W4156.100.WO
• Brand: Wossner
• Forged construction for enhanced durability and strength
• Optimized heat transfer for improved performance
• Elliptical design for uniform bearing surface and reduced wear
• Designed for 4-stroke engines
• Bore Size: 66.50 mm
• Actual Bore: 66.46 mm
• Stroke: 57.80 mm
• Clearance: 0.04 mm
• Compression Height: 25.50 mm
• Dome Volume: +1.40 cm³
• Compression Ratio: 10.00:1 (OEM)
• Displacement: 195 cm³
• Made in Germany
• Cross-Reference OEM Part Numbers
• Wossner Part No.: 8813D100
• Lock P/N: CW15
• Pin P/N: WP011
• Ring Set P/N: 665XKS

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA XR 200cc — 1980–1984
• HONDA XR 200cc — 1986–2002
• HONDA XR 200cc — 1980–1983
• HONDA TRX 200cc — 1984
• HONDA XR R 200cc — 1986–2002
• HONDA XR R 200cc — 1981–2002
• HONDA TRX D 200cc — 1990–1997
• HONDA ATC 200cc — 1986–1987
• HONDA XR R 200cc — 1980–1983
• HONDA ATC SX 200cc — 1981–1986
• HONDA XR 185cc — 1986–2002
• HONDA TRX SX 200cc — 1984
• HONDA TRX RECON 250cc — 1990–1997
• HONDA ATC 185cc — 1980–1984

Match your exact make, model, year and specification before ordering.
