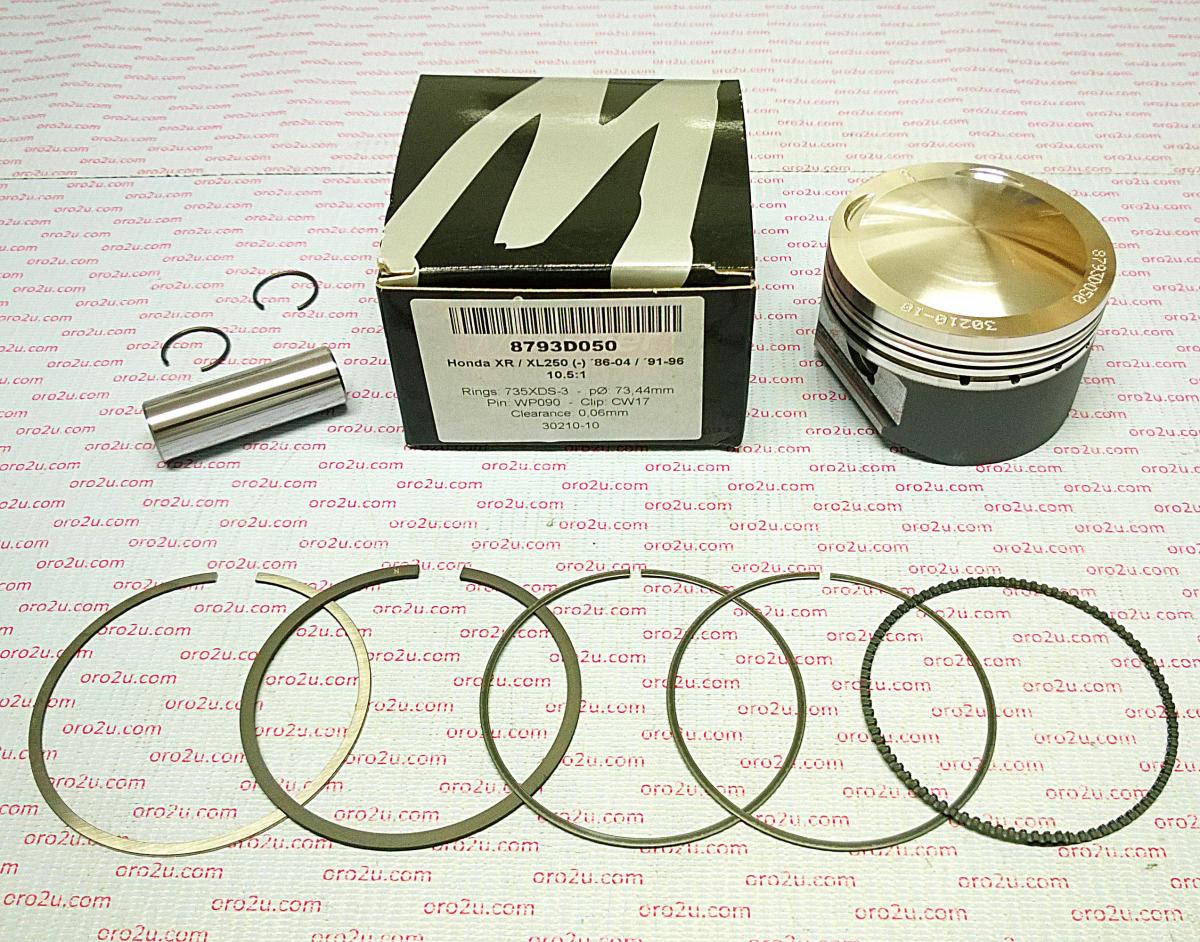

Piston Kit 86-04 XR250 73.50, Forged Wossner 8793D050

Piston Kit 86-04 XR250 73.50, Forged Wossner 8793D050. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 86-04 XR250 73.50, Forged Wossner 8793D050
• Part number: 56-W4466+050.WO
• Brand: Wossner
• Forged construction for enhanced durability and strength
• Optimized heat transfer for improved performance
• Elliptical design for uniform bearing surface and reduced wear
• Designed for 4-stroke engines
• Bore Size: 73.50 mm (+0.50 mm oversize)
• Actual Bore: 73.44 mm
• Stroke: 59.50 mm
• Clearance: 0.06 mm
• Compression Height: 25.00 mm
• Dome Volume: +6.00 cm³
• Compression Ratio: 10.50:1
• OEM Compression Ratio: 9.30:1
• Made in Germany
• Cross-Reference OEM Part Numbers
• Wossner Part No.: 8793D050
• Lock P/N: CW17
• Pin P/N: WP090
• Ring Set P/N: 735XDS
• OEM Piston: 13101-KCE-670
• Oversize 0.25 Piston: 13102-KCE-305
• Oversize 0.50 Piston: 13103-KCE-305
• Standard Ring Set: 13011-KCZ-305
• Oversize 0.25 Ring Set: 13012-KCE-305
• Oversize 0.50 Ring Set: 13013-KCE-305
• Piston Pin: 13111-KK0-000

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA XR L 250cc — 1991–1996
• HONDA XR 250cc — 1986–2004
• HONDA XR R 250cc — 1986–2004
• KAWASAKI KX 80cc — 1979–1983
• HONDA XR 250cc — 1986–1999

Match your exact make, model, year and specification before ordering.
