Piston Kit 80-82 YZ250 71.00, Forged Wossner 8180D100

Piston Kit 80-82 YZ250 71.00, Forged Wossner 8180D100. Find the product specifications and compatibility information below.

Product details

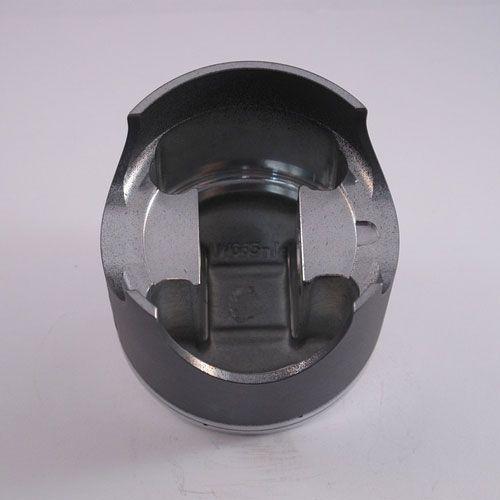

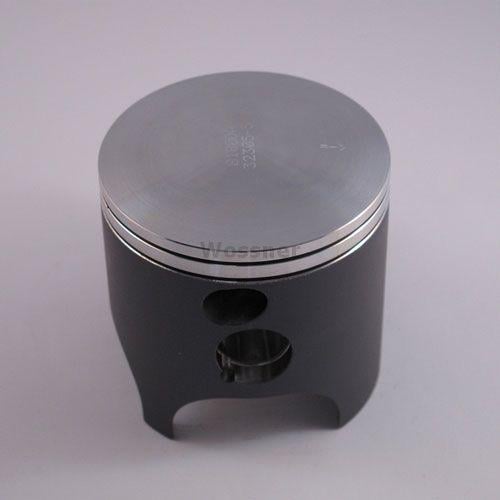

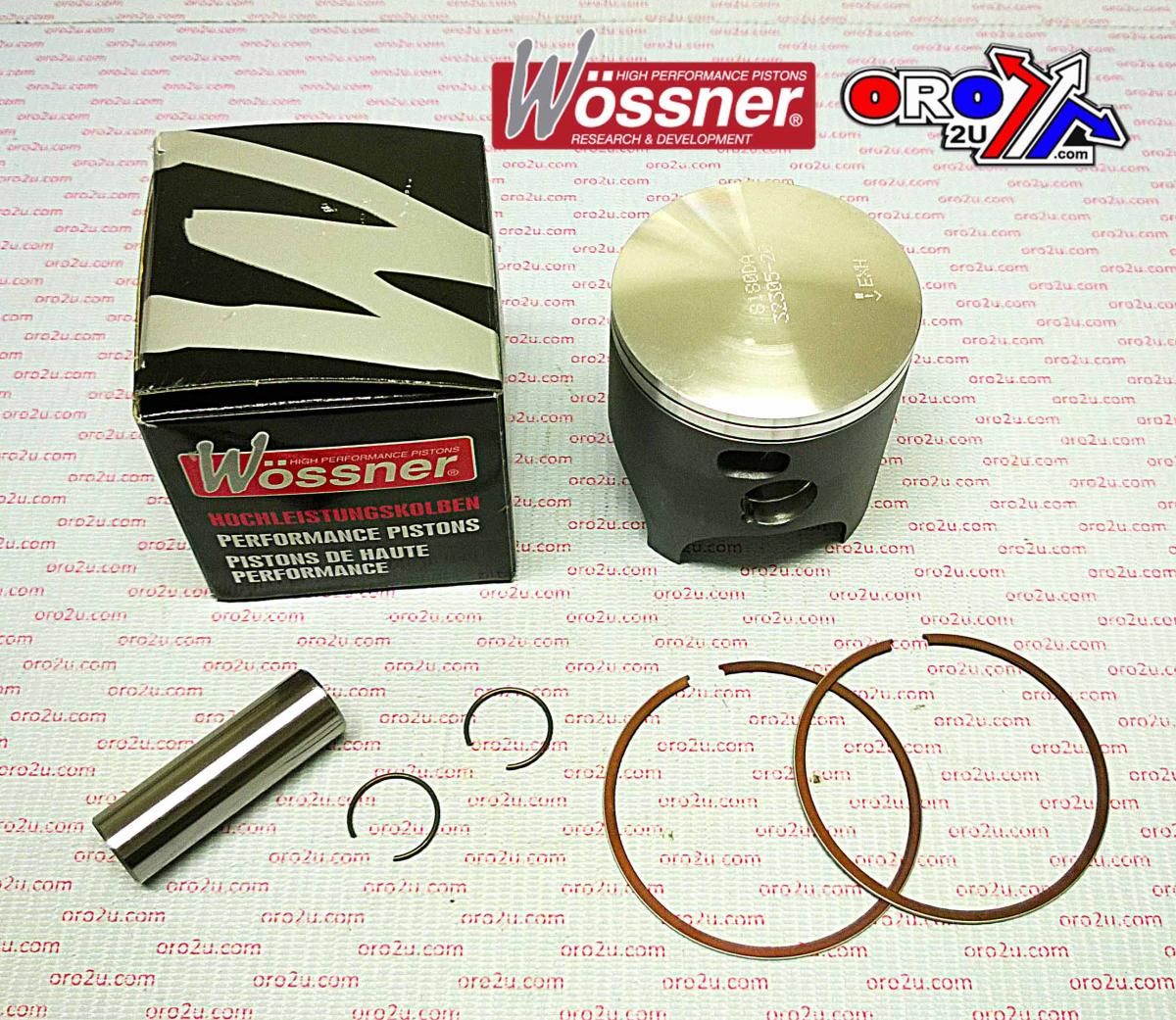

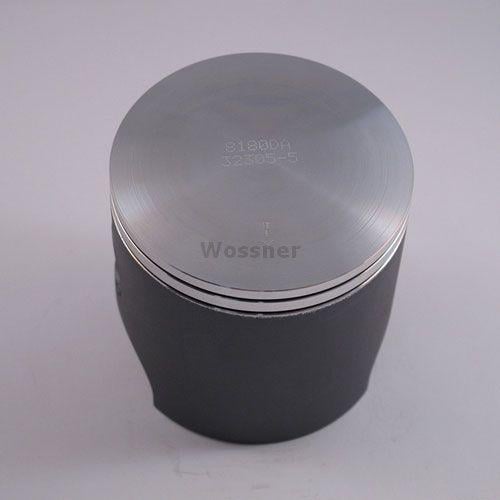

• Product: Piston Kit 80-82 YZ250 71.00, Forged Wossner 8180D100
• Part number: 56-W452+100.WO
• Brand: Wossner
• Forged construction for enhanced durability and strength
• Optimized heat transfer for improved performance
• Elliptical design for uniform bearing surface and reduced wear
• Designed for 2-stroke engines
• Bore Size: 71.00 mm (+1.00 mm oversize)
• Actual Bore: 70.94 mm
• Stroke: 64.00 mm
• Clearance: 0.06 mm
• Compression Height: 33.00 mm
• Compression Ratio: 2-stroke
• Displacement: 246 cm³
• Made in Germany
• Cross-Reference OEM Part Numbers
• Wossner Part No.: 8180D100
• Lock P/N: CW18
• Pin P/N: WP033
• Ring Set P/N: RSB7100 x 2
• Piston Kit (Standard): 5X5-11630-00-00
• Piston (Standard): 5X5-11631-00-94
• Piston Ring Set (Standard): 5X5-11601-00-00
• Piston Pin: 214-11633-00-00
• Circlip: 93450-19052-00

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA IT 250cc — 1981–1982
• YAMAHA YZ 250cc — 1980–1982

Match your exact make, model, year and specification before ordering.
