Piston Kit 97-14 XR650 101.00, Forged Wossner 8564D100 NX650

Piston Kit 97-14 XR650 101.00, Forged Wossner 8564D100 NX650. Find the product specifications and compatibility information below.

Product details

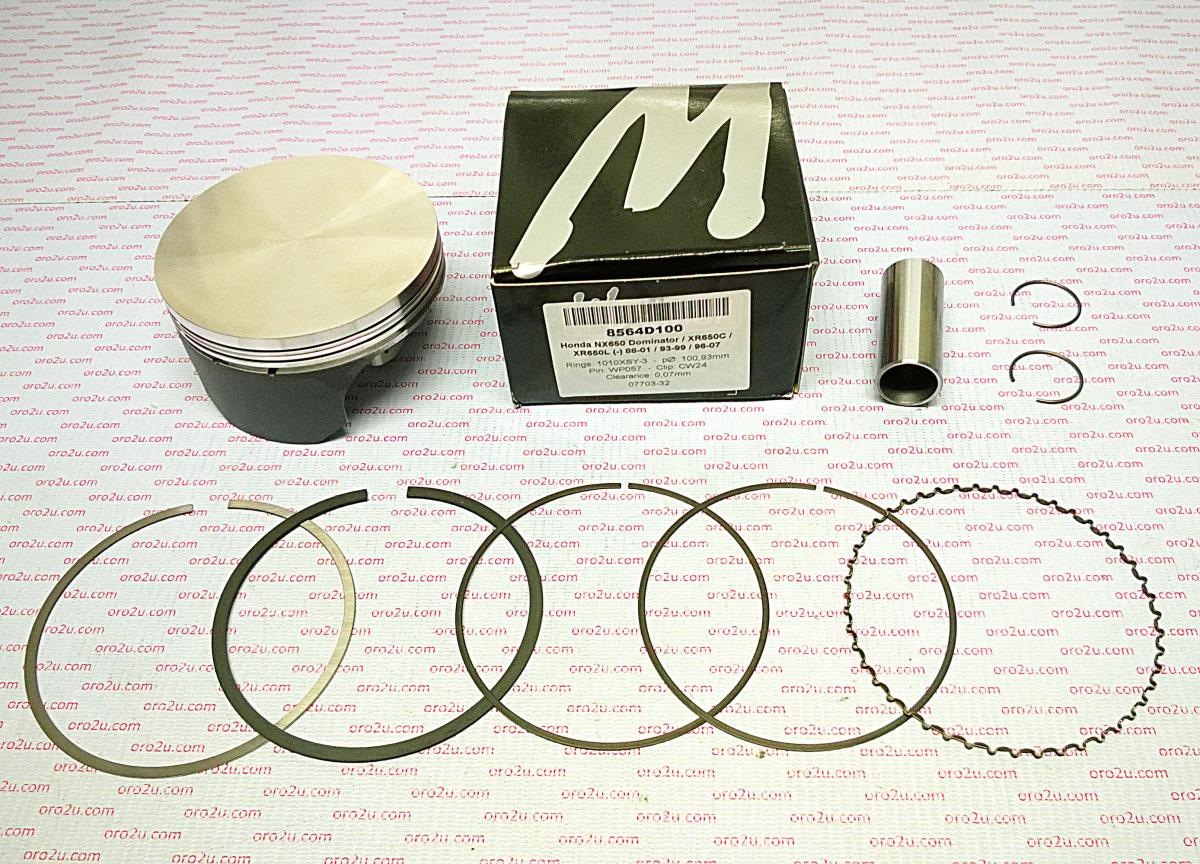

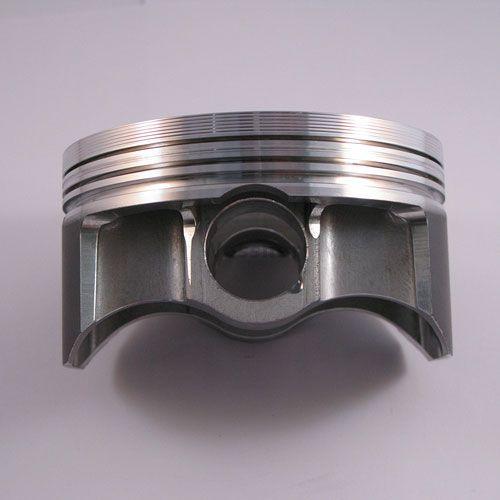

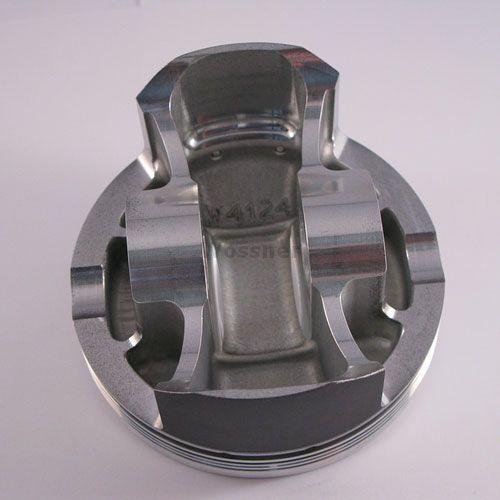

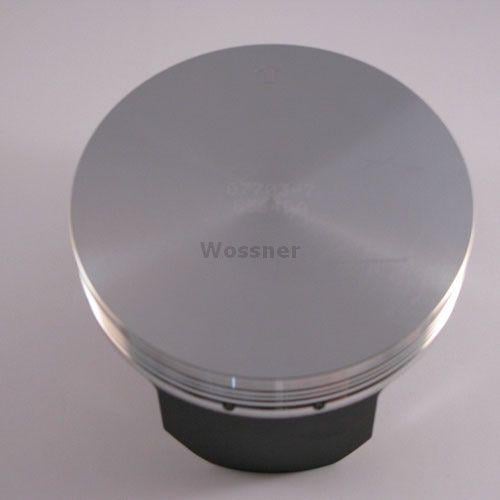

• Product: Piston Kit 97-14 XR650 101.00, Forged Wossner 8564D100 NX650
• Part number: 56-W4562.100.WO
• Brand: Wossner
• Forged construction for enhanced durability and strength
• Optimized heat transfer for improved performance
• Elliptical design for uniform bearing surface and reduced wear
• Designed for 4-stroke engines
• Bore Size: 101 mm (+1.00 mm Oversize)
• Actual Bore: 100.93 mm
• Stroke: 82.00 mm
• Clearance: 0.07 mm
• Compression Height: 29.00 mm
• Dome Volume: +0.00 cm³
• Compression Ratio: OEM (8.30:1)
• Displacement: 644 cm³
• Made in Germany
• Cross-Reference OEM Part Numbers
• Wossner Part No.: 8564D100
• Lock P/N: CW24
• Pin P/N: WP057
• Ring Set P/N: 1010XSY

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA XR L 650cc — 1993–2018
• HONDA XR L 650cc — 1993–2020
• HONDA XR L 650cc — 1993–2017
• HONDA NX 650cc — 1993–2002
• HONDA XR L 650cc — 1996–2019
• HONDA XR C 650cc — 1993–1999
• HONDA XR C 650cc — 1993–2019
• HONDA XR C 650cc — 1993–2020
• HONDA NX DOMINATOR 650cc — 1988–2004
• HONDA NX 650cc — 1993–1998

Match your exact make, model, year and specification before ordering.
