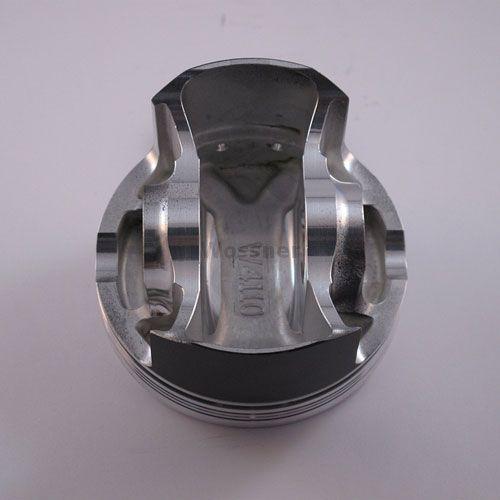

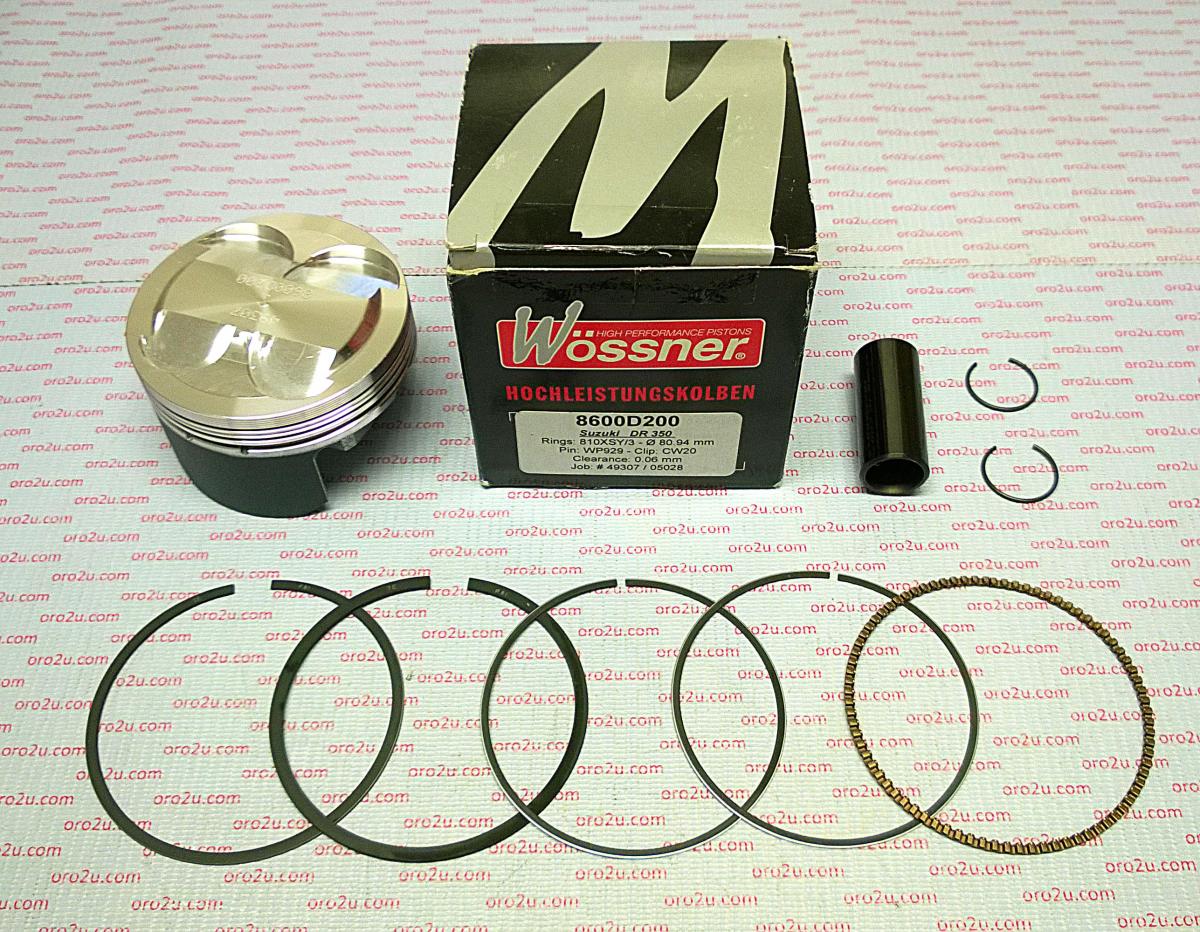

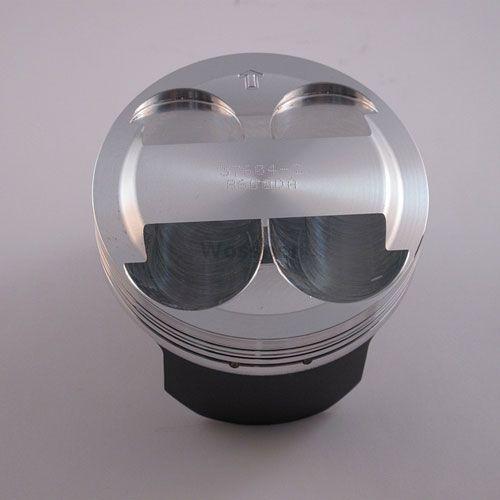

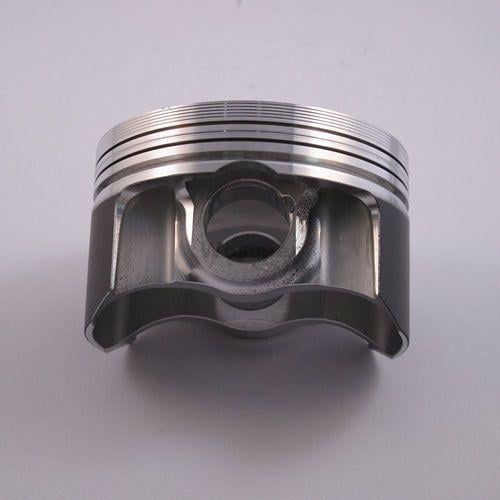

Piston Kit 90-99 DR350 81.00, Forged Wossner 8600D200

Piston Kit 90-99 DR350 81.00, Forged Wossner 8600D200. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 90-99 DR350 81.00, Forged Wossner 8600D200
• Part number: 56-W4576_200.WO
• Brand: Wossner
• Forged construction for superior strength and durability
• Optimized heat transfer to cylinder walls
• Elliptical design ensures uniform bearing surface under heat expansion
• Reduces localized pressure and evenly distributes thrust loads
• Prevents piston collapse under high-stress conditions
• Bore Size: 81.00mm
• Wössner Part Number: 8600D200
• Lock Part Number: CW20
• Pin Part Number: WP029
• Ring Set Part Number: 810XSY
• Displacement: 349 cm³
• Stroke: 71.20mm
• Clearance: 0.06mm
• Compression Ratio: OEM (9.50:1)
• Dome Volume: +3.50 cm³
• Compression Height: 25.00mm
• Cross-Reference OEM Part Numbers
• Not specified

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI DR SE 350cc — 1990–1999
• SUZUKI DR 350cc — 1990–1999

Match your exact make, model, year and specification before ordering.
