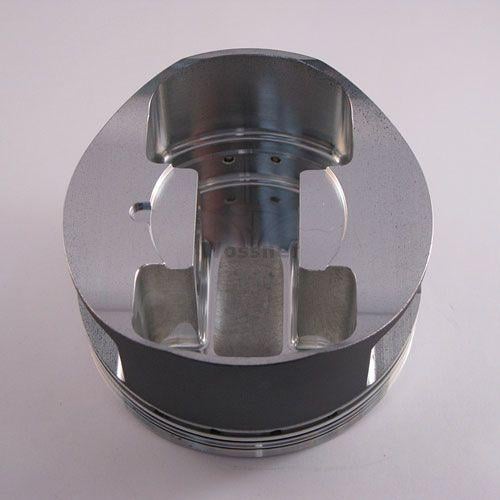

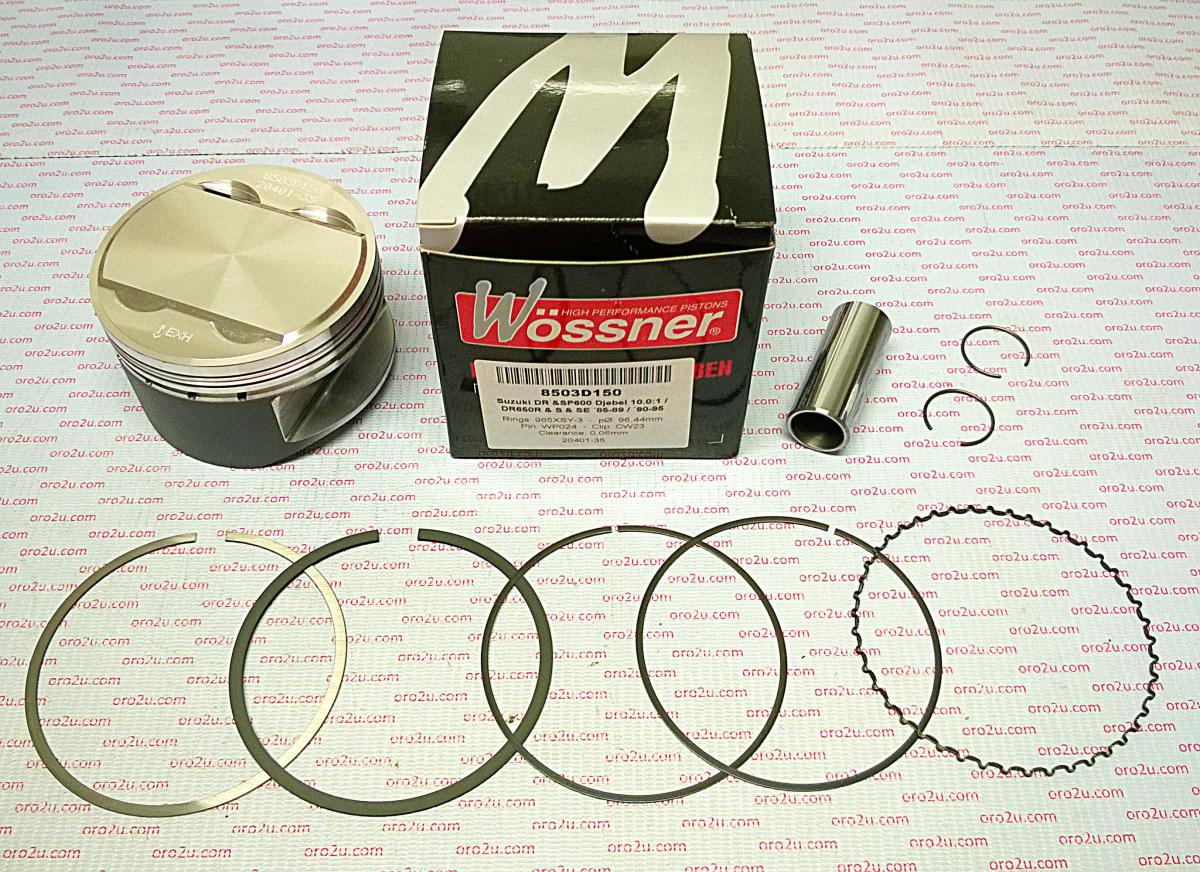

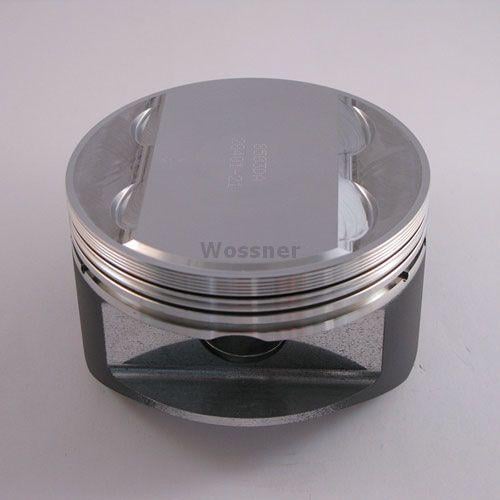

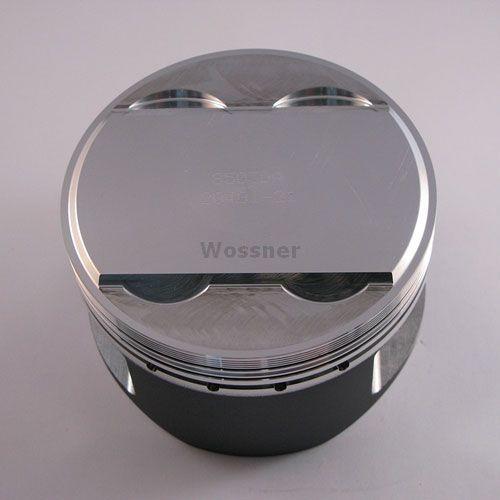

Piston Kit DR600 DR650 97.00, Forged Wossner 8503D200

Piston Kit DR600 DR650 97.00, Forged Wossner 8503D200. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit DR600 DR650 97.00, Forged Wossner 8503D200
• Part number: 56-W4597_200.WO
• Brand: Wossner
• Forged construction for superior strength and durability
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface under heat expansion
• Increased compression ratio for improved engine performance
• Made in Germany
• Bore: 97mm (96.94mm actual)
• Display: 589 cm³
• Stroke: 85.00mm
• Clearance: 0.06mm
• Wössner Compression Ratio: 10.00:1
• OEM Compression Ratio: 8.50:1
• Dome Volume: +6.10 cm³
• Compression Height: 29.90mm
• Theoretical Weight: [Not provided]
• Cross-Reference OEM Part Numbers
• Wössner Piston: 8503D200
• Lock: CW23
• Pin: WP024
• Ring Set: 970XSY

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI DR S 650cc — 1990–1995
• SUZUKI DR SE 650cc — 1990–1995
• SUZUKI DR R 650cc — 1990–1995
• SUZUKI SP 600cc — 1985–1989
• SUZUKI DR 600cc — 1985–1989

Match your exact make, model, year and specification before ordering.
