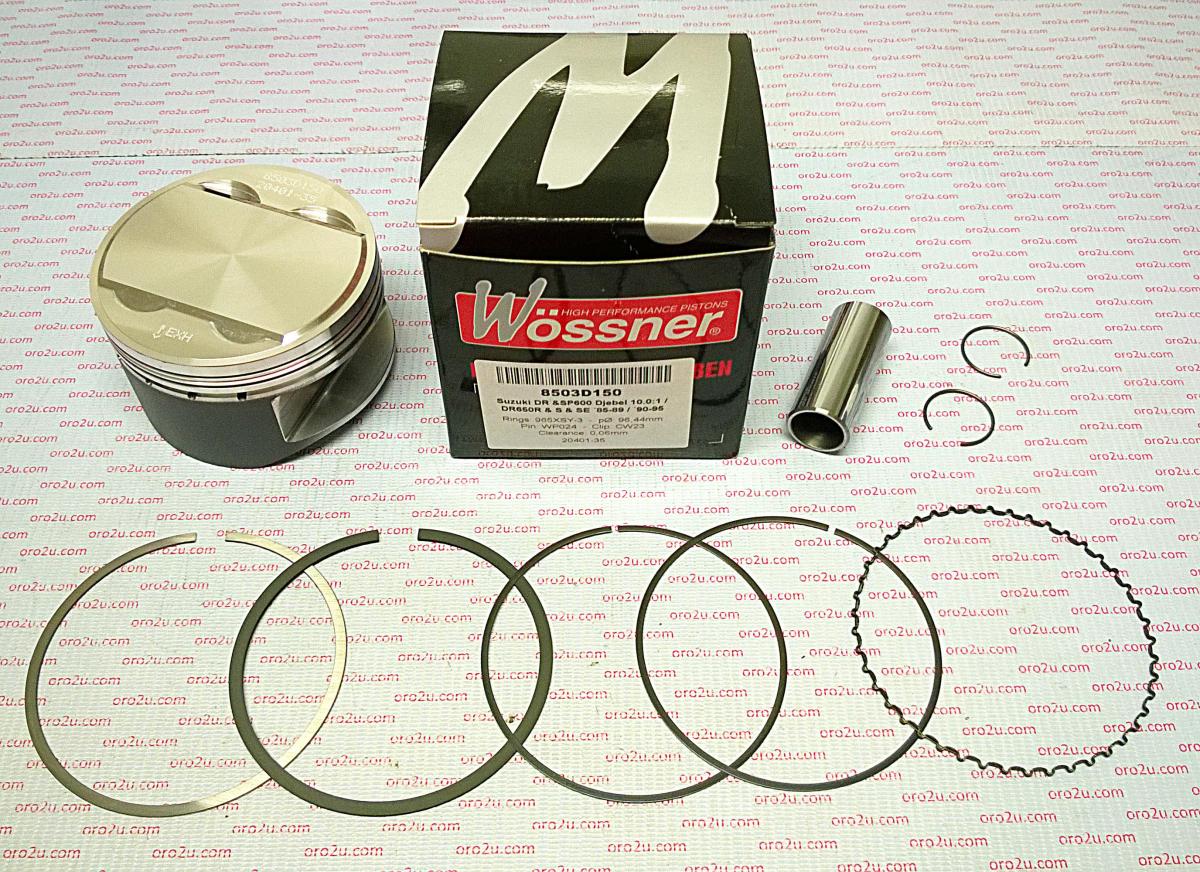

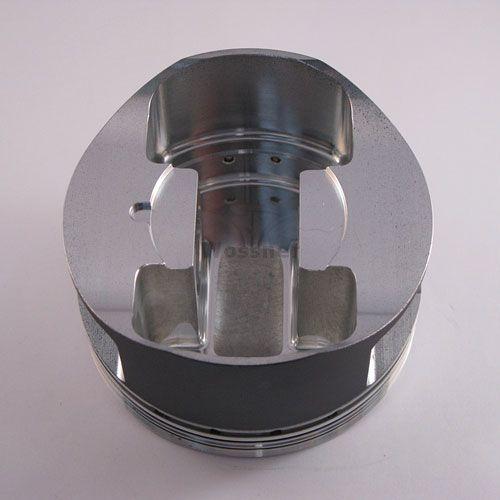

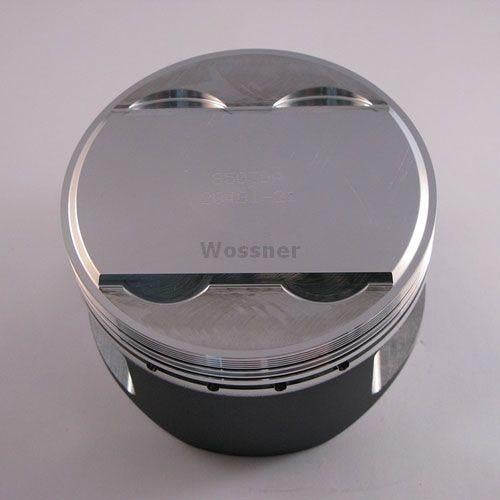

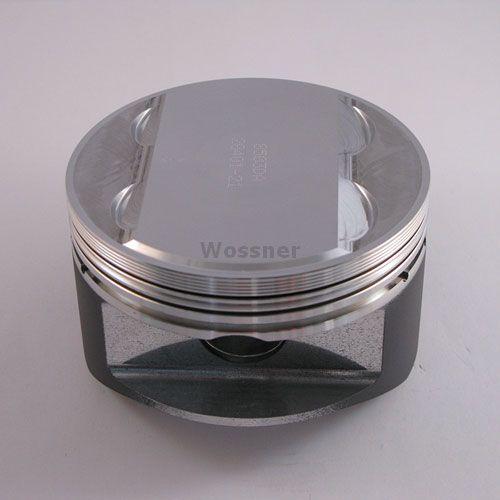

Piston Kit DR600 DR650 95.00, Forged Wossner 8503DA, 12111-15A00

Piston Kit DR600 DR650 95.00, Forged Wossner 8503DA, 12111-15A00. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit DR600 DR650 95.00, Forged Wossner 8503DA, 12111-15A00
• Part number: 56-W4597.A
• Brand: Wossner
• Forged construction for superior strength and durability
• Optimized heat transfer to cylinder walls
• Elliptical design ensures uniform bearing surface under heat expansion
• Reduces localized pressure and evenly distributes thrust loads
• Prevents piston collapse under high-stress conditions
• Bore Size: 95.00mm (Actual Size: 94.94mm)
• Wössner Part Number: 8503DA
• Lock Part Number: CW23
• Pin Part Number: WP024
• Ring Set Part Number: 950XSY
• Displacement: 589 cm³
• Stroke: 85.00mm
• Clearance: 0.06mm
• Compression Ratio: 10.00:1
• OEM Compression Ratio: 8.50:1
• Dome Volume: +6.10 cm³
• Compression Height: 29.90mm
• Cross-Reference OEM Part Numbers
• 12111-15A00

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI DR S 650cc — 1990–1995
• SUZUKI DR SE 650cc — 1990–1995
• SUZUKI DR R 650cc — 1990–1995
• SUZUKI SP 600cc — 1985–1989
• SUZUKI DR 600cc — 1985–1989

Match your exact make, model, year and specification before ordering.
