Piston Kit 99-08 Trx XR 85.00, Forged Wossner 8702DB 400

Piston Kit 99-08 Trx XR 85.00, Forged Wossner 8702DB 400. Find the product specifications and compatibility information below.

Product details

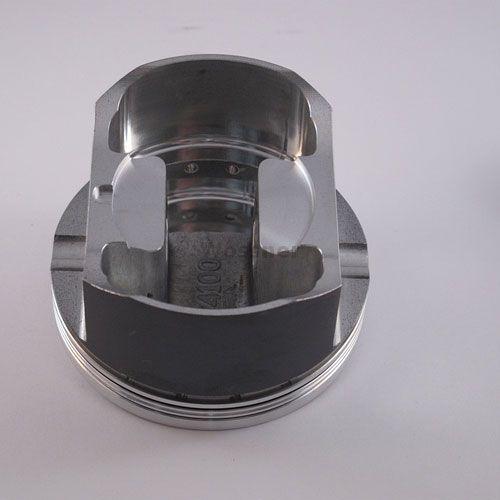

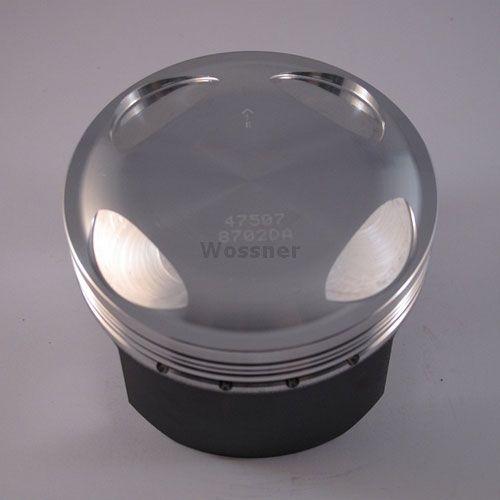

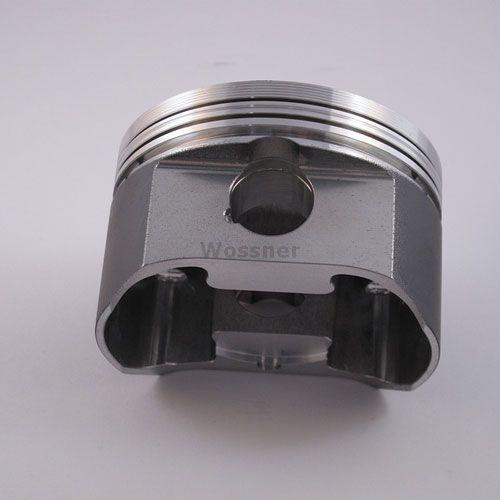

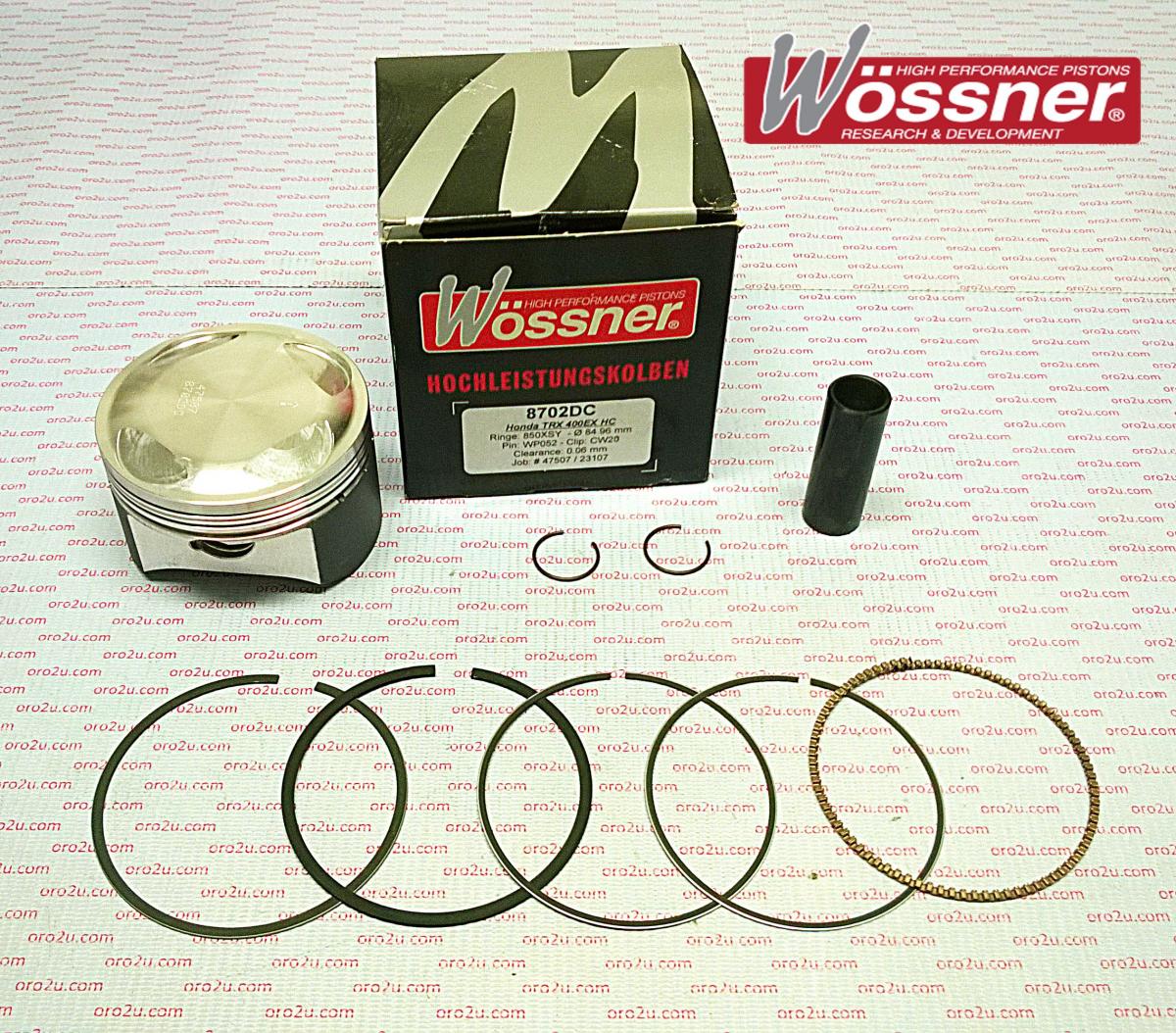

• Product: Piston Kit 99-08 Trx XR 85.00, Forged Wossner 8702DB 400
• Part number: 56-W4628.B.WO
• Brand: Wossner
• Forged construction for superior strength and durability
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface under heat expansion
• Increased compression ratio for improved engine performance
• Made in Germany
• Bore: 85.01mm (84.94mm actual)
• Display: 397 cm³
• Stroke: 70.00mm
• Clearance: 0.06mm
• Wössner Compression Ratio: 12.50:1
• OEM Compression Ratio: 10.00:1
• Dome Volume: +8.40 cm³
• Compression Height: 26.20mm
• Cross-Reference OEM Part Numbers
• Wössner Piston: 8702DB
• Lock: CW20
• Pin: WP052
• Ring Set: 850XSY
• Rod: P4021

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA XR 400cc — 1996–2004
• HONDA XR R 400cc — 1996–2004
• HONDA TRX X 400cc — 2009–2014
• HONDA TRX EX 400cc — 1999–2008
• HONDA TRX EX 400cc — 2009–2014

Match your exact make, model, year and specification before ordering.
