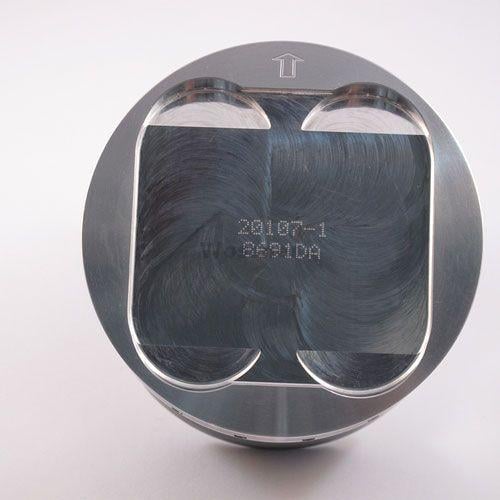

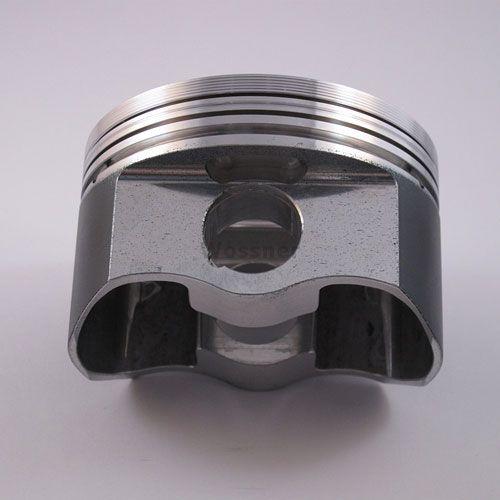

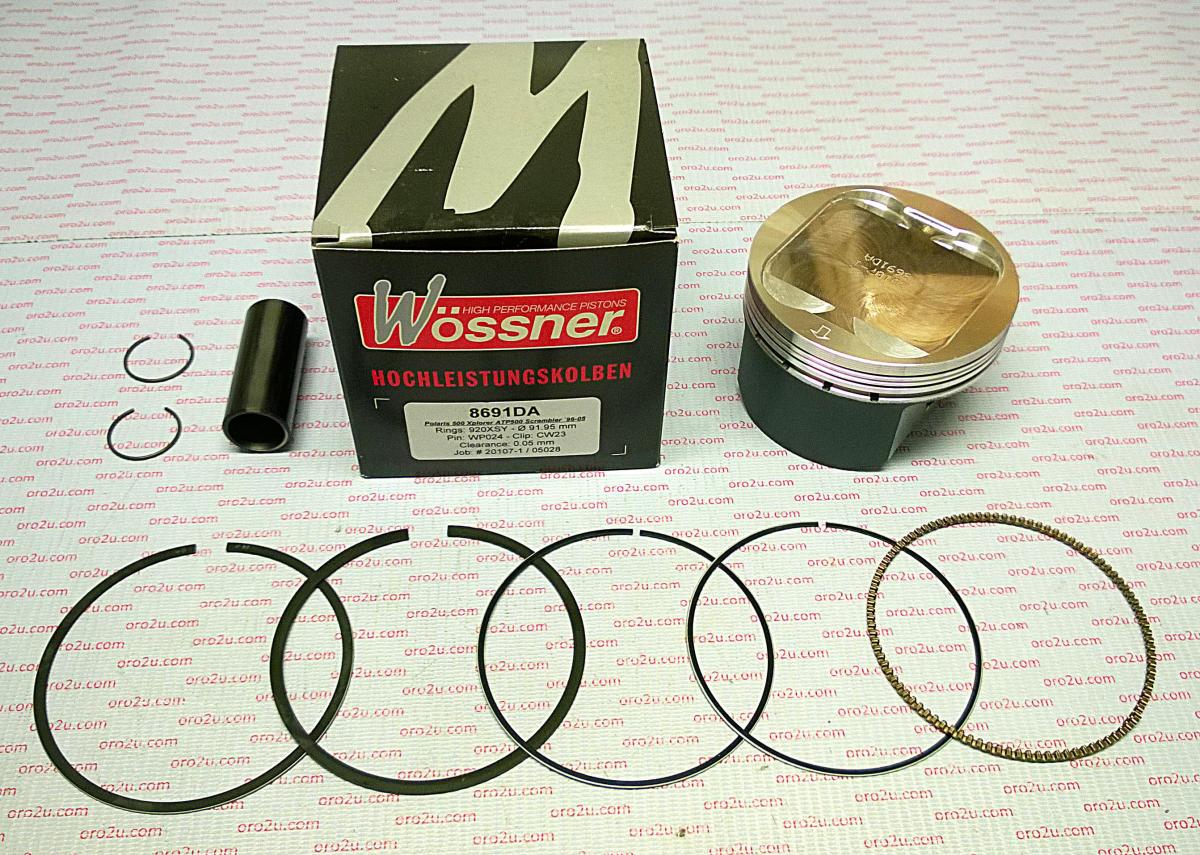

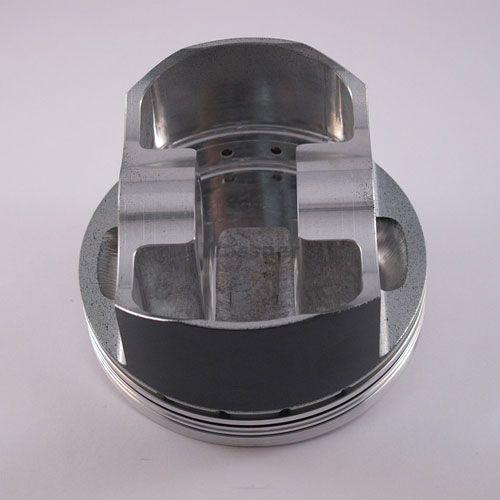

Piston Kit Polaris 500 92.00, Forged Wossner 8691DA 3087170

Piston Kit Polaris 500 92.00, Forged Wossner 8691DA 3087170. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit Polaris 500 92.00, Forged Wossner 8691DA 3087170
• Part number: 56-W4677+000.WO
• Brand: Wossner
• High-strength forged piston construction
• Optimized heat transfer for improved combustion efficiency
• Elliptical design for even thrust load distribution
• Manufactured in Germany
• Bore Size: 92mm
• Actual Bore Diameter: 91.95mm
• Compression Ratio: OEM
• OEM Compression Ratio: 10.20:1
• Displacement: 498cc
• Stroke: 75.00mm
• Clearance: 0.05mm
• Dome Volume: -9.20cm³
• Compression Height: 33.30mm
• Cross-Reference OEM Part Numbers
• Lock P/N: CW23
• Pin P/N: WP024
• Ring Set P/N: 920XSY
• OEM Part Numbers: 3087170, 4677M09200

Vehicle fitment

Applications listed in the supplier fitment data:

• POLARIS ATP 500cc — 2004–2005
• POLARIS ATP 500cc — 2005
• POLARIS XPLORER 500cc — 1997
• POLARIS MAGNUM 500cc — 2003
• POLARIS MAGNUM 500cc — 1999–2002
• POLARIS SPORTSMAN FOREST TRACTOR 500cc — 2014
• POLARIS XPLORER 500cc — 1996–2003
• POLARIS SPORTSMAN 500cc — 1996–2013
• POLARIS SCRAMBLER 500cc — 1996–2013
• POLARIS RANGER 4X4 500cc — 1999–2013
• POLARIS RANGER 2X4 500cc — 1999–2013
• POLARIS MAGNUM 500cc — 1996–2003
• POLARIS SPORTSMAN 500cc — 1996–2008
• POLARIS SPORTSMAN 500cc — 1996–2014
• POLARIS SCRAMBLER 500cc — 1996–2012
• POLARIS RANGER 500cc — 2004–2013
• POLARIS OUTLAW 500cc — 2006–2009
• POLARIS BIG BOSS 6X6 500cc — 1998–2000
• POLARIS SPORTSMAN 4X4 500cc — 2003–2014
• POLARIS SPORTSMAN 500cc — 2003–2014

Match your exact make, model, year and specification before ordering.
