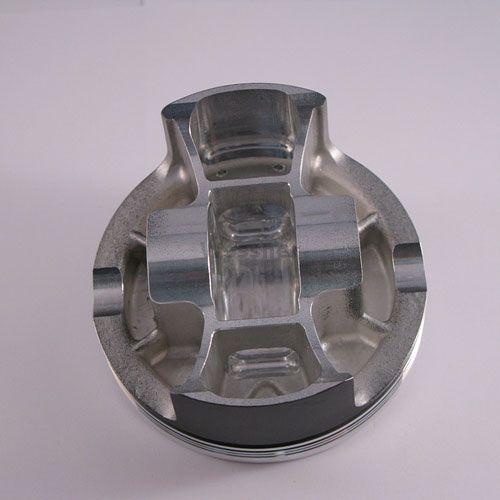

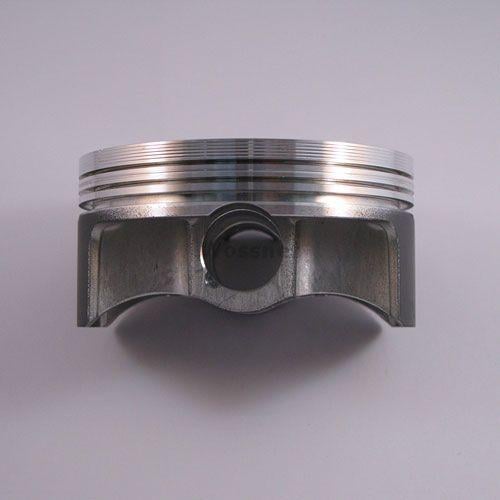

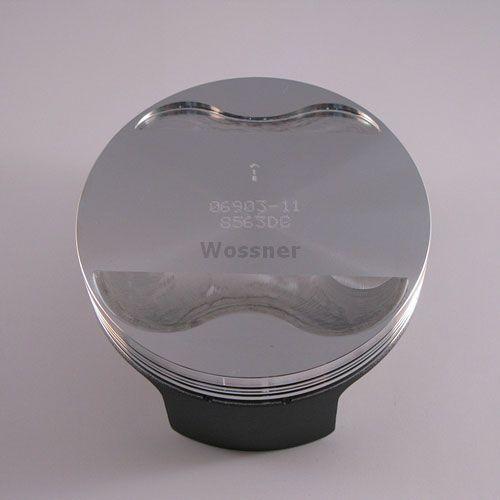

Piston Kit LTZ400 90.00, Forged Wossner 8563DC

Piston Kit LTZ400 90.00, Forged Wossner 8563DC. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit LTZ400 90.00, Forged Wossner 8563DC
• Part number: 56-W4713.C.WO
• Brand: Wossner
• Forged construction for durability and high performance
• Optimized heat transfer to cylinder walls for improved efficiency
• Elliptical design ensures uniform bearing surface and prevents piston collapse
• Manufactured in Germany for high-quality standards
• Bore Size: 90.02mm (89.96mm actual)
• Display (Displacement): 398 cm³
• Stroke: 62.60mm
• Clearance: 0.06mm
• Compression Ratio: OEM specification (12.20:1)
• Dome Volume: -2.00 cm³
• Compression Height: 25.30mm

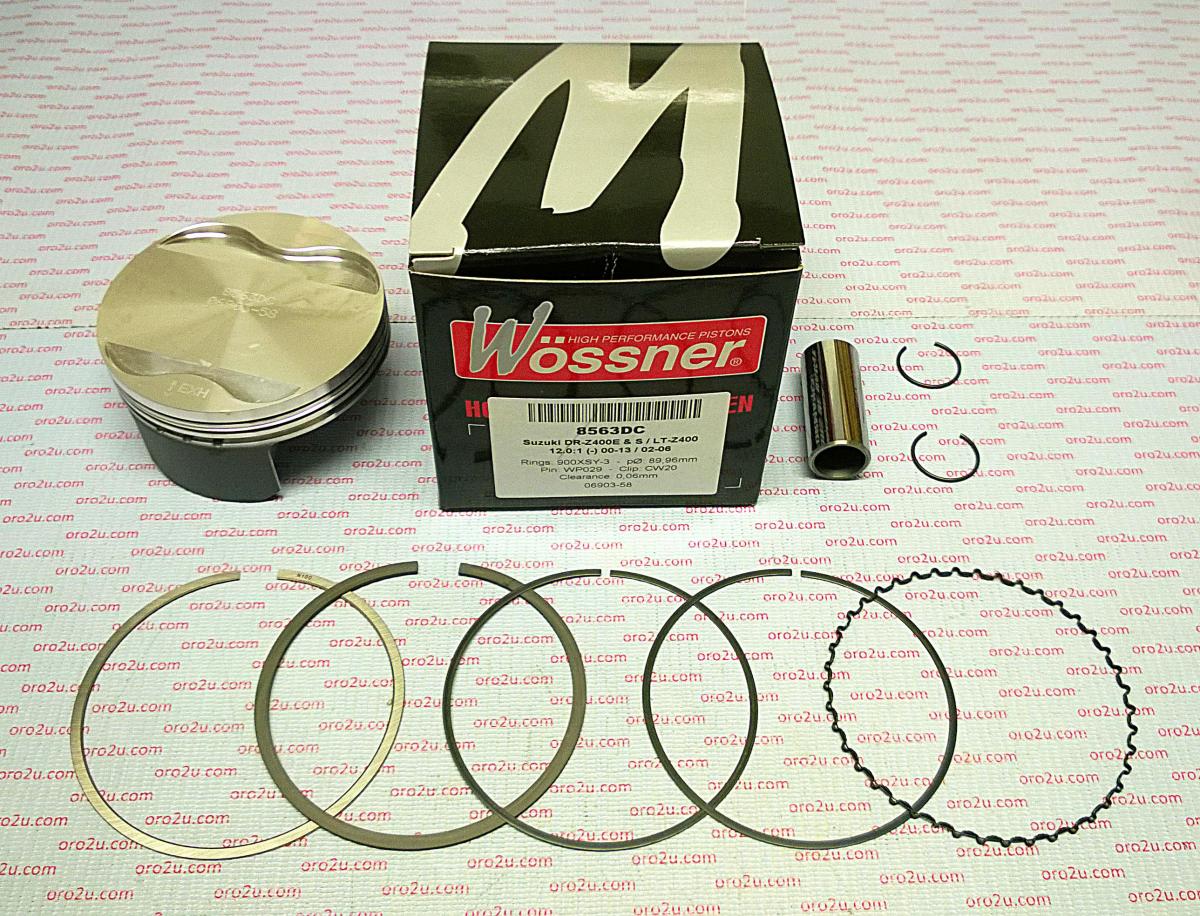

• Cross-Reference OEM Part Numbers
• Piston Kit: 8563DC
• Lock: CW20
• Pin: WP029
• Ring Set: 900XSY
• Rod: P4009

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KLX R 400cc — 2003
• KAWASAKI KFX 400cc — 2003–2006
• KAWASAKI KLX 400cc — 2003–2004
• SUZUKI DR Z 400cc — 2000–2017
• SUZUKI DR Z 400cc — 2000–2016
• ARCTIC CAT DVX 400cc — 2004–2008
• SUZUKI DR Z 400cc — 2000–2014
• KAWASAKI KLX 400cc — 2003–2006
• KAWASAKI KLX 400cc — 2003
• SUZUKI LT Z 400cc — 2003–2014
• SUZUKI LT Z 400cc — 2003–2018
• SUZUKI DR Z 400cc — 2003–2008
• SUZUKI DR Z 400cc — 2010–2018
• KAWASAKI KFX 400cc — 2004–2008
• SUZUKI LT Z QUADSPORT 400cc — 2003–2018
• SUZUKI LTZ 400cc — 2003–2009

Match your exact make, model, year and specification before ordering.
