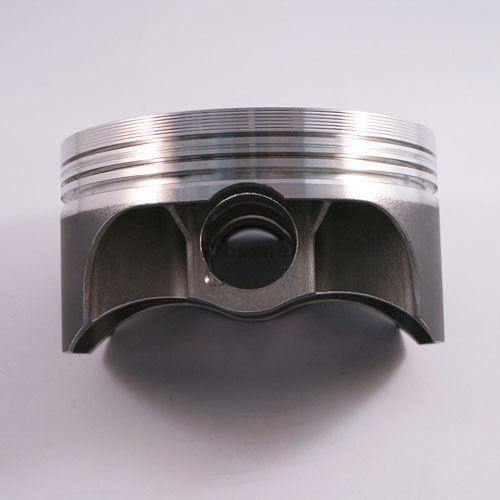

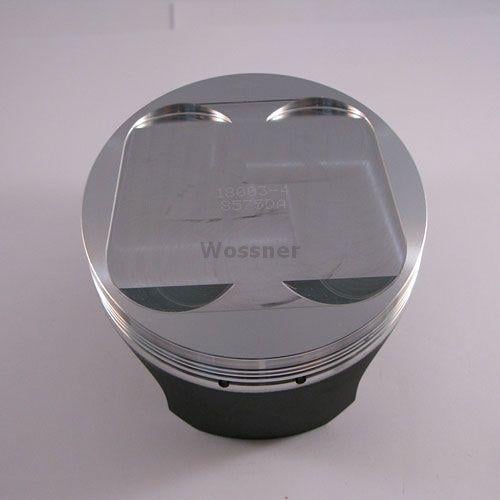

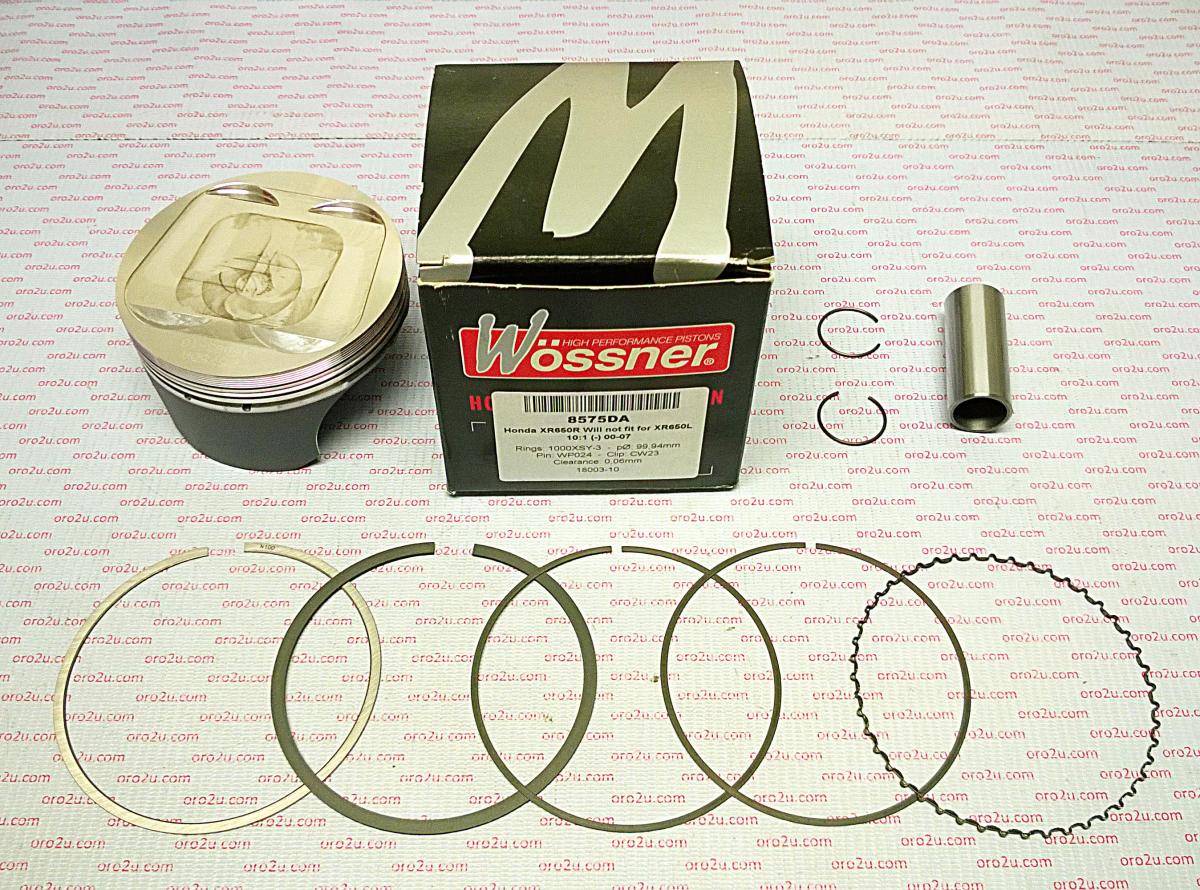

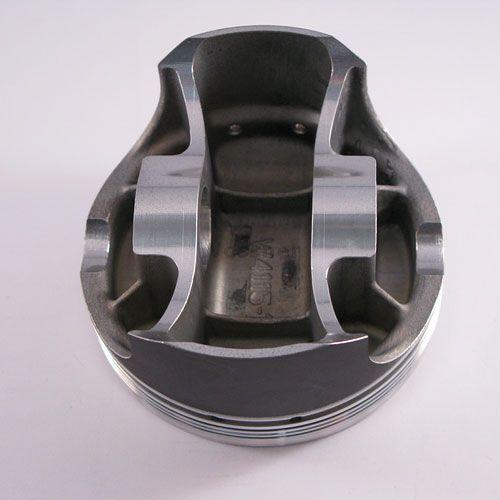

Piston Kit 00-07 XR650R 102.00, Forged Wossner 8575D200

Piston Kit 00-07 XR650R 102.00, Forged Wossner 8575D200. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 00-07 XR650R 102.00, Forged Wossner 8575D200
• Part number: 56-W4715.200.WO
• Brand: Wossner
• Forged construction for durability and high performance
• Optimized heat transfer to cylinder walls for improved efficiency
• Elliptical design ensures uniform bearing surface and prevents piston collapse
• Manufactured in Germany for high-quality standards
• Bore Size: 102mm (101.94mm actual)
• Display (Displacement): 644 cm³
• Stroke: 82.60mm
• Clearance: 0.06mm
• Compression Ratio: OEM specification (10.00:1)
• Dome Volume: -3.60 cm³
• Compression Height: 29.00mm
• Theoretical Weight: Not specified
• Cross-Reference OEM Part Numbers
• Piston Kit: 8575D200
• Lock: CW23
• Pin: WP024
• Ring Set: 1020XSY

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA XR R 650cc — 2000–2007

Match your exact make, model, year and specification before ordering.
