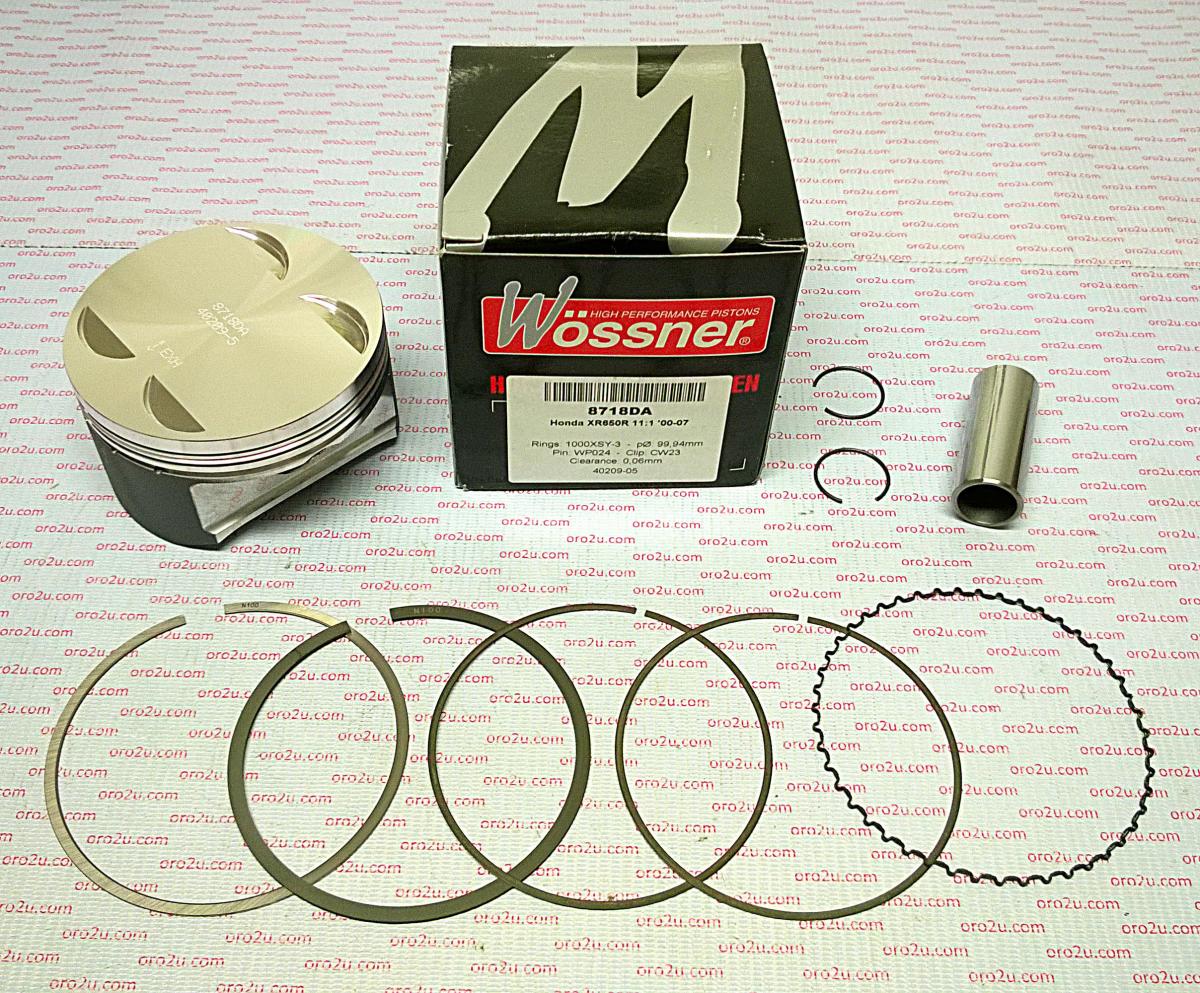

Piston Kit 00-07 XR650R Hc, Forged Wossner 8718DA 13101-MBN-670

Piston Kit 00-07 XR650R Hc, Forged Wossner 8718DA 13101-MBN-670. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 00-07 XR650R Hc, Forged Wossner 8718DA 13101-MBN-670
• Part number: 56-W4719+00A.WO
• Brand: Wossner
• Forged construction for durability and high performance
• Optimized heat transfer to cylinder walls for improved efficiency
• Elliptical design ensures uniform bearing surface and prevents piston collapse
• Manufactured in Germany for high-quality standards
• Higher compression ratio (11.00:1) for improved engine performance
• Bore Size: 100mm (99.94mm actual)
• Display (Displacement): 644 cm³
• Stroke: 82.60mm
• Clearance: 0.06mm
• Compression Ratio: 11.00:1 (OEM: 10.00:1)
• Dome Volume: -1.20 cm³
• Compression Height: 29.00mm
• Theoretical Weight: 374.00g
• Cross-Reference OEM Part Numbers
• Piston Kit: 8718DA
• Lock: CW23
• Pin: WP024
• Ring Set: 1000XSY
• OEM Part Numbers: 13101-MBN-670, 4716M10000

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA XR R 650cc — 2000–2007

Match your exact make, model, year and specification before ordering.
