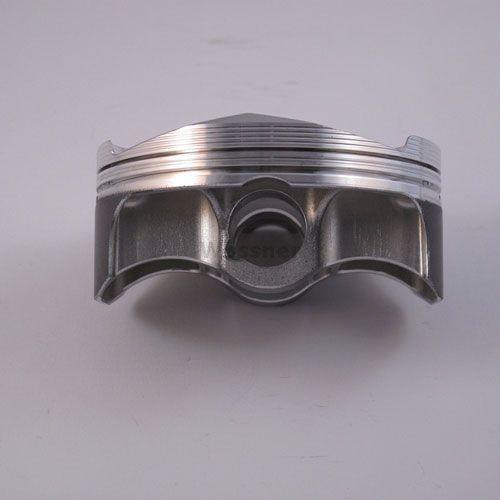

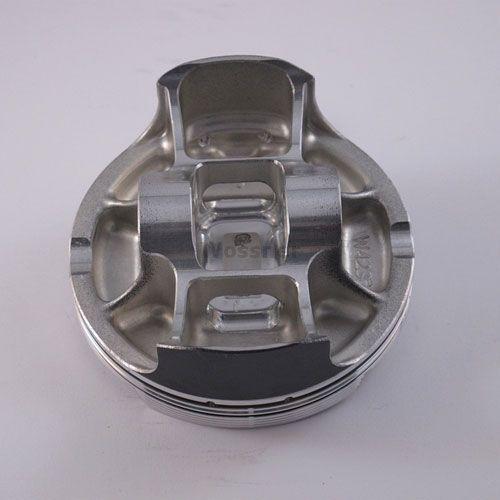

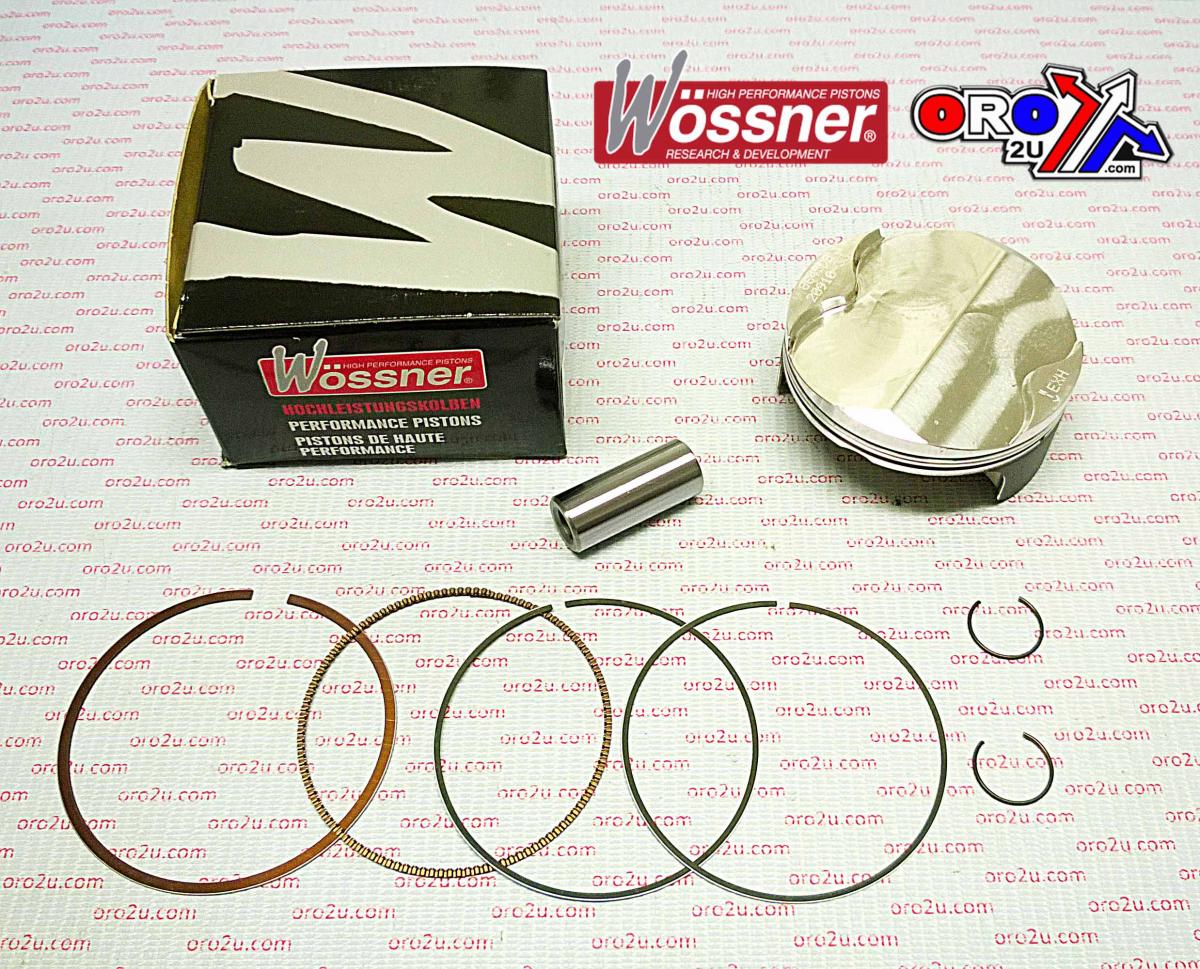

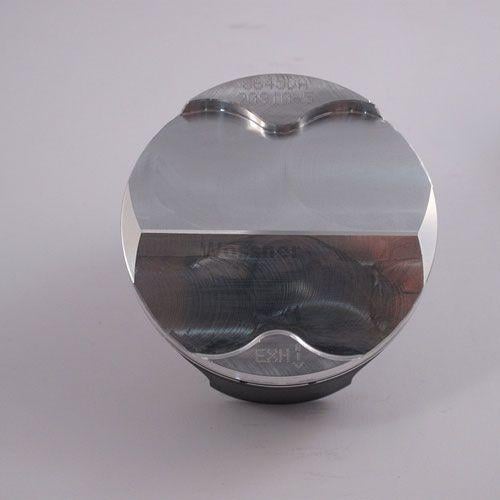

Piston Kit 06-12 Sx-f 250 KTM, Forged Wossner 8645DA 77130007100

Piston Kit 06-12 Sx-f 250 KTM, Forged Wossner 8645DA 77130007100. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 06-12 Sx-f 250 KTM, Forged Wossner 8645DA 77130007100
• Part number: 56-W4730+00A.WO
• Brand: Wossner
• Wossner forged piston kit designed for high-performance applications, providing superior strength and optimized heat transfer. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany for durability and precision.
• Forged piston for enhanced strength and durability
• Optimized heat transfer to cylinder walls for improved performance
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany
• Bore Size: 76mm
• Actual Bore: 75.96mm
• Display (cm³): 527
• Stroke (mm): 54.80
• Clearance (mm): 0.04
• Wossner Compression Ratio: 12.90:1
• OEM Compression Ratio: 12.80:1
• Dome Volume (cm³): 1.20
• Compression Height (mm): 19.50
• Theoretical Weight: N/A
• Lock Part Number: CW16
• Pin Part Number: WP070
• Ring Set Part Number: 760XAS
• Part Number: 56-W4730+00A.WO
• Cross-Reference OEM Part Numbers
• 77130007100
• 4981M07600

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX F 250cc — 2005–2012
• KTM SX F 250cc — 2006–2012
• KTM EXC F 250cc — 2007–2013
• HUSABERG FE 250cc — 2013
• KTM XCF W 250cc — 2007–2013
• KTM XCF W 250cc — 2007–2012
• KTM XC F 250cc — 2007–2013
• KTM EXC F 250cc — 2012–2013
• KTM XC F 250cc — 2007–2012
• KTM EXC R 250cc — 2006–2013
• KTM EXC F 250cc — 2007–2011

Match your exact make, model, year and specification before ordering.
