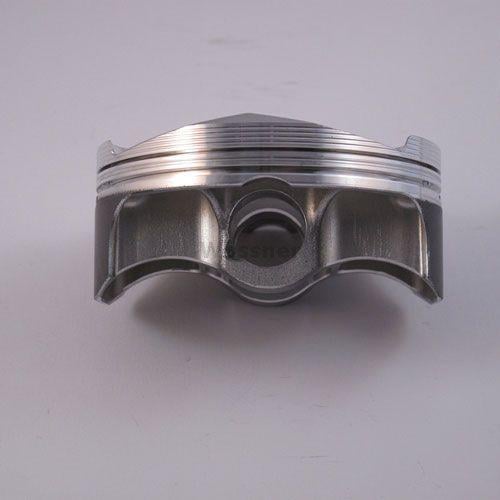

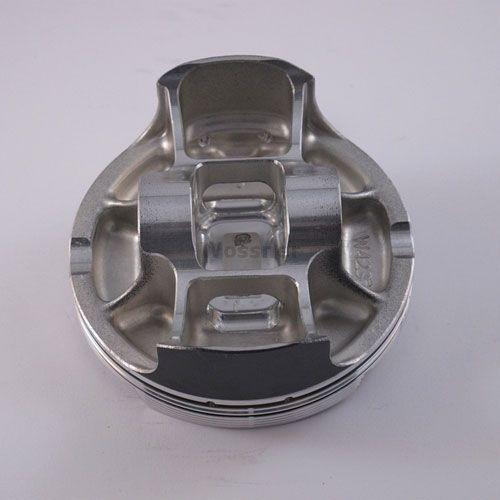

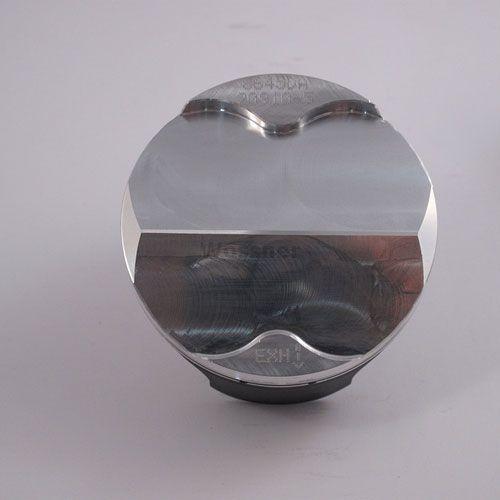

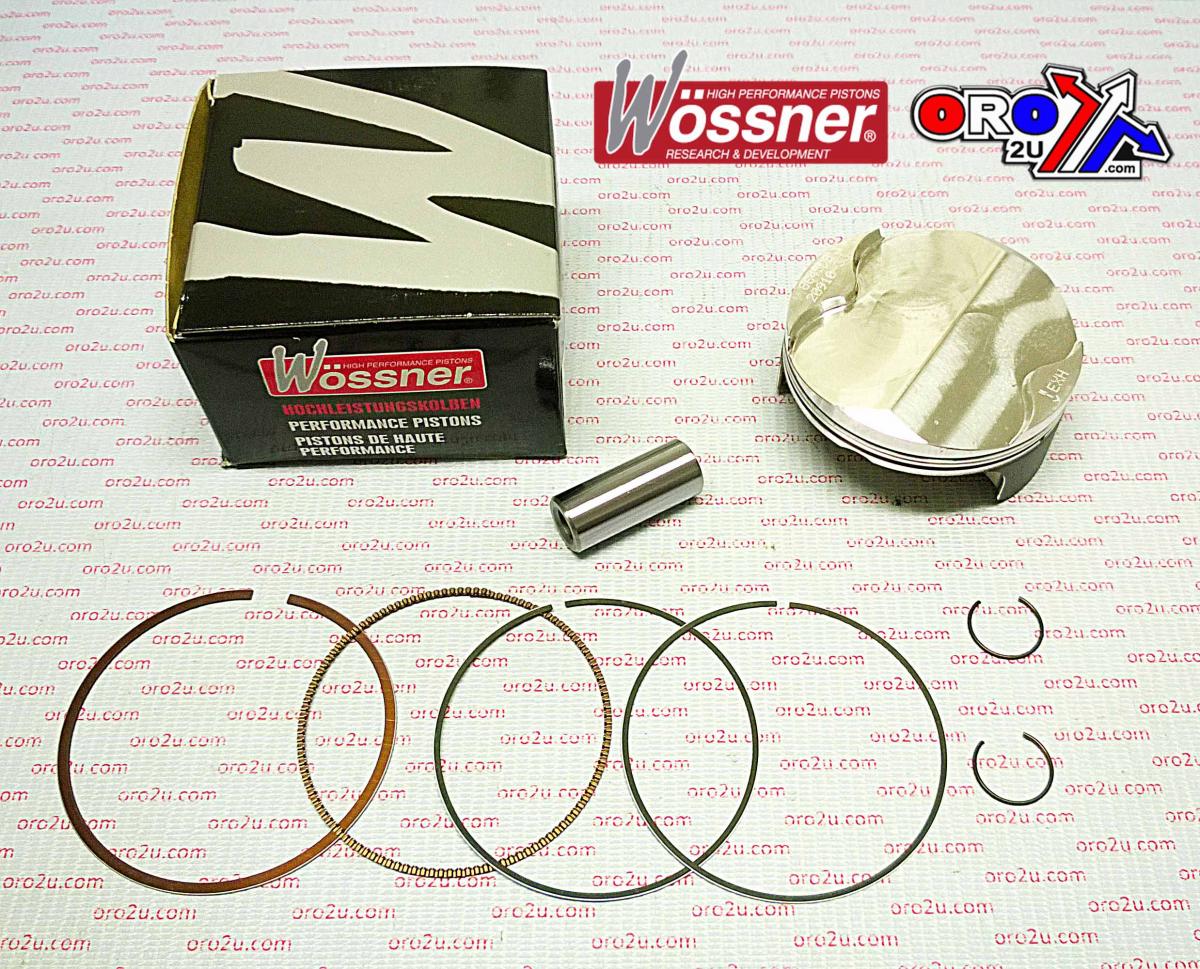

Piston Kit 06-12 Sx-f 250 KTM, Forged Wossner 8645DC

Piston Kit 06-12 Sx-f 250 KTM, Forged Wossner 8645DC. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 06-12 Sx-f 250 KTM, Forged Wossner 8645DC
• Part number: 56-W4730+00C.WO
• Brand: Wossner
• Piston Kit 76.02mm Bore 75.98 WOSSNER 8645DC (+0.02)
• EXC250 Racing 2006-2013,
• SX-F250 2006-2012,
• FE250 2013,
• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany
• Part No. 56-W4730+00C.WO (www.fdyperformance.com)
• Lock P/N CW16
• Pin P/N WP070
• Ring Set P/N 760XAS
• Display (cm3) 527
• Hub stroke (mm) 54.80
• Clearance (mm) 0.04
• Wossner compression Ratio: 12.90:1
• OEM Compression ratio: 12.80:1
• Dome volume (cm3) 1.20
• Compression height (mm) 19.50
• Theorectical weight (G)

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX F 250cc — 2005–2012
• KTM SX F 250cc — 2006–2012
• KTM EXC F 250cc — 2007–2013
• HUSABERG FE 250cc — 2013
• KTM XCF W 250cc — 2007–2013
• KTM XCF W 250cc — 2007–2012
• KTM XC F 250cc — 2007–2013
• KTM EXC F 250cc — 2012–2013
• KTM XC F 250cc — 2007–2012
• KTM EXC R 250cc — 2006–2013
• KTM EXC F 250cc — 2007–2011

Match your exact make, model, year and specification before ordering.
