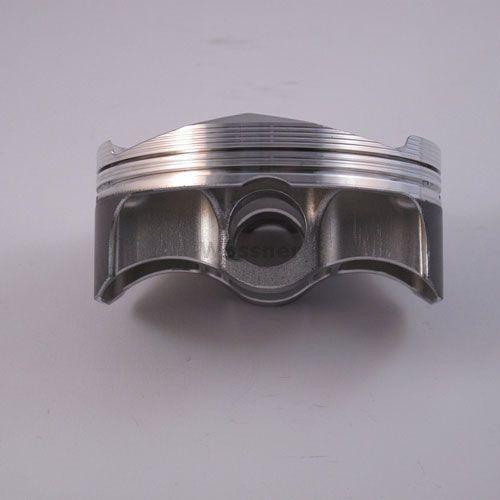

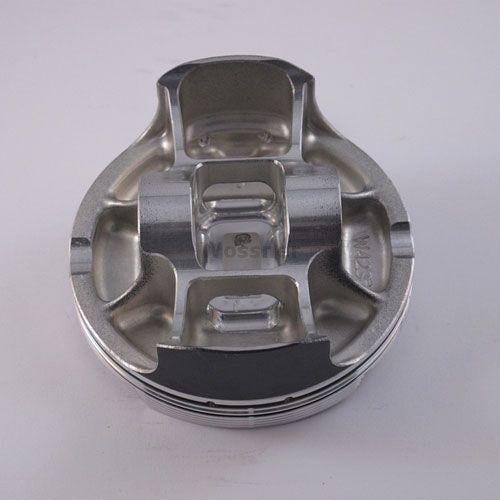

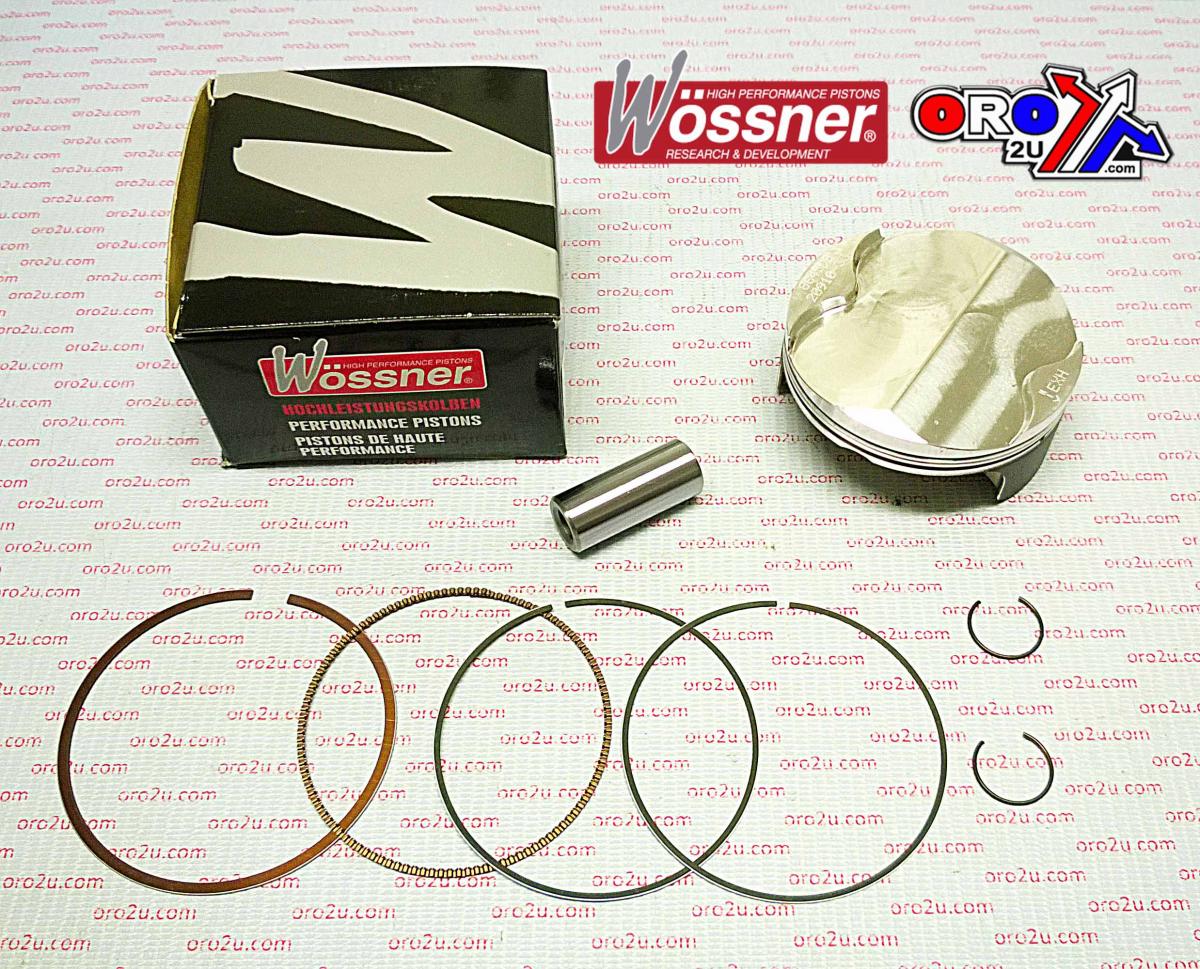

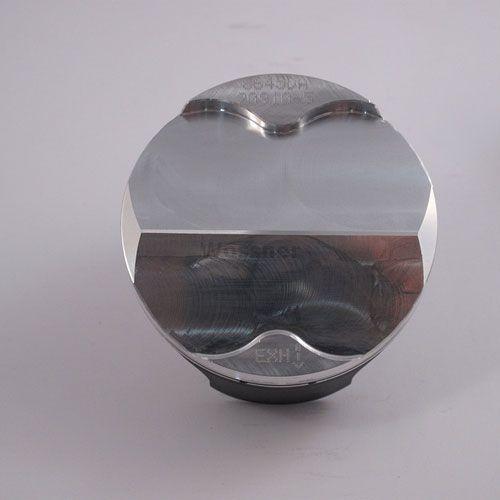

Piston Kit 06-12 Sx-f 250 KTM, Forged Wossner 8645D400 80mm

Piston Kit 06-12 Sx-f 250 KTM, Forged Wossner 8645D400 80mm. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 06-12 Sx-f 250 KTM, Forged Wossner 8645D400 80mm
• Part number: 56-W4730+400.WO
• Brand: Wossner
• Wossner forged piston kit designed for high-performance applications, offering superior strength and optimized heat transfer. The elliptical design ensures a uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany for precision and durability.
• Forged piston for enhanced strength and durability
• Optimized heat transfer to cylinder walls for improved performance
• Elliptical design for even thrust load distribution
• Manufactured in Germany
• Bore Size: 80mm
• Actual Bore: 79.96mm
• Display (cm³): 527
• Stroke (mm): 54.80
• Clearance (mm): 0.04
• Wossner Compression Ratio: 12.90:1
• OEM Compression Ratio: 12.80:1
• Dome Volume (cm³): 1.20
• Compression Height (mm): 19.50
• Theoretical Weight: N/A
• Lock Part Number: CW16
• Pin Part Number: WP059
• Ring Set Part Number: 800XDS
• Part Number: 56-W4730+400.WO

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX F 250cc — 2005–2012
• KTM SX F 250cc — 2006–2012
• KTM EXC F 250cc — 2007–2013
• HUSABERG FE 250cc — 2013
• KTM XCF W 250cc — 2007–2013
• KTM XCF W 250cc — 2007–2012
• KTM XC F 250cc — 2007–2013
• KTM EXC F 250cc — 2012–2013
• KTM XC F 250cc — 2007–2012
• KTM EXC R 250cc — 2006–2013
• KTM EXC F 250cc — 2007–2011

Match your exact make, model, year and specification before ordering.
