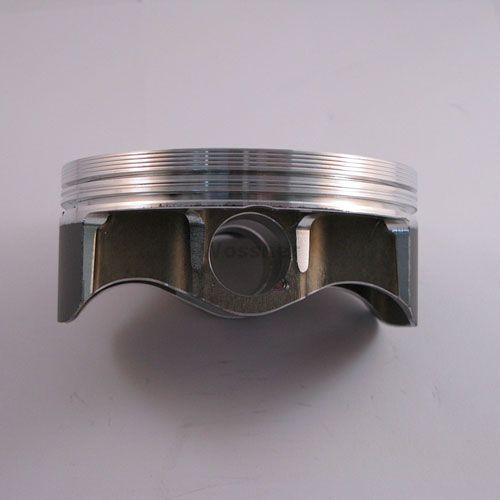

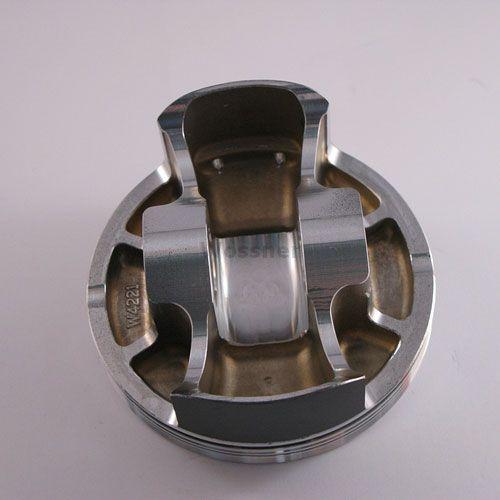

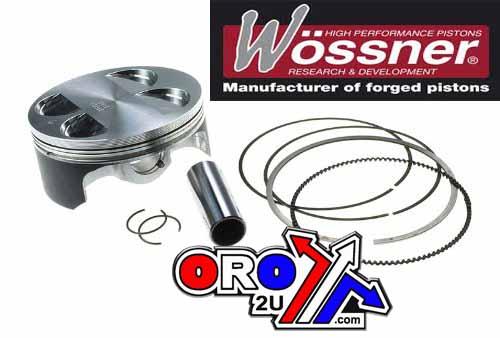

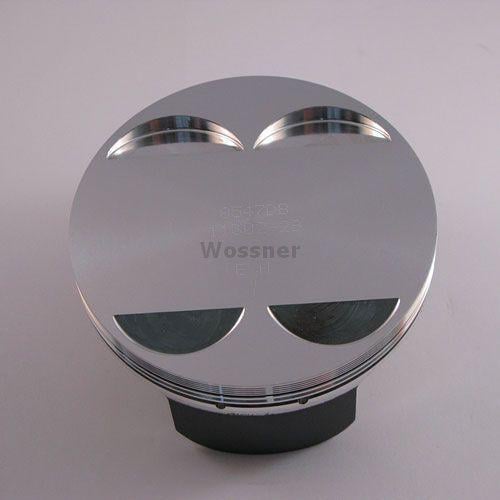

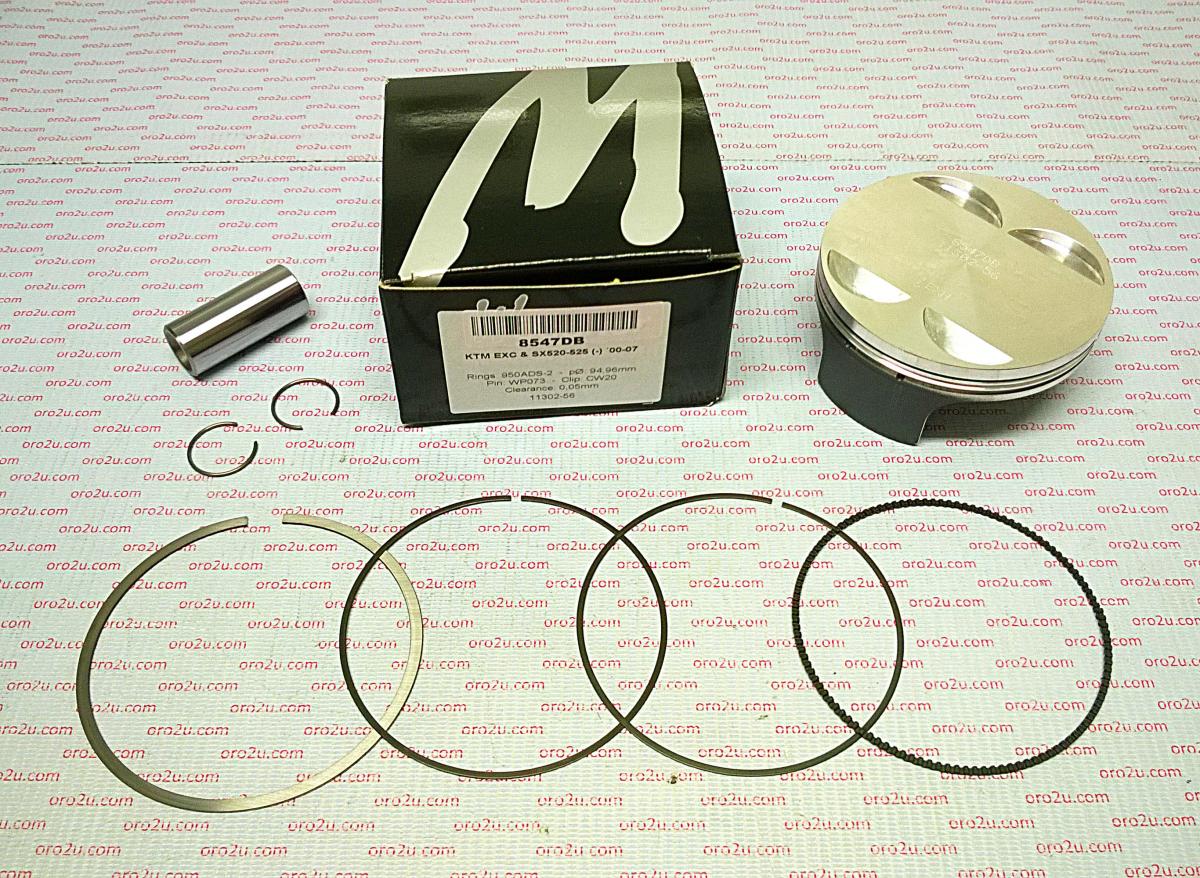

Piston Kit 00-07 KTM520 525 95, Wossner 8547DB Beta RR525

Piston Kit 00-07 KTM520 525 95, Wossner 8547DB Beta RR525. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 00-07 KTM520 525 95, Wossner 8547DB Beta RR525
• Part number: 56-W4731.B.WO
• Brand: Wossner
• Wossner forged piston kit designed for high-performance applications, offering superior strength and optimized heat transfer. The elliptical design ensures a uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany for precision and durability.
• Forged piston for enhanced strength and durability
• Optimized heat transfer to cylinder walls for improved performance
• Elliptical design for even thrust load distribution
• Manufactured in Germany
• Bore Size: 95.01mm
• Actual Bore: 94.96mm
• Display (cm³): 510
• Stroke (mm): 54.80
• Clearance (mm): 0.04
• Wossner Compression Ratio: 12.90:1
• OEM Compression Ratio: 12.80:1
• Dome Volume (cm³): 1.20
• Compression Height (mm): 19.50
• Theoretical Weight: N/A
• Lock Part Number: CW20
• Pin Part Number: WP038
• Ring Set Part Number: 950ADS-2
• Part Number: 56-W4731.B.WO

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 520cc — 2000–2002
• KTM EXC 520cc — 2000–2002
• POLARIS OUTLAW 525cc — 2007–2011
• KTM XC 525cc — 2008–2012
• KTM SM R 525cc — 2004–2005
• KTM EXC 525cc — 2003–2007
• BETA RR 525cc — 2005–2009
• KTM SX 525cc — 2003–2007
• KTM EXC 525cc — 2003–2010
• POLARIS OUTLAW 525cc — 2008–2012
• POLARIS OUTLAW 450cc — 2003–2011
• KTM XC ATV 525cc — 2003–2007
• KTM SX 525cc — 2003–2010

Match your exact make, model, year and specification before ordering.
