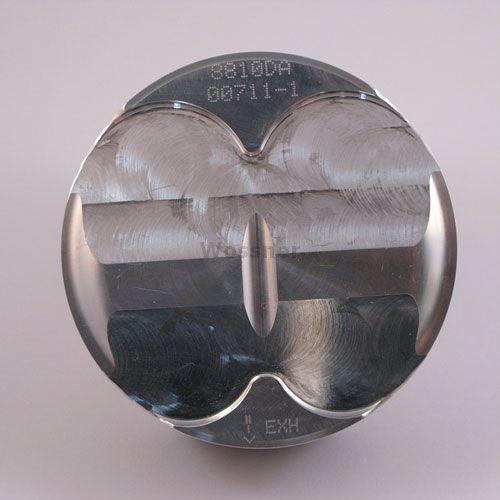

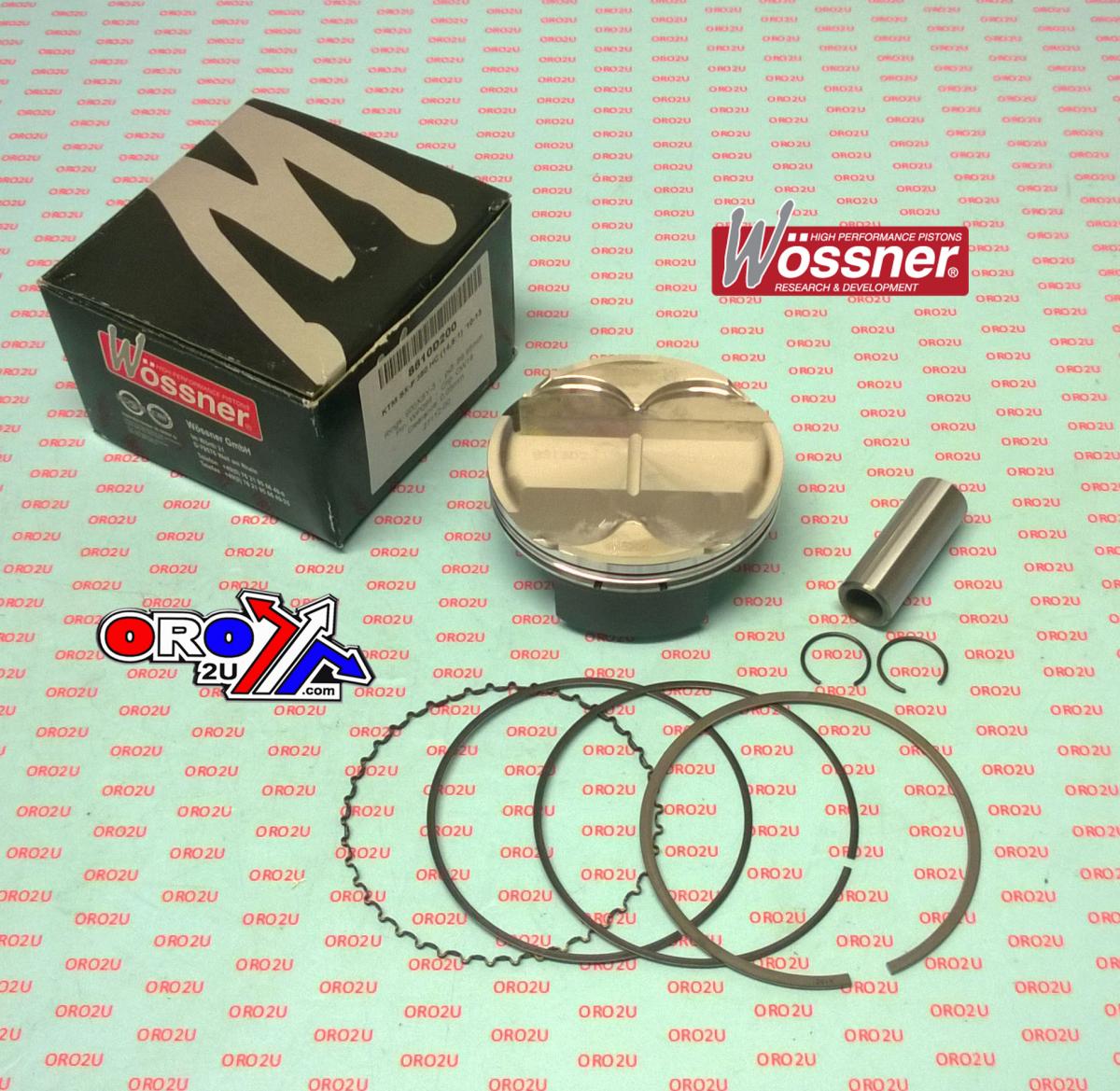

Piston Kit 10-14 SXF350 88 Hc, Forged Wossner 8810DA KTM 77230207100

Piston Kit 10-14 SXF350 88 Hc, Forged Wossner 8810DA KTM 77230207100. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 10-14 SXF350 88 Hc, Forged Wossner 8810DA KTM 77230207100
• Part number: 56-W4736+00A.WO
• Brand: Wossner
• High-strength forged piston for durability
• Optimized heat transfer for improved combustion efficiency
• Elliptical design to ensure uniform expansion and reduced localized pressure
• High compression ratio for enhanced engine performance
• Manufactured in Germany
• Bore: 88mm
• Size: 87.95mm
• Part Number: 8810DA
• Compression Ratio: 14.50:1
• OEM Compression Ratio: 13.50:1
• Lock Part Number: CW18
• Pin Part Number: WP099
• Ring Set Part Number: 880XSY
• Rod Part Numbers:
• P4040 (2010-2012)
• P4061 (2013-2015)
• P4069 (2016)
• Displacement: 350 cm³
• Stroke: 68.80mm
• Clearance: 0.05mm
• Dome Volume: +3.30 cm³
• Compression Height: 20.50mm
• Theoretical Weight: Not specified
• Cross-Reference OEM Part Numbers
• 77230207100
• 40015M08800

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX F 350cc — 2011–2015
• KTM EXC F 350cc — 2011–2015
• HUSQVARNA FC 350cc — 2014–2016
• HUSQVARNA FC 350cc — 2014–2015
• HUSQVARNA FX 350cc — 2017–2020
• KTM SX F 350cc — 2011–2020
• HUSQVARNA FC 350cc — 2014–2018
• KTM SX F 350cc — 2010–2016

Match your exact make, model, year and specification before ordering.
