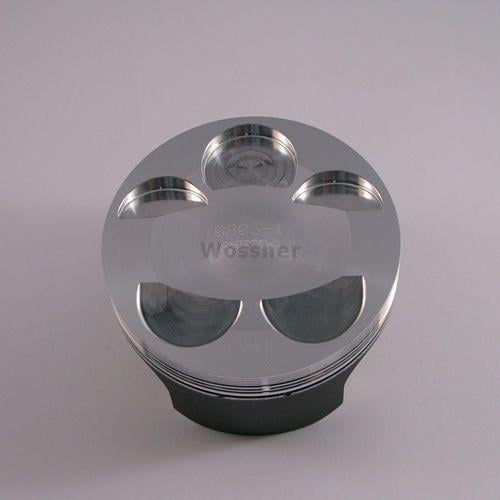

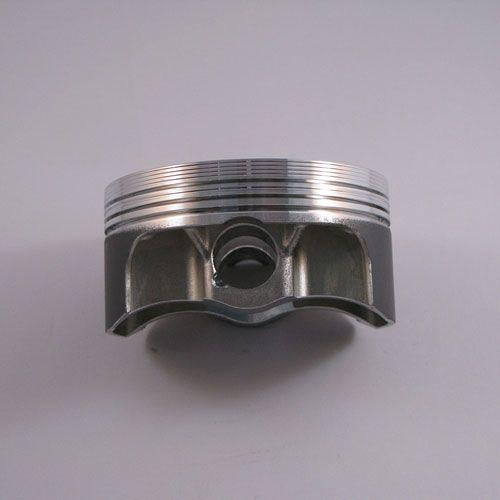

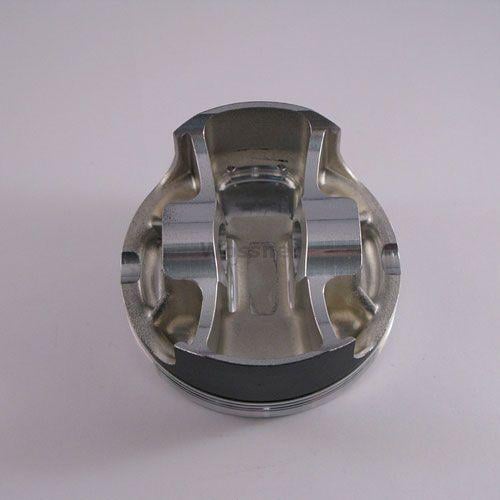

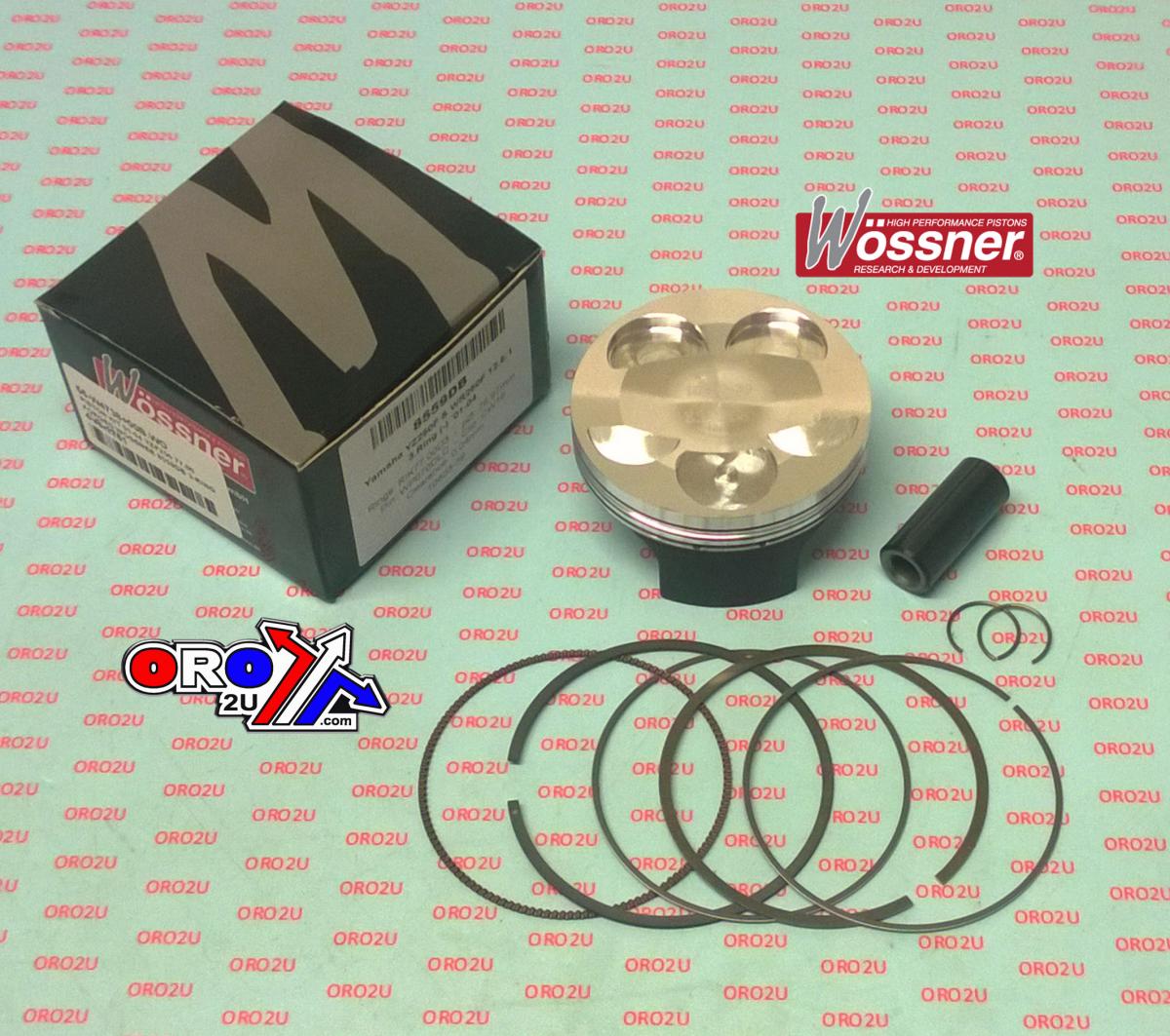

Piston Kit 01-04 YZF250 77.00, Forged Wossner 8559DB 3-RING

Piston Kit 01-04 YZF250 77.00, Forged Wossner 8559DB 3-RING. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 01-04 YZF250 77.00, Forged Wossner 8559DB 3-RING
• Part number: 56-W4738+00B.WO
• Brand: Wossner
• High-strength forged piston for durability
• Optimized heat transfer for improved combustion efficiency
• Elliptical design to ensure uniform expansion and reduced localized pressure
• Three-ring design for enhanced sealing and performance
• Manufactured in Germany
• Bore: 77.01mm
• Size: 76.97mm
• Part Number: 8559DB
• Compression Ratio: OEM
• OEM Compression Ratio: 12.50:1
• Lock Part Number: CW16
• Pin Part Number: WP059
• Ring Set Part Number: 770XAS-2
• Displacement: 249 cm³
• Stroke: 53.6mm
• Clearance: 0.04mm
• Dome Volume: -4.70 cm³
• Compression Height: 22.20mm
• Theoretical Weight: Not specified

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YZ F 250cc — 2001–2004
• YAMAHA YZF 250cc — 2001–2004
• YAMAHA WRF 250cc — 2001–2004

Match your exact make, model, year and specification before ordering.
