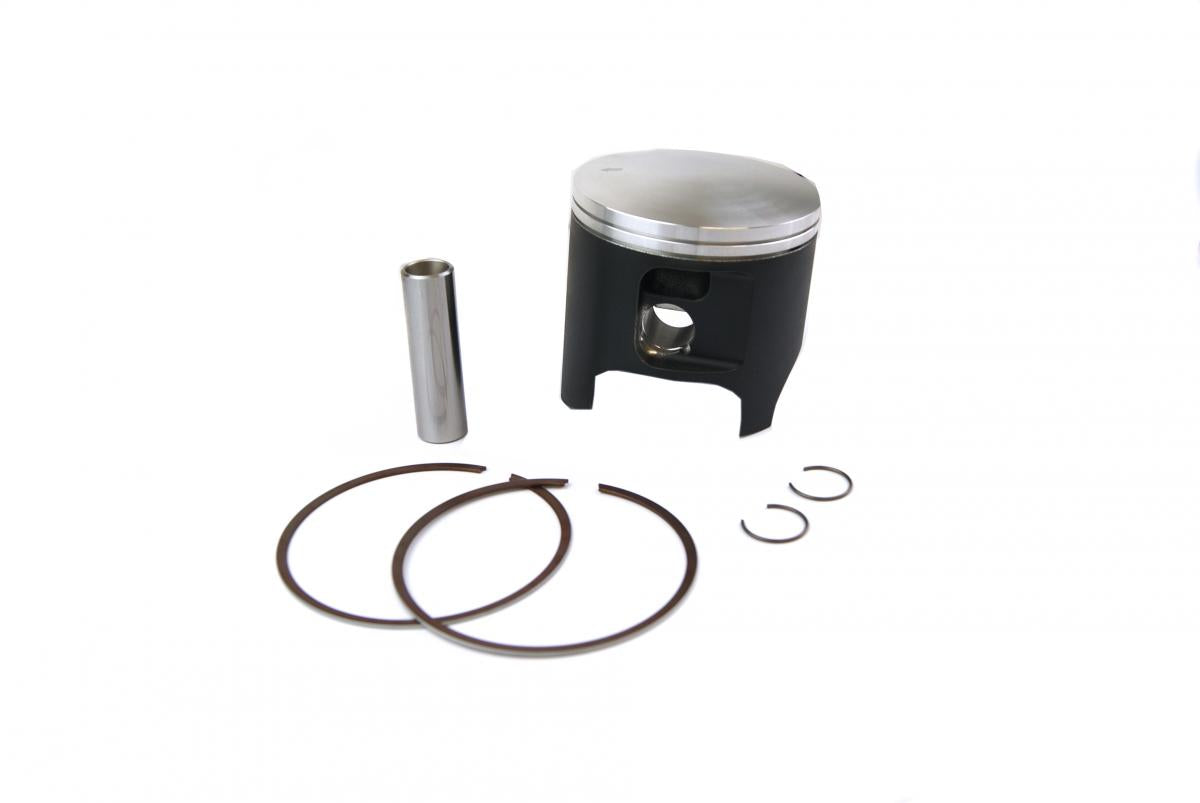

Piston Kit 84-90 YZ490 88MM, Forged Wossner 8317D100

Piston Kit 84-90 YZ490 88MM, Forged Wossner 8317D100. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 84-90 YZ490 88MM, Forged Wossner 8317D100
• Part number: 56-W4815.100.WO
• Brand: Wossner
• Wossner 88.00mm forged piston kit is designed for strength and durability. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability.
• Forged construction for enhanced strength and longevity
• Optimized heat transfer for improved engine performance
• Elliptical design prevents piston collapse and ensures even load distribution
• Manufactured in Germany for high-quality standards
• Bore Size: 88.00mm
• Stroke: 82.00mm
• Compression Height: 40.00mm
• Number of Rings: 2
• Clip Part Number: CW18
• Pin Size: 18mm
• Pin Part Number: WP042
• Cylinders: 1
• Compatible Needle Bearing: N1022
• Cross-Reference OEM Part Numbers
• Part No: 56-W4815.100.WO
• Wossner Part No: 8317D100
• Vehicle Fitments
• Yamaha YZ490 (1984 - 1990)
• Yamaha WR500 (1992 - 1993)

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
