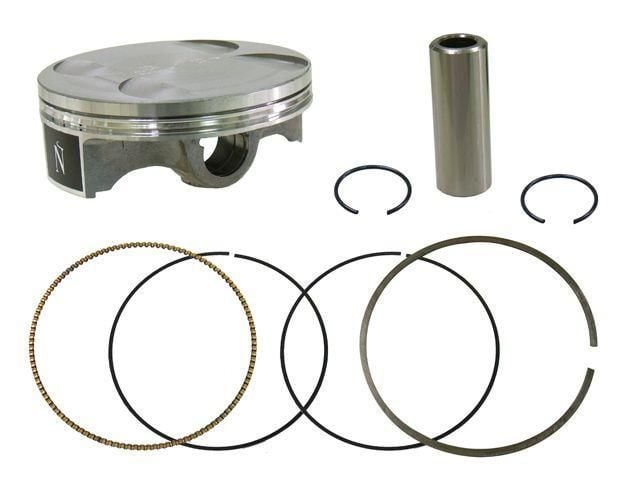

Piston Kit 02-03 CRF450R 96.00, Forged Wossner 8546DC

Piston Kit 02-03 CRF450R 96.00, Forged Wossner 8546DC. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 02-03 CRF450R 96.00, Forged Wossner 8546DC
• Part number: 56-W4820.C.WO
• Brand: Wossner
• Wossner 96.02mm forged piston kit is designed for strength and durability. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability.
• Forged construction for enhanced strength and longevity
• Optimized heat transfer for improved engine performance
• Elliptical design prevents piston collapse and ensures even load distribution
• Manufactured in Germany for high-quality standards
• Bore Size: 96.02mm
• Actual Bore Diameter: 95.98mm
• Displacement: 449 cm³
• Stroke: 62.10mm
• Clearance: 0.04mm
• Wossner Compression Ratio: 12.00:1
• OEM Compression Ratio: 11.50:1
• Dome Volume: -2.20 cm³
• Compression Height: 24.00mm
• Gasket Part Number: D4006
• Lock Part Number: CW19
• Pin Part Number: WP037
• Ring Set Part Number: 960ADS
• Rod Part Number: P4026
• Cross-Reference OEM Part Numbers
• Part No: 56-W4820.C
• Wossner Part No: 8546DC

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA CRF R 450cc — 2002–2006
• HONDA CRF X 450cc — 2005–2016
• HONDA CRF R 450cc — 2002–2003
• HONDA CRF R 450cc — 2002–2008
• HONDA CRF R 450cc — 2004–2008
• HONDA CRF R 450cc — 2004
• KAWASAKI KLX 400cc — 2003–2006
• HONDA CRF R 450cc — 2007–2008
• HONDA CRM F R 450cc — 2007
• HONDA CRE F R 450cc — 2007

Match your exact make, model, year and specification before ordering.
