Piston Kit 06-09 CRF250R X 80, Forged Wossner 8656D200

Piston Kit 06-09 CRF250R X 80, Forged Wossner 8656D200. Find the product specifications and compatibility information below.

Product details

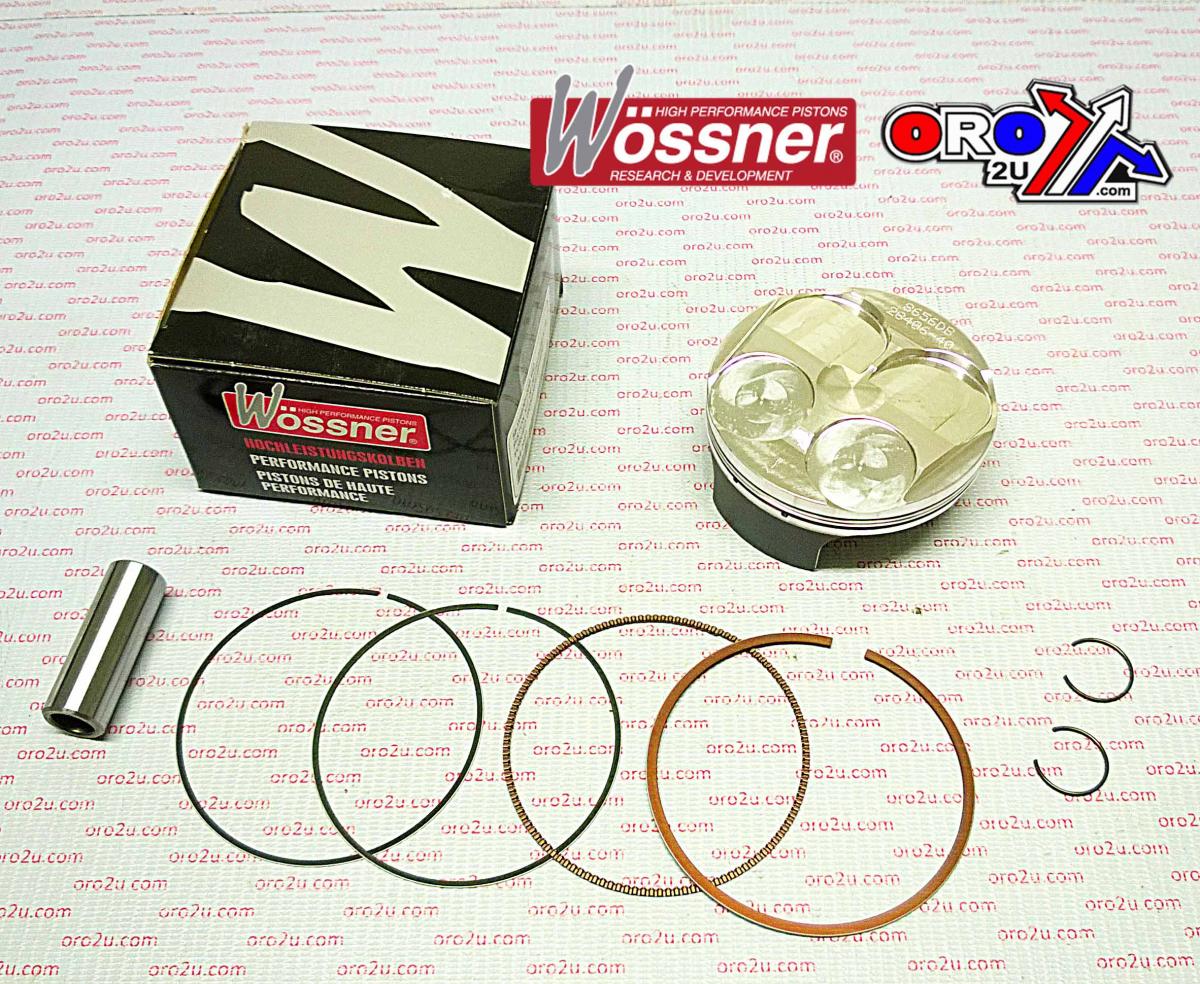

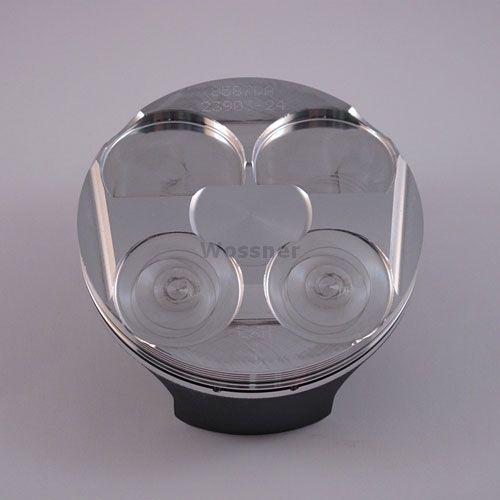

• Product: Piston Kit 06-09 CRF250R X 80, Forged Wossner 8656D200
• Part number: 56-W4830+200.WO
• Brand: Wossner
• Wossner 80.00mm high-compression forged piston kit is designed for enhanced engine performance. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability.
• High-compression design for increased engine performance
• Forged construction for enhanced strength and longevity
• Optimized heat transfer for efficient cooling
• Elliptical design prevents piston collapse and ensures even load distribution
• Manufactured in Germany for high-quality standards
• Bore Size: 80.00mm
• Actual Bore Diameter: 79.96mm
• Displacement: 249 cm³
• Stroke: 52.20mm
• Clearance: 0.04mm
• Wossner Compression Ratio: 13.50:1
• OEM Compression Ratio: 12.90:1
• Dome Volume: -0.90 cm³
• Compression Height: 24.00mm
• Theoretical Weight: 19.00g
• Gasket Part Number: D4004
• Lock Part Number: CW16
• Pin Part Number: WP059
• Ring Set Part Number: 800XDS
• Cross-Reference OEM Part Numbers
• Part No: 56-W4830+200.WO
• Wossner Part No: 8656D200

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA CRF R 250cc — 2004–2009
• HONDA CRF R 250cc — 2006–2009
• HONDA CRF X 250cc — 2004–2009
• HONDA CRF X 250cc — 2004–2013
• HONDA CRF X 250cc — 2006–2009
• HONDA CRF X 250cc — 2005–2017
• HONDA CRF X 250cc — 2011–2016

Match your exact make, model, year and specification before ordering.
