Piston Kit 82-85 KX125 56.00, Wossner 8210DB Forged Kit

Piston Kit 82-85 KX125 56.00, Wossner 8210DB Forged Kit. Find the product specifications and compatibility information below.

Product details

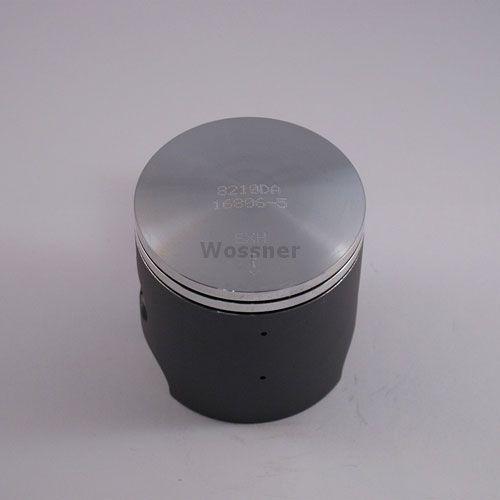

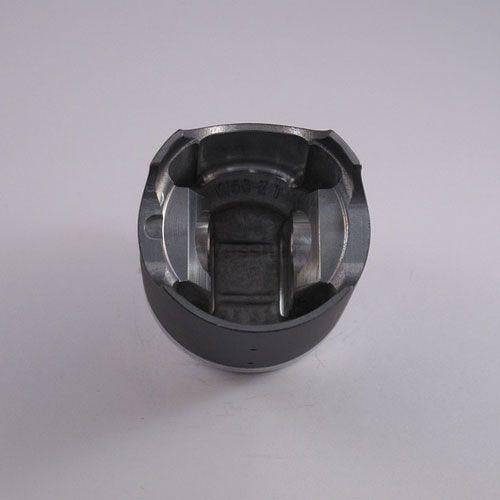

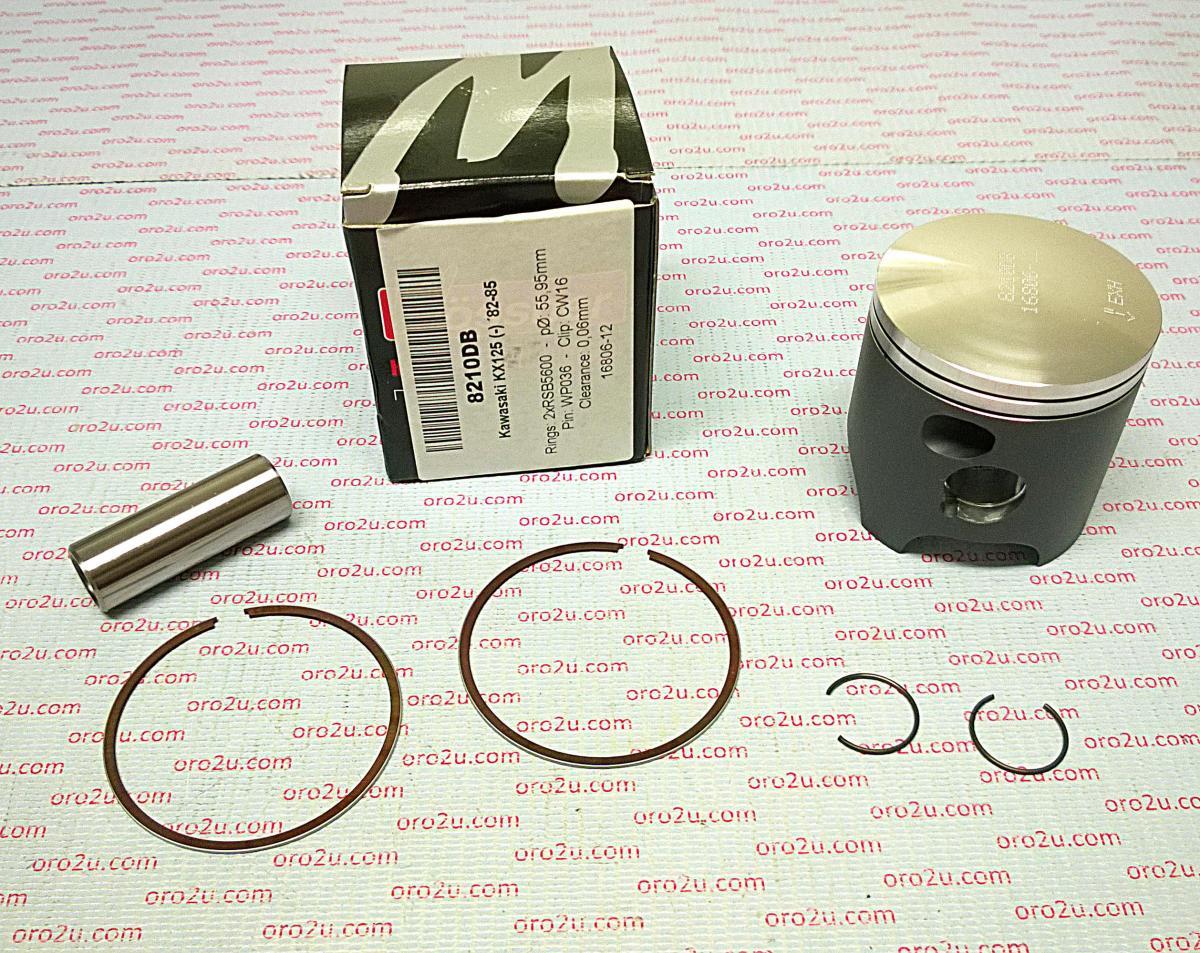

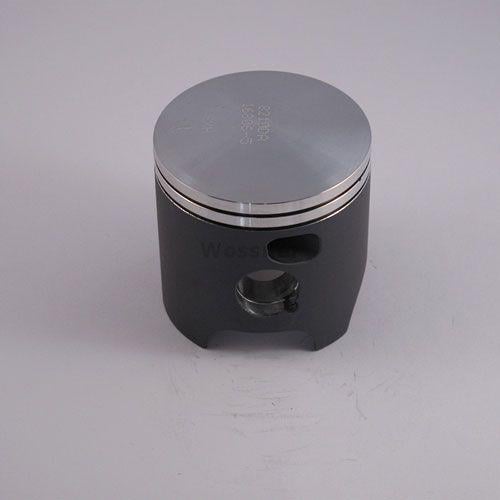

• Product: Piston Kit 82-85 KX125 56.00, Wossner 8210DB Forged Kit
• Part number: 56-W486.00B.WO
• Brand: Wossner
• Wossner 56.01mm forged piston kit is designed for strength and durability. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability.
• Forged construction for enhanced strength and longevity
• Optimized heat transfer for improved engine performance
• Elliptical design prevents piston collapse and ensures even load distribution
• Manufactured in Germany for high-quality standards
• Bore Size: 56.01mm
• Actual Bore Diameter: 55.95mm
• Displacement: 125 cm³
• Stroke: 50.60mm
• Clearance: 0.06mm
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke
• Compression Height: 29.70mm
• Lock Part Number: CW16
• Pin Part Number: WP036
• Ring Set Part Number: RSB5600 x 2
• Rod Part Number: P2037
• Cross-Reference OEM Part Numbers
• Part No: 56-W486.00B.WO
• Wossner Part No: 8210DB

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX 125cc — 1982–1985

Match your exact make, model, year and specification before ordering.
