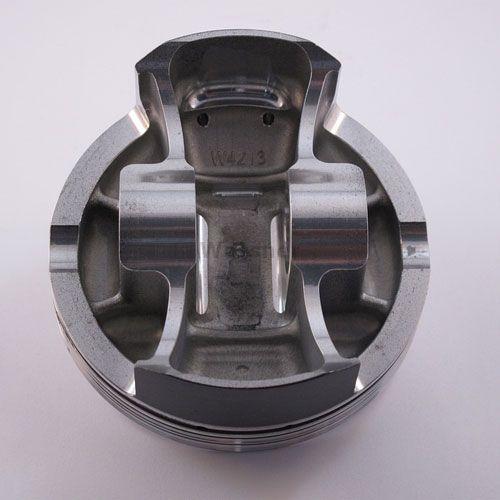

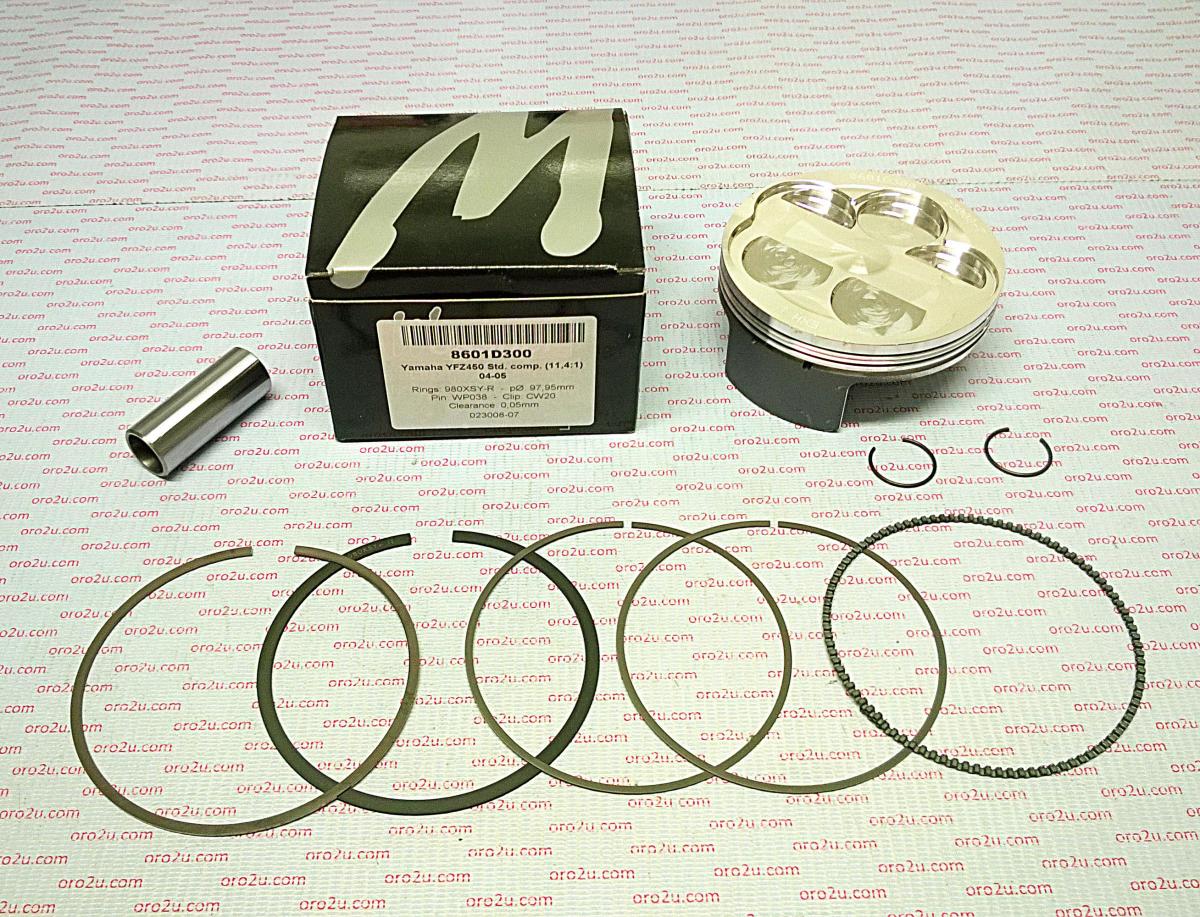

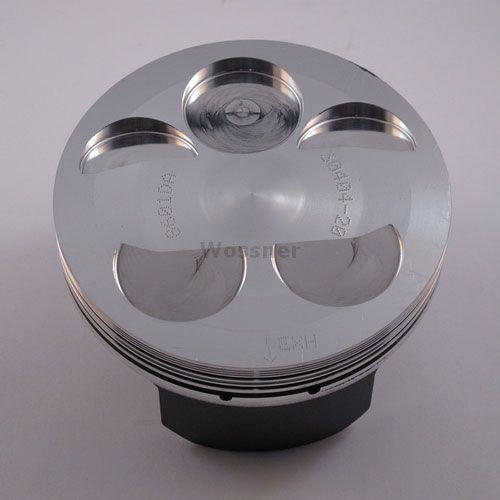

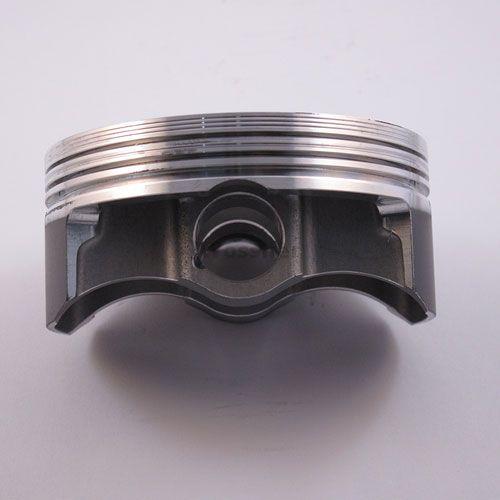

Piston Kit YFZ450/R/X 95.00 A, Wossner 8601DA Forged Kit 5TG-11631-12-00

Piston Kit YFZ450/R/X 95.00 A, Wossner 8601DA Forged Kit 5TG-11631-12-00. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit YFZ450/R/X 95.00 A, Wossner 8601DA Forged Kit 5TG-11631-12-00
• Part number: 56-W4865+00A.WO
• Brand: Wossner
• Forged piston construction for enhanced strength and durability
• Designed for efficient heat transfer from the combustion chamber to cylinder walls
• Elliptical profile provides uniform bearing surface under heat expansion
• Reduces localized pressure and prevents piston collapse
• Manufactured in Germany
• Bore: 95.00 mm
• Actual Bore Diameter: 94.95 mm
• Display: 449 cm³
• Hub Stroke: 62.00 mm
• Clearance: 0.05 mm
• Compression Height: 25.00 mm
• Dome Volume: -7.40 cm³
• Compression Ratio: OEM (11.90:1)
• Theoretical Weight: Not specified
• Cross-Reference OEM Part Numbers
• Piston: 8601DA
• Lock: CW20
• Pin: WP038
• Ring Set: 950XSY
• Rod: P4029
• Part No.: 56-W4865+00A.WO
• OEM Reference: 5TG-11631-12-00, 4865M09500

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFZ 450cc — 2004–2013
• YAMAHA YFZ X 450cc — 2010–2011
• YAMAHA YFZ R 450cc — 2009–2018
• YAMAHA YFZ 450cc — 2004–2005
• YAMAHA YFZ 450cc — 2006–2013
• YAMAHA YFZ X 450cc — 2011
• KAWASAKI KX 125cc — 1982–1985
• YAMAHA YFZ X 450cc — 2009–2015
• YAMAHA YFZ R 450cc — 2009–2015

Match your exact make, model, year and specification before ordering.
