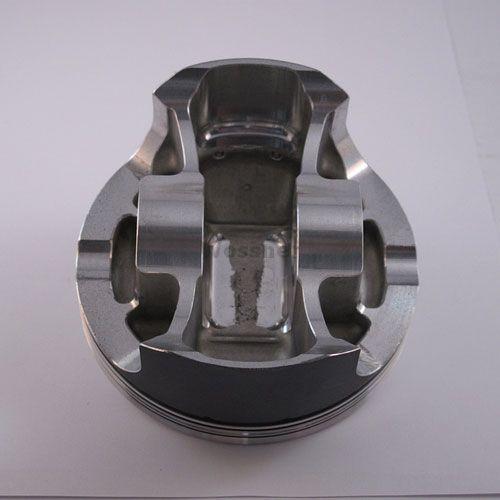

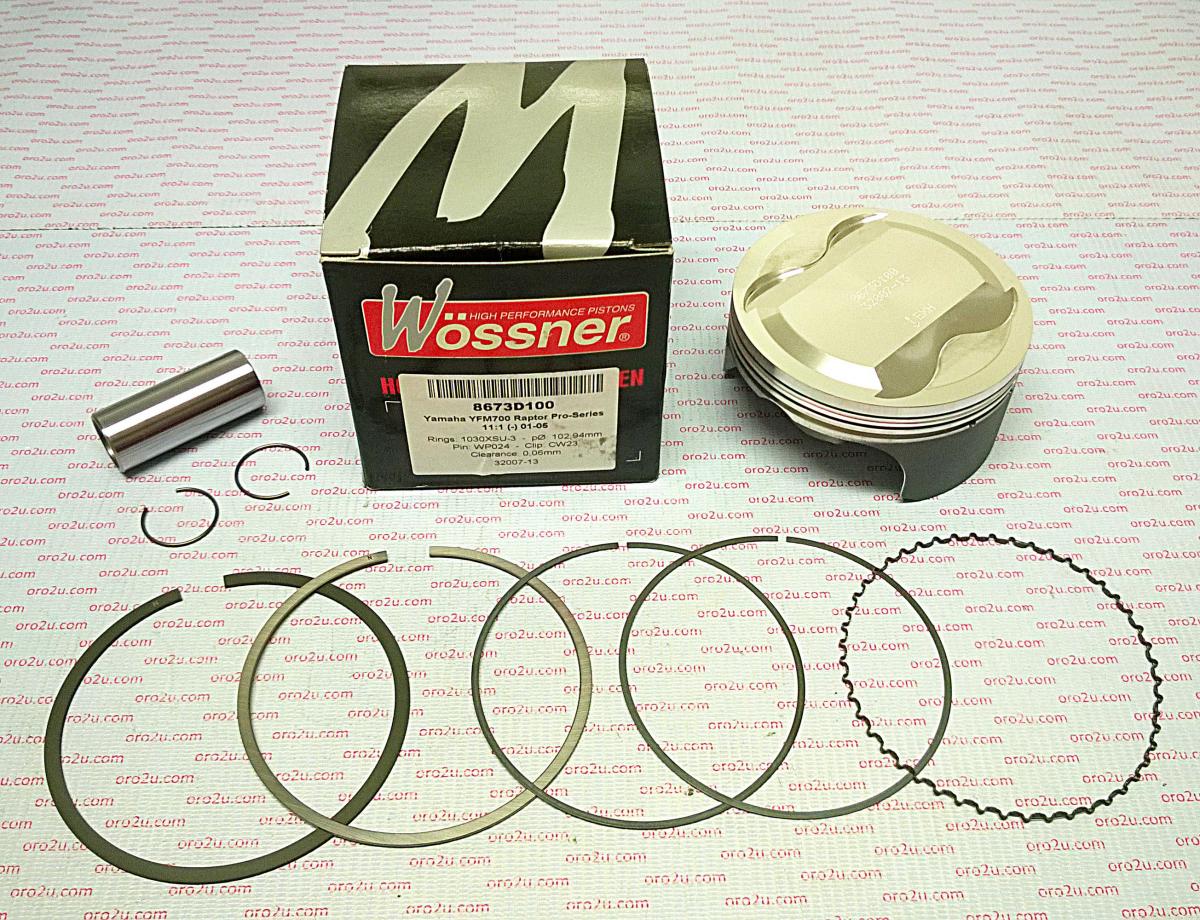

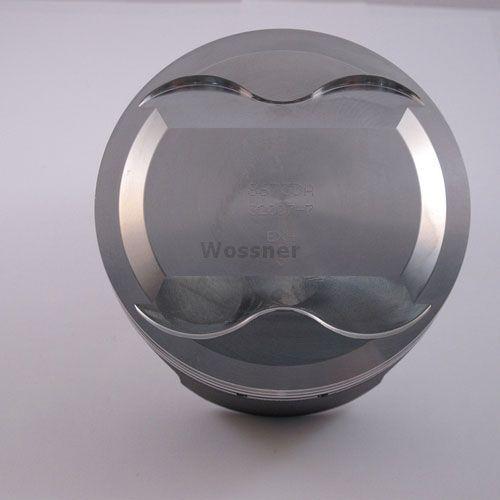

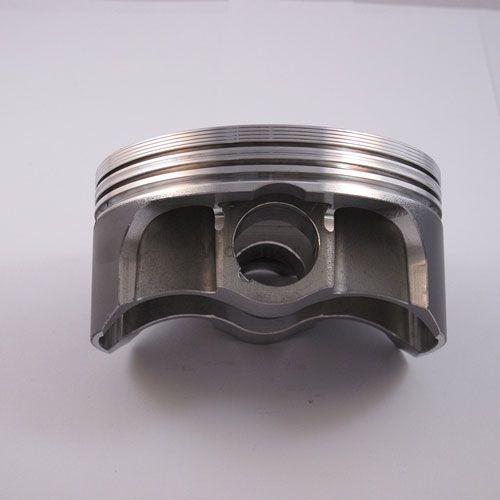

Piston Kit 06-11 YFM700 Hc 103, Wossner 8673D100 Raptor

Piston Kit 06-11 YFM700 Hc 103, Wossner 8673D100 Raptor. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 06-11 YFM700 Hc 103, Wossner 8673D100 Raptor
• Part number: 56-W4903+100.WO
• Brand: Wossner
• The Wossner 8673D100 forged piston kit features a 103.00mm bore and is designed for high-compression applications in Yamaha YFM700 Raptor ATVs from 2006 to 2016. Precision-engineered in Germany, this piston enhances strength, heat dissipation, and durability, while its elliptical shape ensures even load distribution and resistance to collapse under thermal expansion.
• Forged high-compression piston for increased performance and strength
• Designed for effective heat transfer from combustion chamber to cylinder walls
• Elliptical design provides uniform bearing surface under heat expansion
• Reduces localized pressure and prevents piston collapse
• Manufactured in Germany
• Bore: 103.00 mm
• Actual Bore Diameter: 102.94 mm
• Display: 686 cm³
• Hub Stroke: 84.00 mm
• Clearance: 0.06 mm
• Compression Height: 27.50 mm
• Dome Volume: +7.10 cm³
• Wossner Compression Ratio: 11.00:1
• OEM Compression Ratio: 9.20:1
• Theoretical Weight: Not specified
• Cross-Reference OEM Part Numbers
• Piston: 8673D100
• Lock: CW23
• Pin: WP024
• Ring Set: 1030XSU
• Rod: P4031
• Part No.: 56-W4903+100.WO
• Vehicle Fitments
• Yamaha YFM700 Raptor 2006–2016

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
