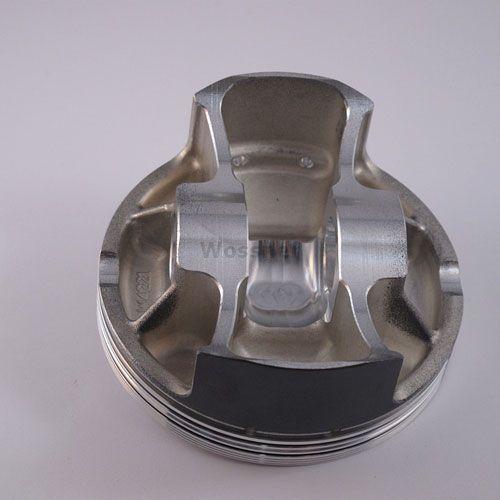

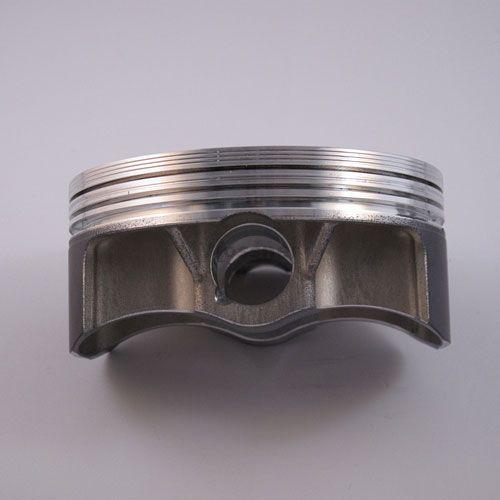

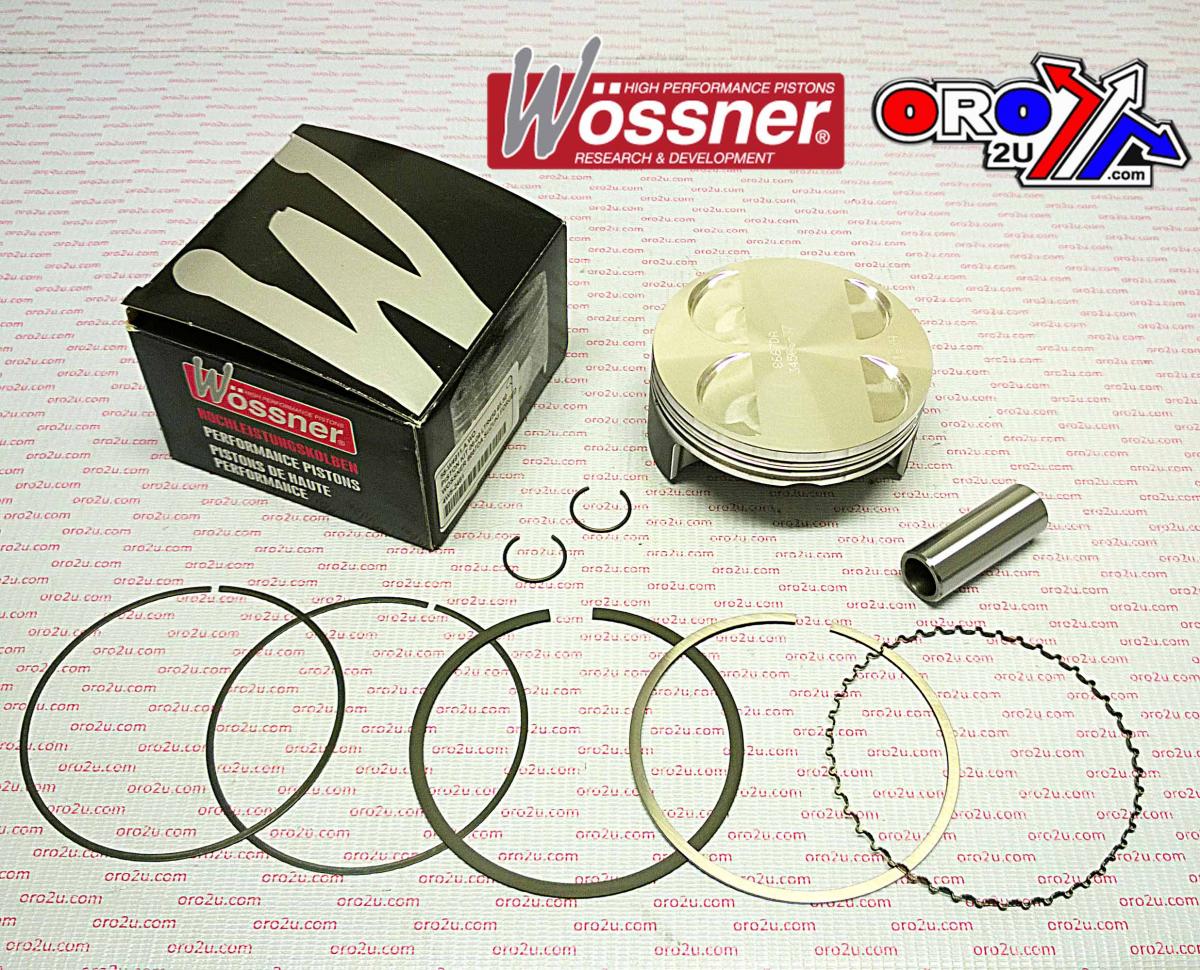

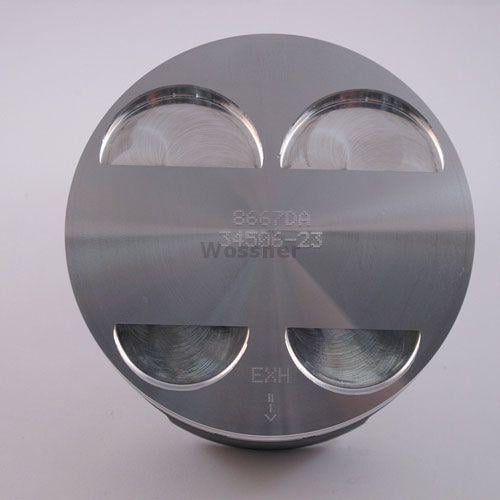

Suzuki Piston Kit 06-11 LTR450 95.50 Wossner, Wossner 8667DA Suzuki Forged 12100-45840

Suzuki Piston Kit 06-11 LTR450 95.50 Wossner, Wossner 8667DA Suzuki Forged 12100-45840. Find the product specifications and compatibility information below.

Product details

• Product: Suzuki Piston Kit 06-11 LTR450 95.50 Wossner, Wossner 8667DA Suzuki Forged 12100-45840
• Part number: 56-W4911.A.WO
• Brand: Wossner
• Forged piston construction for durability and high performance
• Engineered for optimal heat transfer to cylinder walls
• Elliptical design ensures uniform bearing surface under heat expansion
• Minimizes localized pressure and prevents piston collapse
• Manufactured in Germany
• Bore: 95.50 mm
• Actual Bore Diameter: 95.45 mm
• Display: 450 cm³
• Hub Stroke: 62.80 mm
• Clearance: 0.05 mm
• Compression Height: 24.50 mm
• Dome Volume: -3.00 cm³
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 11.70:1
• Theoretical Weight: 306 g
• Cross-Reference OEM Part Numbers
• Piston: 8667DA
• Lock: CW19
• Pin: WP037
• Ring Set: 955XSY
• Rod: P4011
• Part No.: 56-W4911.A.WO
• OEM Reference: 12100-45840, 4911M09550

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI LT R 450cc — 2006–2011
• SUZUKI LTR 450cc — 2006–2009

Match your exact make, model, year and specification before ordering.
