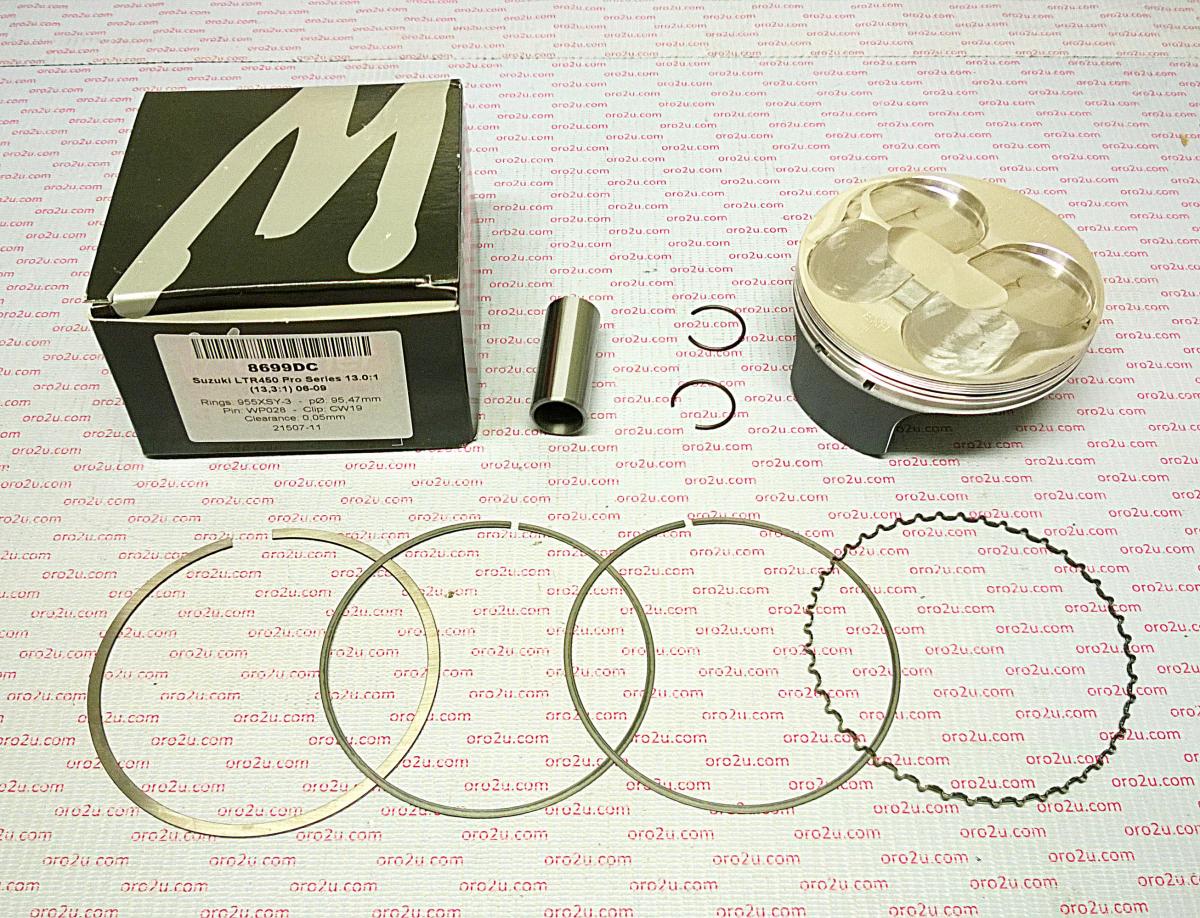

Piston Kit LTR450 Hc 95.50 C, Wossner 8699DC 13.3:1 Comp, Suzuki

Piston Kit LTR450 Hc 95.50 C, Wossner 8699DC 13.3:1 Comp, Suzuki. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit LTR450 Hc 95.50 C, Wossner 8699DC 13.3:1 Comp, Suzuki
• Part number: 56-W4912.WO.C
• Brand: Wossner
• Forged high-compression piston for durability and enhanced engine performance
• Designed for optimal thermal conductivity and structural strength
• Elliptical profile distributes pressure uniformly under heat expansion
• Minimizes risk of localized pressure and piston collapse
• Manufactured in Germany
• Bore: 95.52 mm
• Actual Bore Diameter: 95.46 mm
• Display: 450 cm³
• Hub Stroke: 62.80 mm
• Clearance: 0.05 mm
• Compression Height: 24.50 mm
• Dome Volume: +2.30 cm³
• Wossner Compression Ratio: 13.30:1
• OEM Compression Ratio: 11.70:1
• Cross-Reference OEM Part Numbers
• Piston: 8699DC
• Lock: CW19
• Pin: WP037
• Ring Set: 955XSY
• Rod: P4011
• Part No.: 56-W4912.WO.C

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI LTR 450cc — 2006–2009

Match your exact make, model, year and specification before ordering.
