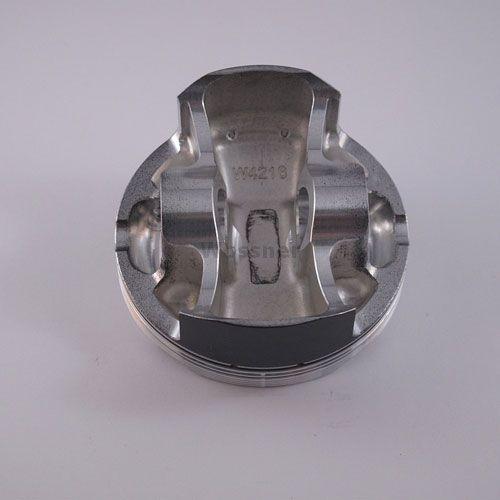

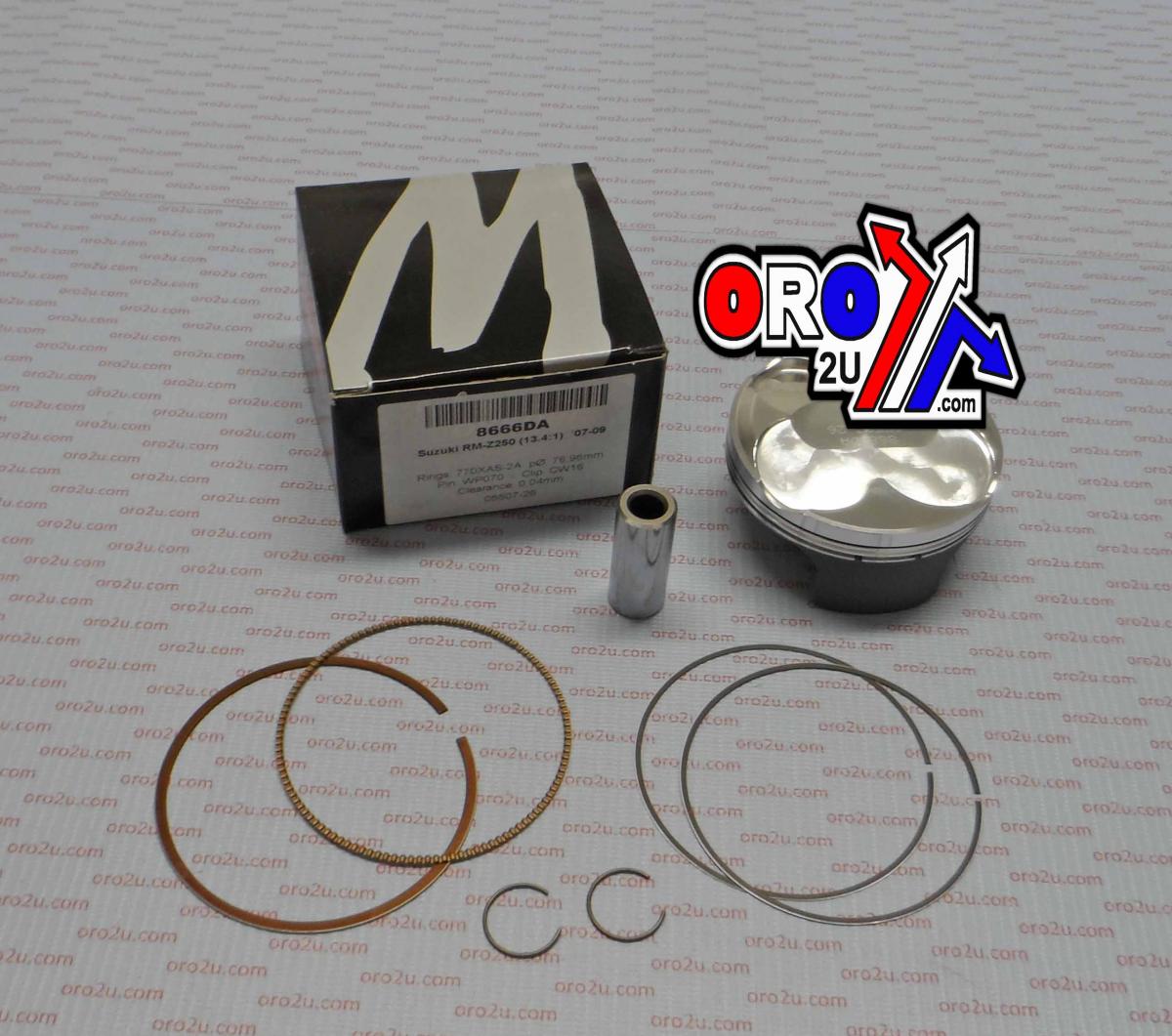

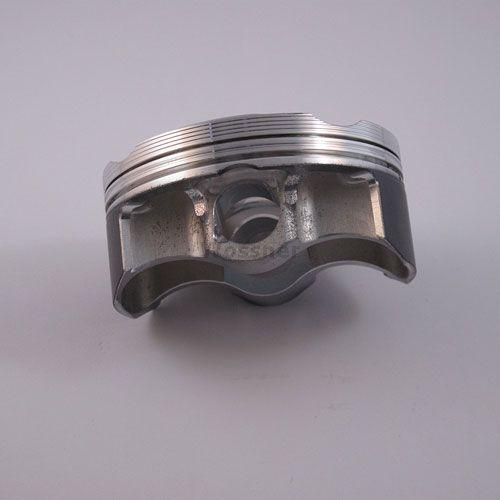

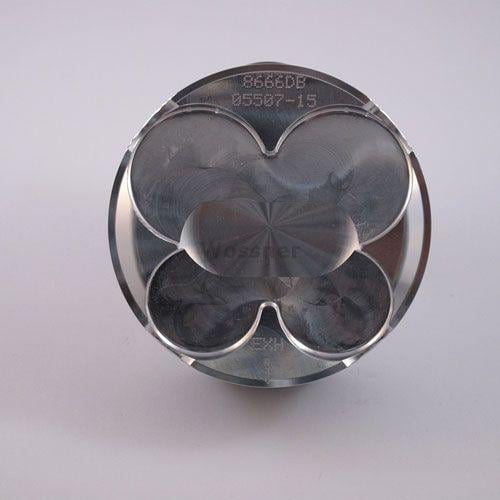

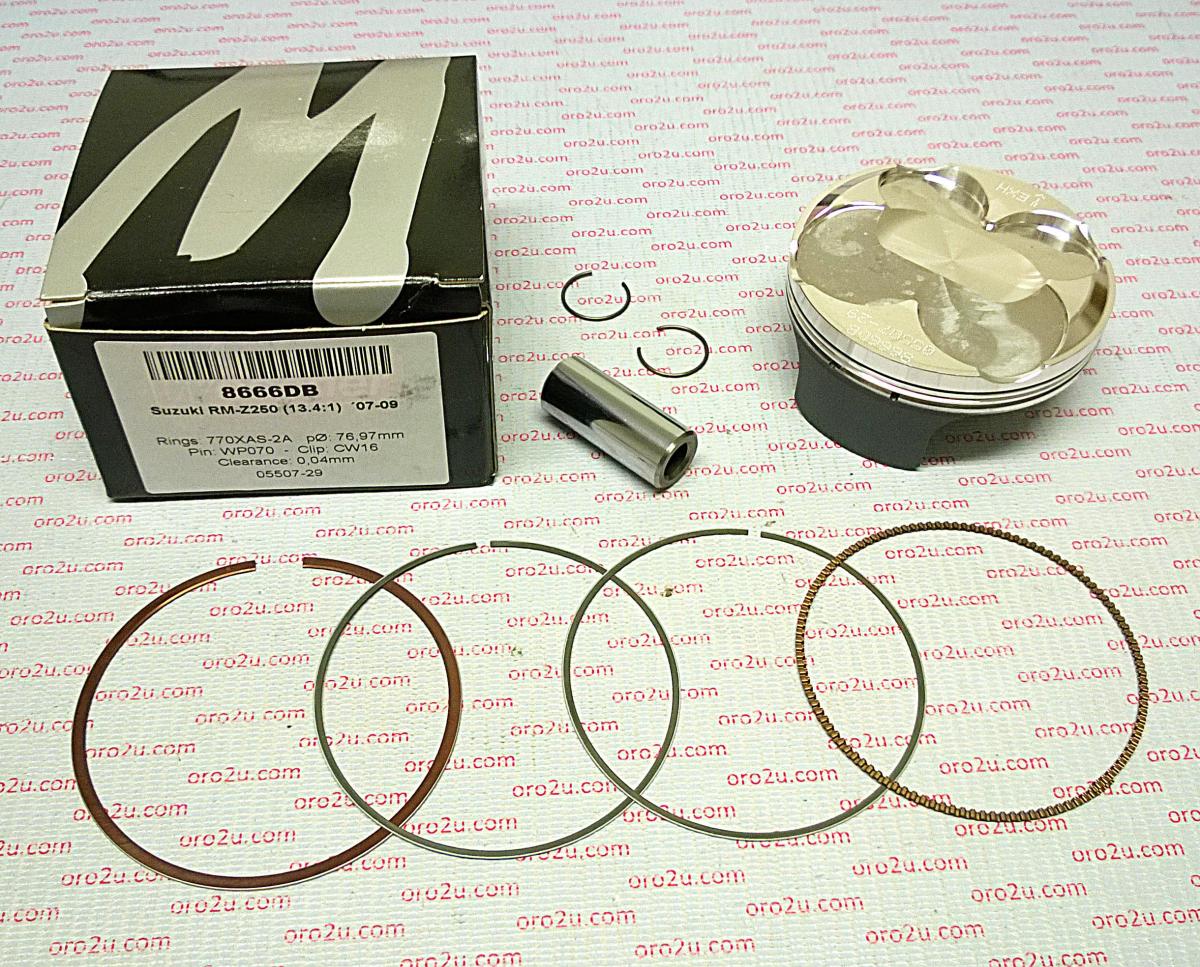

Piston Kit 07-09 RMZ250 77.00, Wossner 8666DA Suzuki 12111-10H20-0F0

Piston Kit 07-09 RMZ250 77.00, Wossner 8666DA Suzuki 12111-10H20-0F0. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 07-09 RMZ250 77.00, Wossner 8666DA Suzuki 12111-10H20-0F0
• Part number: 56-W4921.A.WO
• Brand: Wossner
• Forged piston construction for enhanced strength and reliability
• Designed to optimize heat transfer from combustion chamber to cylinder walls
• Elliptical shape provides uniform pressure distribution during thermal expansion
• Reduces risk of localized pressure and piston failure
• Manufactured in Germany
• Bore: 77.00 mm
• Actual Bore Diameter: 76.96 mm
• Display: 249 cm³
• Hub Stroke: 53.60 mm
• Clearance: 0.04 mm
• Compression Height: 19.60 mm
• Dome Volume: -3.30 cm³
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 13.40:1
• Cross-Reference OEM Part Numbers
• Piston: 8666DA
• Lock: CW16
• Pin: WP070
• Ring Set: 770XAS-2
• Rod: P4004
• Main Bearing: 2 x MB830046
• Part No.: 56-W4921.A.WO
• OEM Reference: 12111-10H20-0F0, 4921M07700

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM Z 250cc — 2007–2009

Match your exact make, model, year and specification before ordering.
