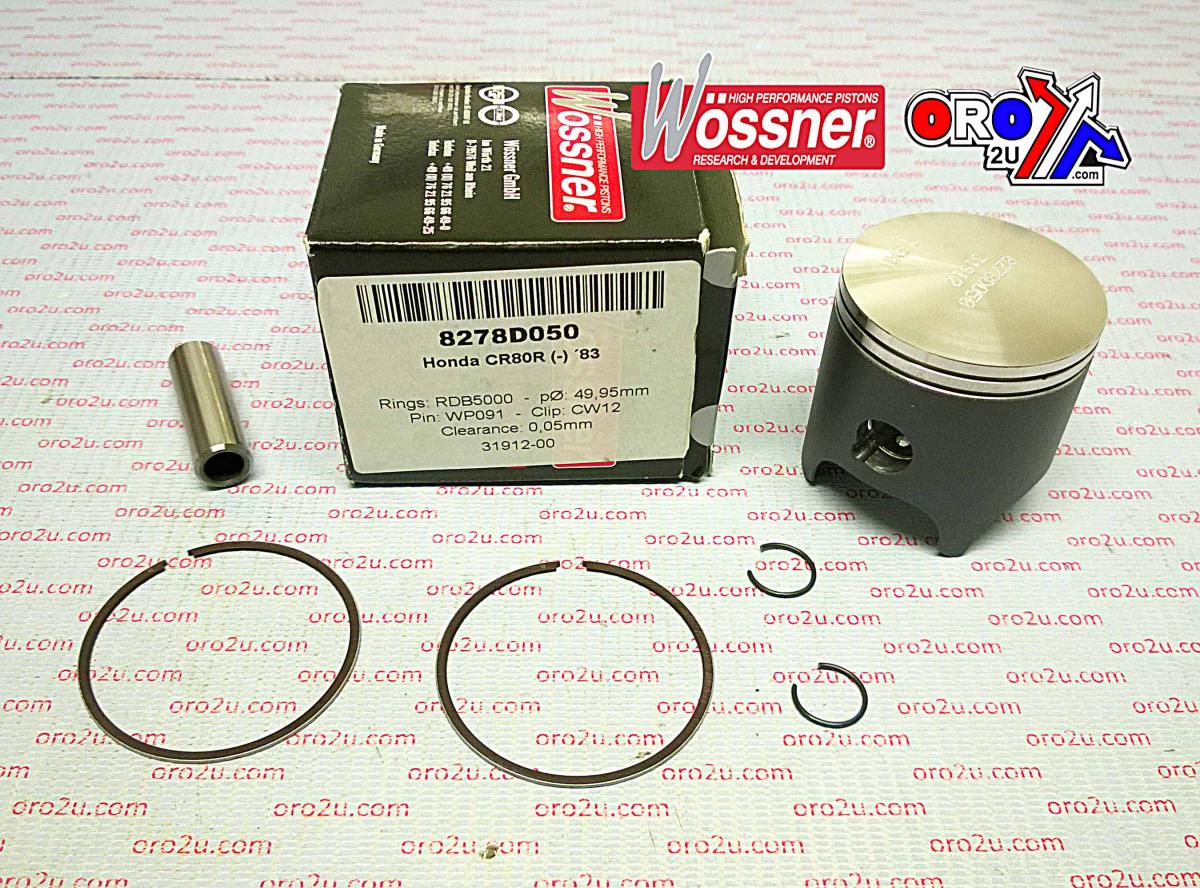

Wossner Piston Kit 1983 CR80 49.50, Forged Wossenr 8278DA

Wossner Piston Kit 1983 CR80 49.50, Forged Wossenr 8278DA. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 1983 CR80 49.50, Forged Wossenr 8278DA
• Part number: 56-W493+000.WO
• Brand: Wossner
• Forged piston for durability and high performance
• Designed to optimize heat transfer from combustion to cylinder walls
• Elliptical shape provides uniform bearing surface under heat expansion
• Minimizes localized pressure and risk of piston collapse
• Manufactured in Germany
• Bore: 49.50 mm
• Actual Bore Diameter: 49.45 mm
• Display: 79 cm³
• Hub Stroke: 41.40 mm
• Clearance: 0.05 mm
• Compression Height: 25.00 mm
• Dome Volume: Not specified
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke
• Cross-Reference OEM Part Numbers
• Piston: 8278DA
• Lock: CW12
• Pin: WP091
• Ring Set: RSB4950 x 2
• Needle Bearing: N1004
• Part No.: 56-W493+000.WO

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA CR 80cc — 1983

Match your exact make, model, year and specification before ordering.
