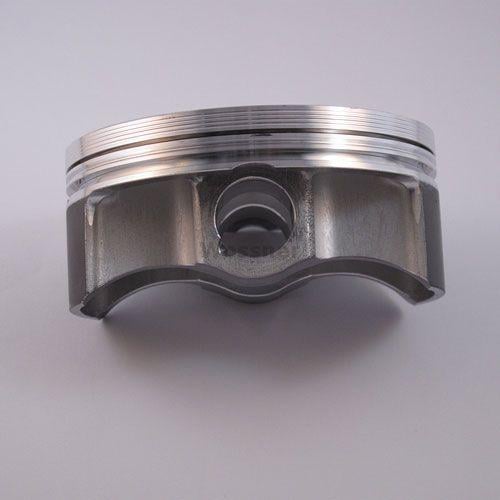

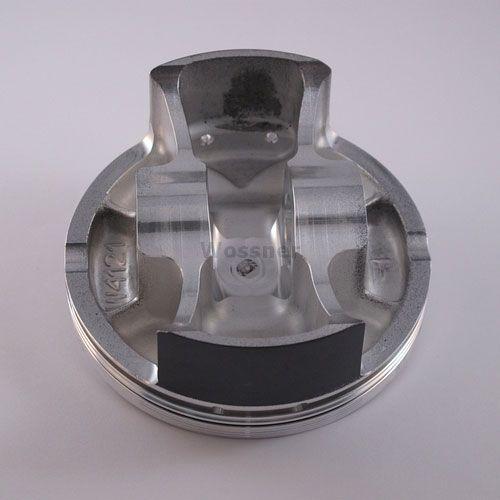

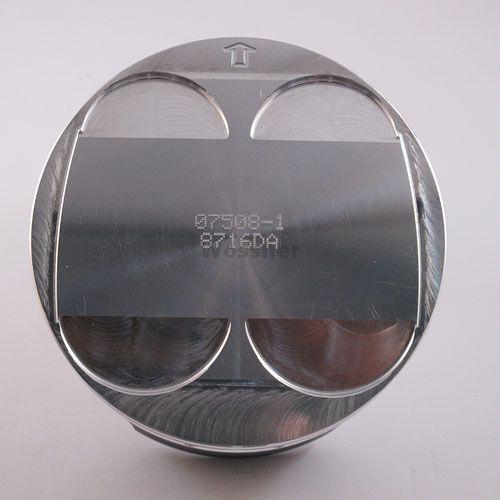

Piston Kit 08-12 RMZ450 96mm, Wossner 8716DB Suzuki Forged

Piston Kit 08-12 RMZ450 96mm, Wossner 8716DB Suzuki Forged. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 08-12 RMZ450 96mm, Wossner 8716DB Suzuki Forged
• Part number: 56-W4953.B.WO
• Brand: Wossner
• Piston kit 96.01mm Bore 95.97 Wossner 8716DB (+0.01)
• RM-Z450 2008 - 2012,
• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany
• Part No. 56-W4953.B.WO (www.fdyperformance.com)

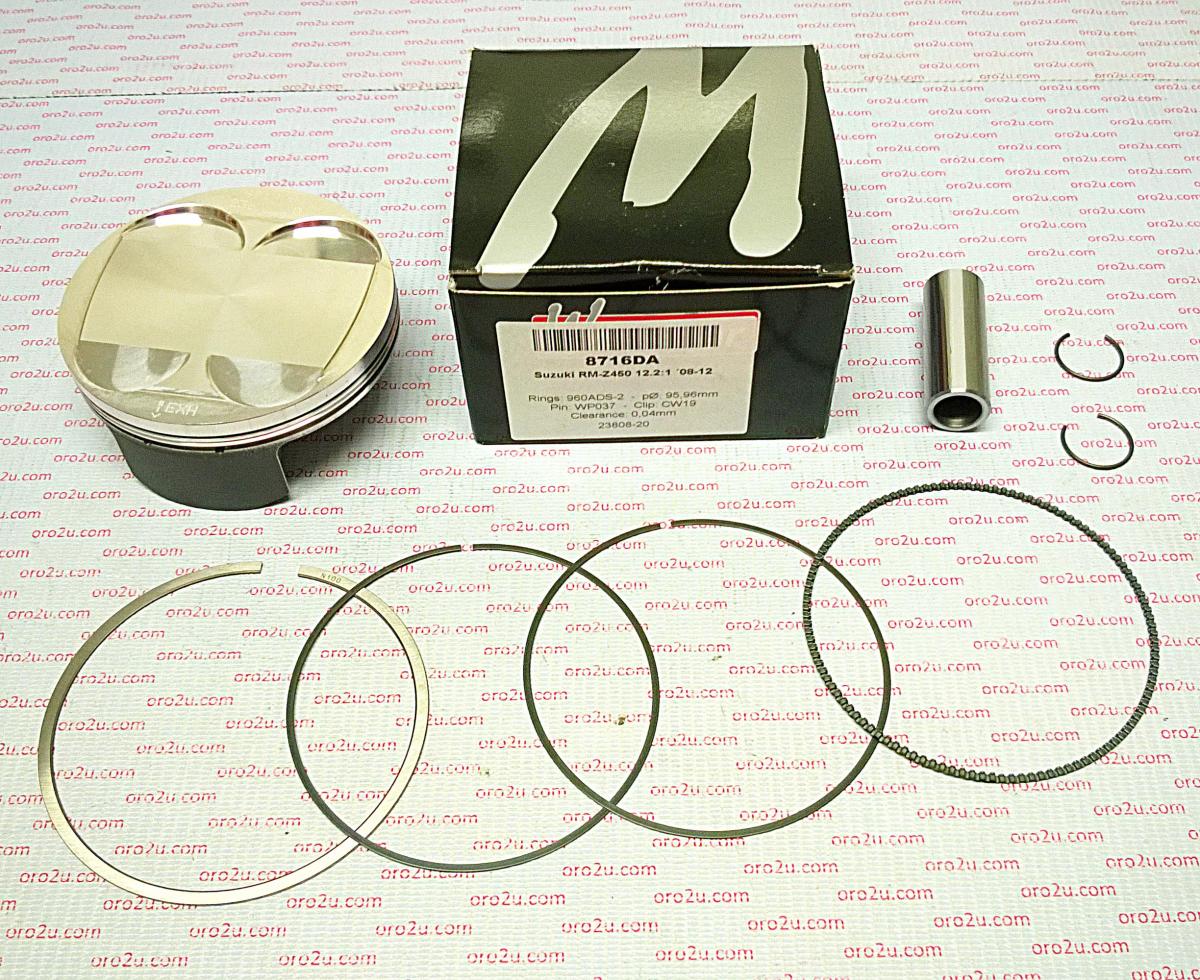

• Wossner Piston Kit (PN# 8716DB)
• Lock P/N CW19
• Pin P/N WP037
• Ring Set P/N 960ADS-2
• Main bearing P/N 'S
• 1 x MB83C072C (Right)
• 1 x MB830053-4 (Left)
• Display (cm3) 449
• Hub stroke (mm) 62.10
• Clearance (mm) 0.04
• Wossner compression Ratio: OEM
• OEM Compression ratio: 12.20:1
• Dome volume (cm3) -0.80
• Compression height (mm) 23.10
• Theorectical weight (G)

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RMX Z 450cc — 2010–2019
• SUZUKI RMX Z 450cc — 2010–2017
• SUZUKI RM Z 450cc — 2008–2012
• SUZUKI RMX Z 450cc — 2010–2018
• SUZUKI RMX Z 450cc — 2008–2012

Match your exact make, model, year and specification before ordering.
