Piston Kit 11-12 TM250F Fi 77, Forged Wossner 8839DB

Piston Kit 11-12 TM250F Fi 77, Forged Wossner 8839DB. Find the product specifications and compatibility information below.

Product details

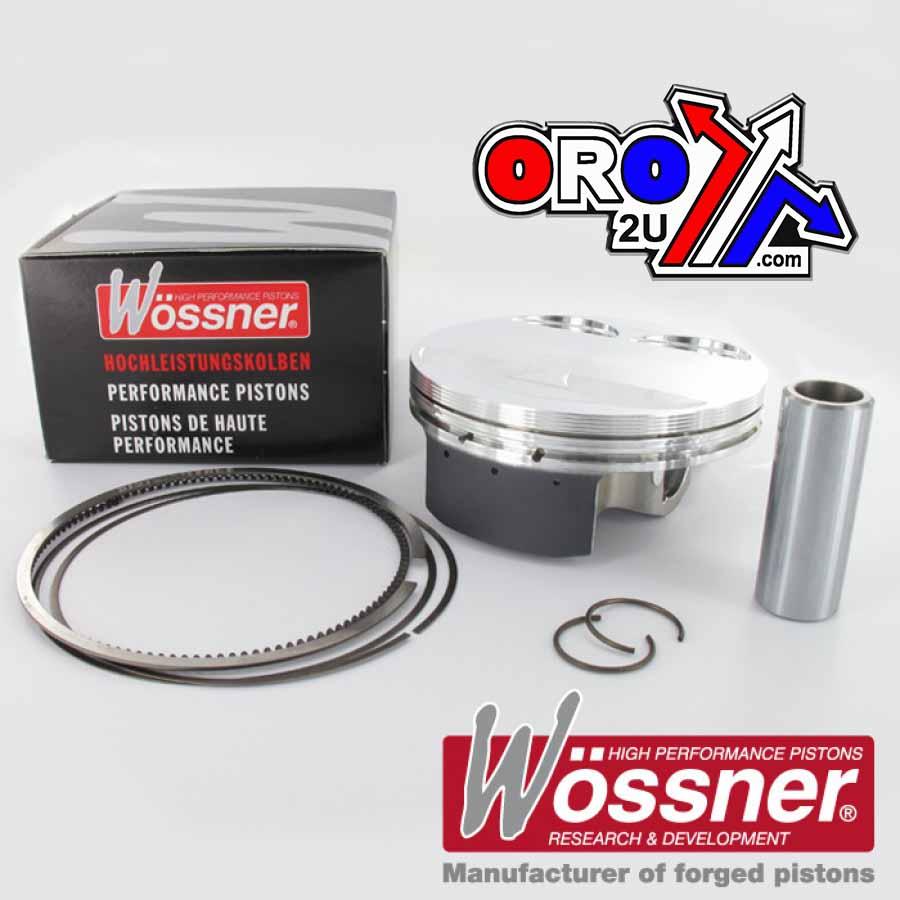

• Product: Piston Kit 11-12 TM250F Fi 77, Forged Wossner 8839DB
• Part number: 56-W4958.B.WO
• Brand: Wossner
• Piston kit 77.00mm Bore 76.97 Wossner 8839DB (+0.02)
• TM
• MX250F 2011 - 2012,
• EN250F 2011 - 2012,
• (Fuel injection)
• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany
• Part No. 56-W4958.B.WO (www.fdyperformance.com)
• WOSSNER PISTON KIT 8839DB SIZE. B 76.97mm
• Lock P/N CW16,
• Pin P/N WP059,
• Ring Set P/N 770XAS-2
• Display (cm3) 250
• Hub stroke (mm) 53.60
• Clearance (mm) 0.04
• Wossner compression Ratio:
• OEM Compression ratio:
• Dome volume (cm3) -2.10
• Compression height (mm) 22.20
• Theorectical weight (G)

Vehicle fitment

Applications listed in the supplier fitment data:

• TM MX F 250cc — 2011–2012
• TM EN F 250cc — 2011–2012
• TM TM F 250cc — 2011–2012

Match your exact make, model, year and specification before ordering.
