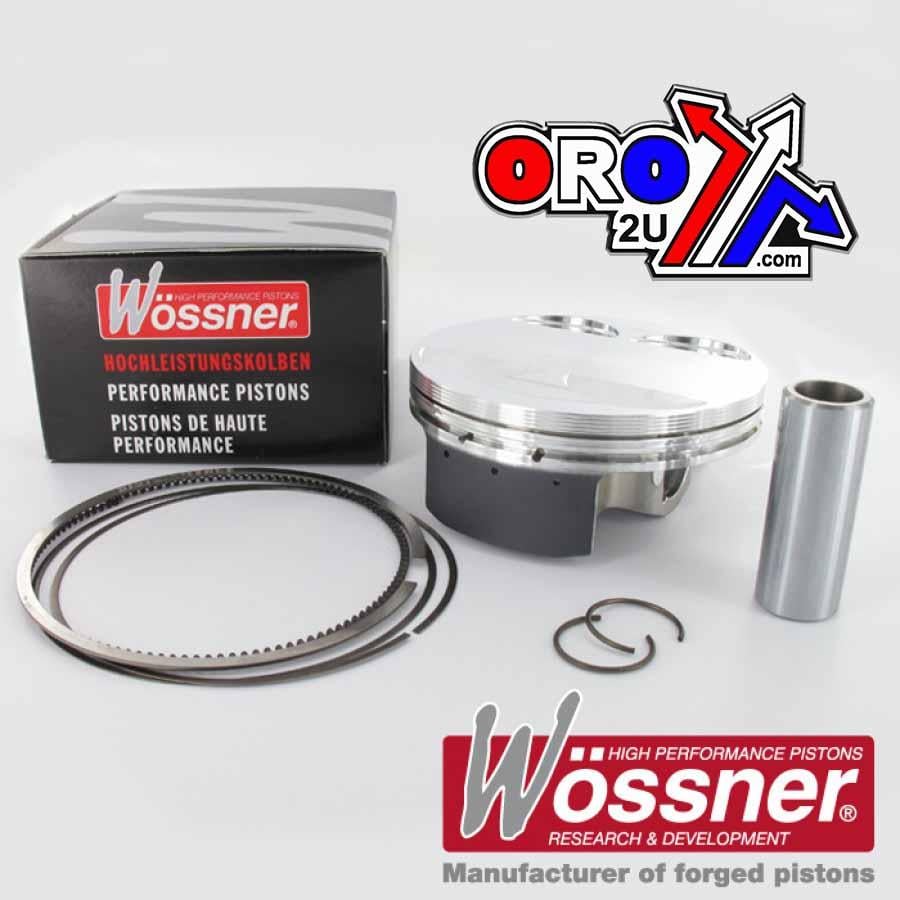

Piston Kit 11-12 TM250F Fi 77, Forged Wossner 8839DC

Piston Kit 11-12 TM250F Fi 77, Forged Wossner 8839DC. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 11-12 TM250F Fi 77, Forged Wossner 8839DC
• Part number: 56-W4958.C.WO
• Brand: Wossner
• Piston kit 77.00mm Bore 76.98 Wossner 8839DC (+0.03)
• TM
• MX250F 2011 - 2012,
• EN250F 2011 - 2012,
• (Fuel injection)
• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany
• Part No. 56-W4958.C.WO (www.fdyperformance.com)
• WOSSNER PISTON KIT 8839DC SIZE. C 76.98mm
• Lock P/N CW16,
• Pin P/N WP059,
• Ring Set P/N 770XAS-2
• Display (cm3) 250
• Hub stroke (mm) 53.60
• Clearance (mm) 0.04
• Wossner compression Ratio:
• OEM Compression ratio:
• Dome volume (cm3) -2.10
• Compression height (mm) 22.20
• Theorectical weight (G)

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
