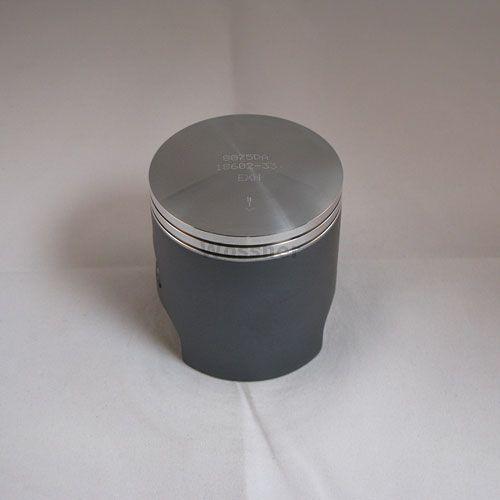

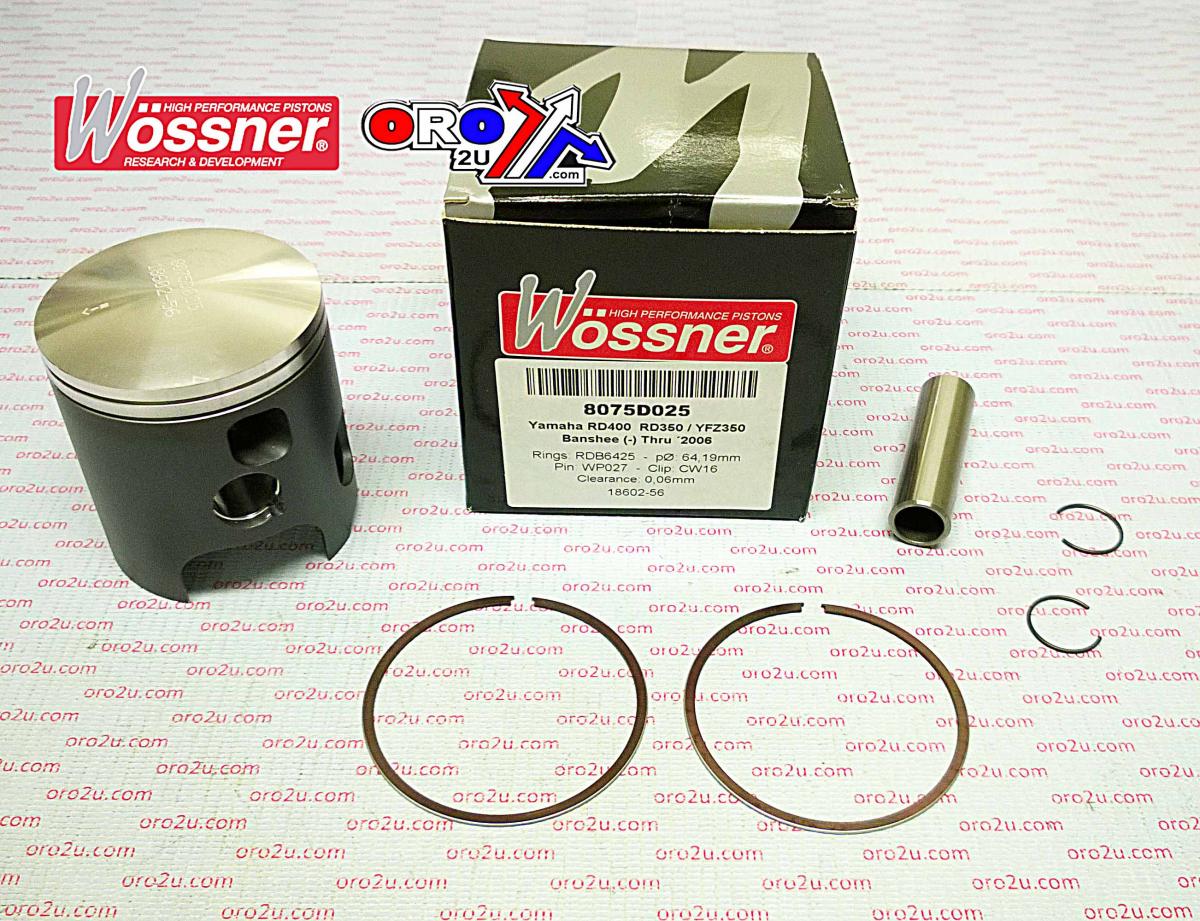

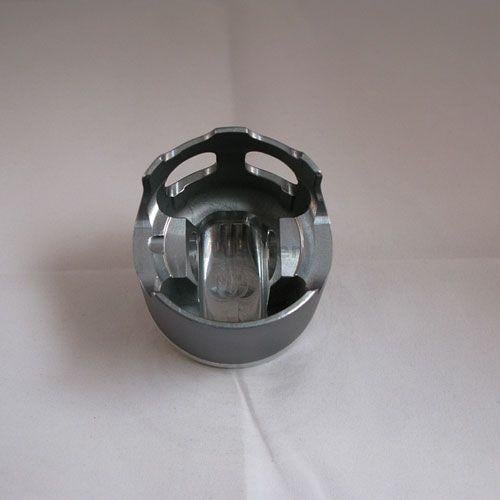

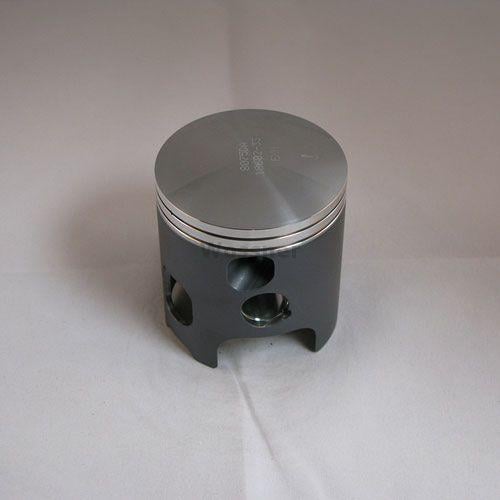

Piston Kit 87-09 YFZ350 65.50, Wossner 8075D150 Yamaha ATV

Piston Kit 87-09 YFZ350 65.50, Wossner 8075D150 Yamaha ATV. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 87-09 YFZ350 65.50, Wossner 8075D150 Yamaha ATV
• Part number: 56-W513+150.WO
• Brand: Wossner
• Forged piston construction for high strength and durability
• Engineered for optimal combustion heat transfer to cylinder walls
• Elliptical profile promotes uniform pressure distribution under thermal expansion
• Made in Germany
• Bore size: 65.50mm (65.44mm)
• Display volume: 347 cm³
• Stroke: 54.00 mm
• Clearance: 0.06 mm
• Compression height: 36.00 mm
• Dome volume: Not specified
• Theoretical weight: Not specified
• Compression ratio: 2-stroke (Wossner and OEM)
• Cross-Reference OEM Part Numbers
• Piston: 8075D150
• Lock: CW16
• Pin: WP027
• Ring Set: RSB6550 x 2

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA RD 350cc — 1973–1990
• YAMAHA RD 400cc — 1976–1982

Match your exact make, model, year and specification before ordering.
