Piston Kit 87-09 YFZ350 68.50, Wossner 8075D450 Yamaha ATV

Piston Kit 87-09 YFZ350 68.50, Wossner 8075D450 Yamaha ATV. Find the product specifications and compatibility information below.

Product details

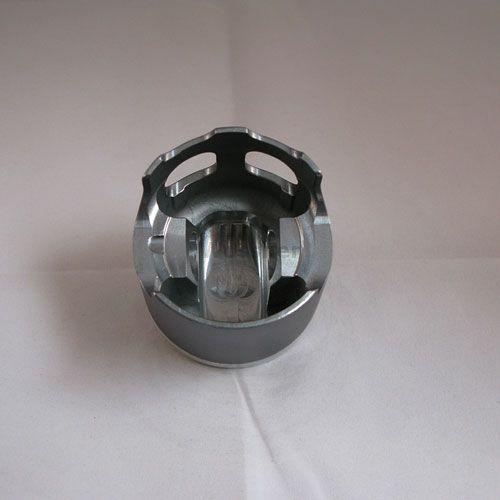

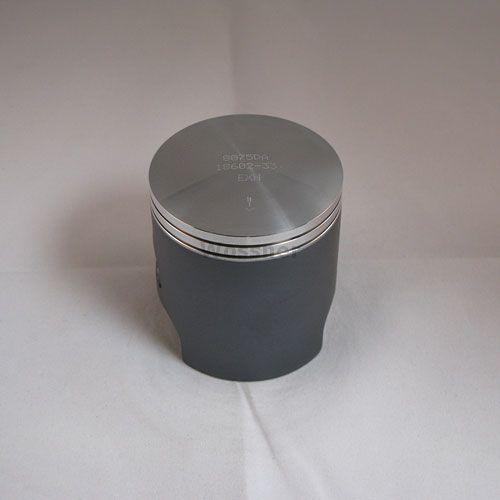

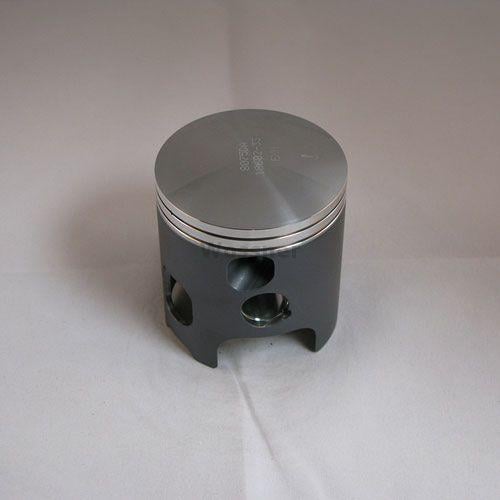

• Product: Piston Kit 87-09 YFZ350 68.50, Wossner 8075D450 Yamaha ATV
• Part number: 56-W513+450.WO
• Brand: Wossner
• Forged piston construction for increased structural integrity
• Elliptical design for uniform bearing surface under heat expansion
• Efficient combustion chamber heat transfer to cylinder walls
• Made in Germany

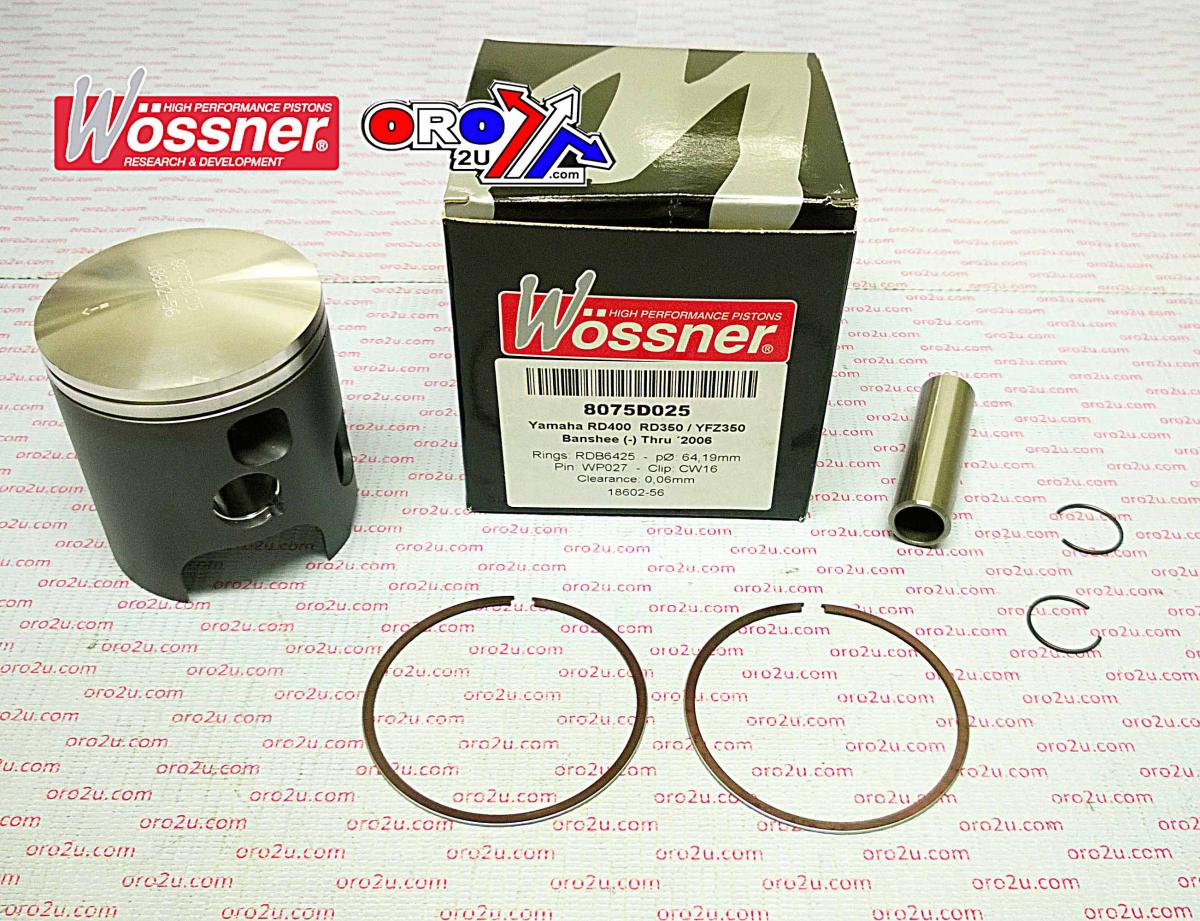

• Includes piston, pin, locks, and ring set
• Bore Size: 68.50mm
• Actual Bore: 68.44mm
• Stroke: 54.00mm
• Clearance: 0.06mm
• Compression Ratio (Wossner and OEM): 2-stroke
• Compression Height: 36.00mm
• Displacement: 347 cm³
• Cross-Reference OEM Part Numbers
• Piston Kit Part No: 56-W513+450.WO
• Lock P/N: CW16
• Pin P/N: WP027
• Ring Set P/N: RSB6850 (x2)

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA RD 350cc — 1973–1990
• YAMAHA RD 400cc — 1976–1982

Match your exact make, model, year and specification before ordering.
