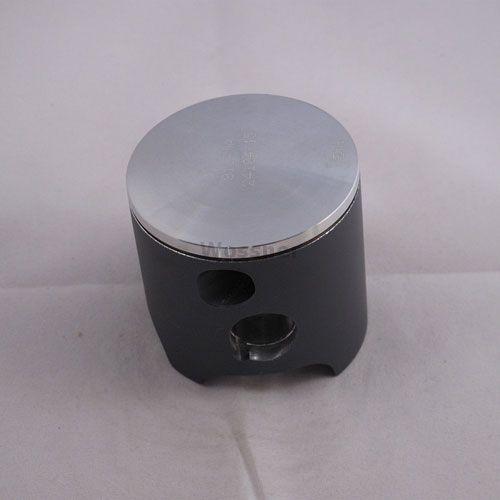

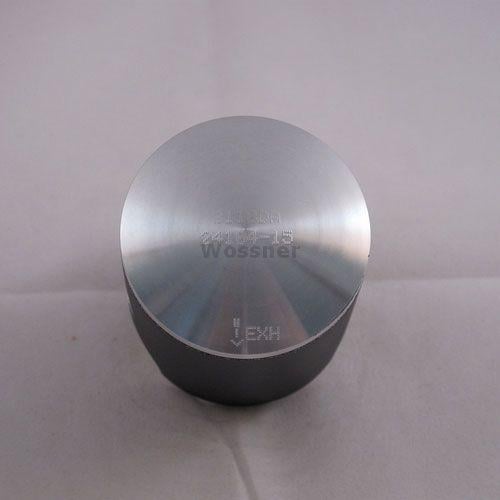

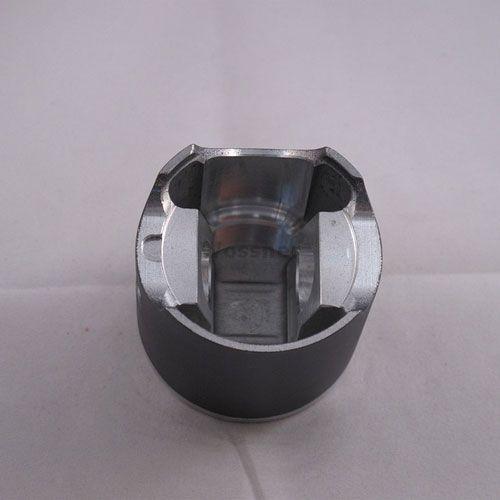

Piston Kit 86-88 YZ125 56.00, Wossner 8118DA Yamaha MX 1LX-11635-00-00

Piston Kit 86-88 YZ125 56.00, Wossner 8118DA Yamaha MX 1LX-11635-00-00. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 86-88 YZ125 56.00, Wossner 8118DA Yamaha MX 1LX-11635-00-00
• Part number: 56-W559+000.WO
• Brand: Wossner
• Forged piston construction for superior strength
• Elliptical design ensures uniform bearing surface during heat expansion
• Even thrust load distribution helps prevent localised stress and piston collapse
• Designed for efficient combustion heat transfer to cylinder walls
• Manufactured in Germany
• Bore: 56.00mm
• Actual diameter: 55.94mm
• Displacement: 123 cm³
• Stroke: 50.00mm
• Clearance: 0.06mm
• Compression height: 30.00mm
• Compression ratio: 2-stroke

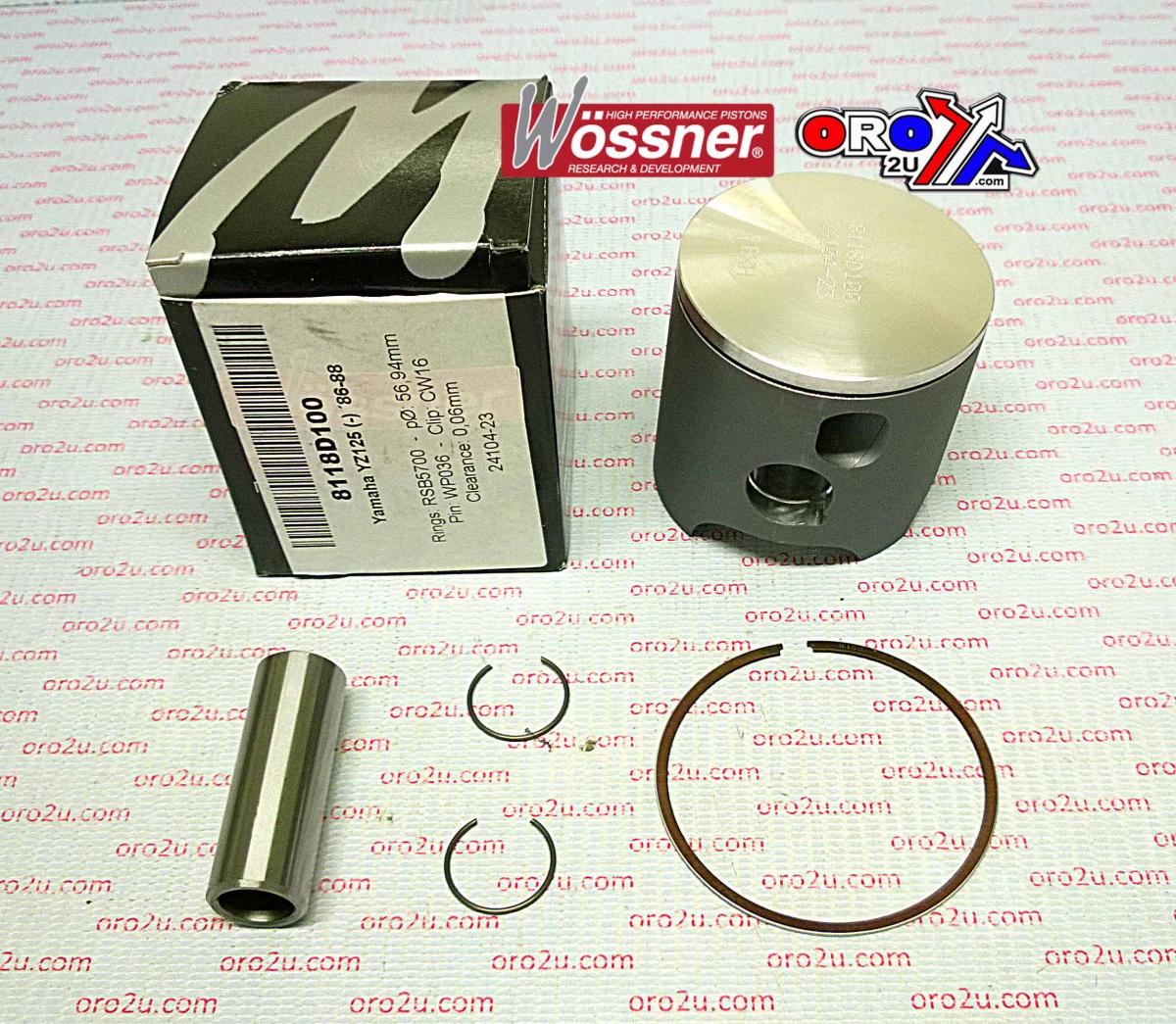

• Cross-Reference OEM Part Numbers
• Piston Kit Part No.: 56-W559+000.WO
• Wossner Piston Kit No.: 8118DA
• Lock: CW16
• Pin: WP036
• Ring Set: RSB5600
• OEM Reference: 1LX-11635-00-00

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YZ 125cc — 1986–1988

Match your exact make, model, year and specification before ordering.
