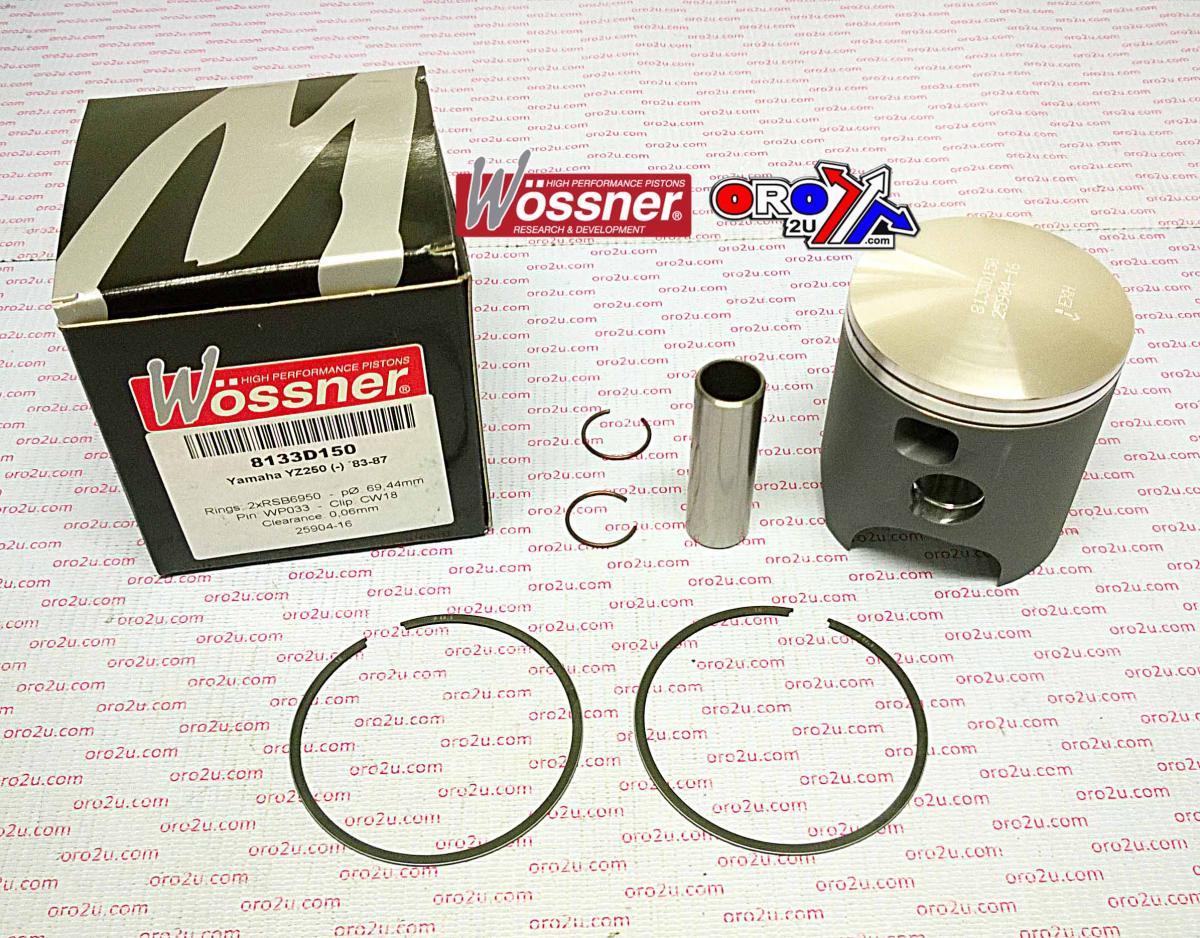

Piston Kit 83-87 YZ250 69.50, Wossner 8133D150 Yamaha MX

Piston Kit 83-87 YZ250 69.50, Wossner 8133D150 Yamaha MX. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 83-87 YZ250 69.50, Wossner 8133D150 Yamaha MX
• Part number: 56-W560+150.WO
• Brand: Wossner
• Forged piston for increased durability and performance
• Designed for optimal combustion heat transfer
• Elliptical shape minimises localised pressure and distributes thrust loads
• Engineered for 2-stroke engine use
• Manufactured in Germany
• Bore: 69.50 mm
• Actual Bore Diameter: 69.44 mm
• Compression Height: 36.00 mm
• Display Volume: 246 cm³
• Stroke: 68.00 mm
• Clearance: 0.06 mm
• Compression Ratio: 2-stroke (Wossner and OEM)
• Cross-Reference OEM Part Numbers
• Piston Kit Part No.: 8133D150
• Lock P/N: CW18
• Pin P/N: WP033
• Ring Set P/N: RSB6950 (x2)
• Rod P/N: P2048 (for 1983–1989 models)
• Alternate Part No.: 56-W560+150.WO

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YZ 250cc — 1983–1987

Match your exact make, model, year and specification before ordering.
