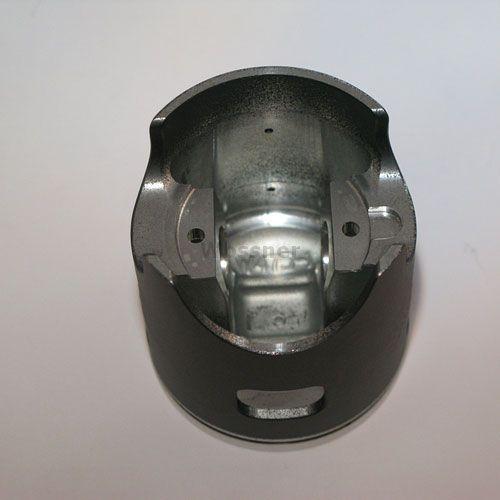

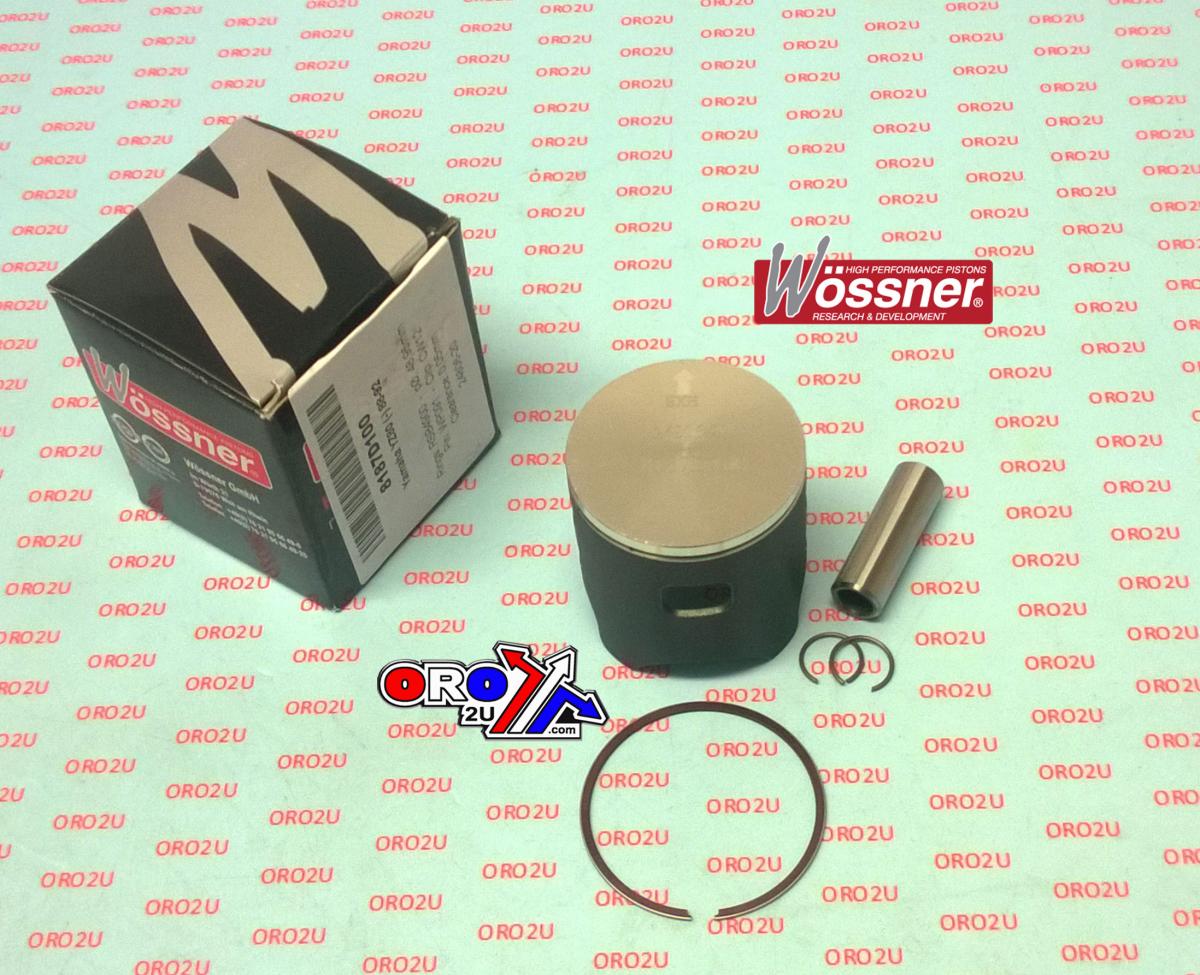

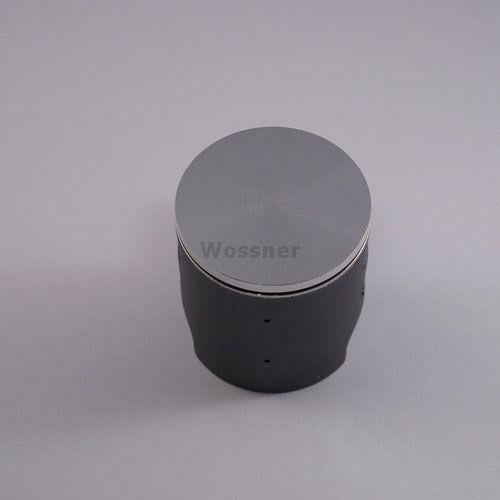

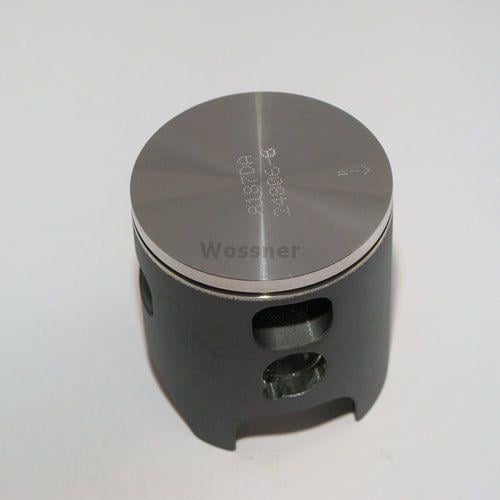

Piston Kit 88-92 YZ80 50.00, Wossner 8187D200 Yamaha MX

Piston Kit 88-92 YZ80 50.00, Wossner 8187D200 Yamaha MX. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 88-92 YZ80 50.00, Wossner 8187D200 Yamaha MX
• Part number: 56-W569+200.WO
• Brand: Wossner
• Forged piston ensures high strength and thermal stability
• Designed for optimal heat transfer from combustion chamber to cylinder wall
• Elliptical profile evenly distributes thrust loads during expansion
• Minimises localised stress to help prevent piston failure
• Manufactured in Germany for consistent quality
• Bore Size: 50.00 mm
• Actual Bore Diameter: 49.95 mm
• Stroke: 45.60 mm
• Display Displacement: 82 cm³
• Clearance: 0.05 mm
• Compression Ratio (Wossner and OEM): 2-stroke
• Compression Height: 27.00 mm
• Cross-Reference Wossner Part Numbers
• Piston Kit: 8187D200
• Lock: CW12
• Pin: WP091
• Ring Set: RSB5000
• Part No.: 56-W569+200.WO

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YZ 80cc — 1988–1992

Match your exact make, model, year and specification before ordering.
