Piston Kit 88-92 LT250 69.00, Wossner 8259D200 Suzuki ATV

Piston Kit 88-92 LT250 69.00, Wossner 8259D200 Suzuki ATV. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 88-92 LT250 69.00, Wossner 8259D200 Suzuki ATV
• Part number: 56-W571+2.00.WO
• Brand: Wossner
• The Wossner 8259D200 piston kit is designed for Suzuki LT250 ATV models from 1988 to 1992, featuring a 69.00 mm bore for +2.00 mm oversize applications. Manufactured in Germany with forged construction, this piston delivers exceptional durability and thermal performance. Its elliptical design promotes a uniform bearing surface under heat expansion, reducing localised pressure and minimising the risk of piston collapse. The kit is complete with all essential components for a precise and reliable engine rebuild.
• Forged piston provides high strength and long-term durability
• Optimised for efficient heat transfer from combustion chamber to cylinder wall
• Elliptical profile ensures even thrust load distribution during thermal expansion
• Minimises localised pressure to prevent piston failure
• Precision-engineered and manufactured in Germany
• Bore Size: 69.00 mm
• Actual Bore Diameter: 68.94 mm
• Stroke: 70.00 mm
• Display Displacement: 246 cm³
• Clearance: 0.06 mm
• Compression Ratio (Wossner and OEM): 2-stroke
• Compression Height: 37.20 mm

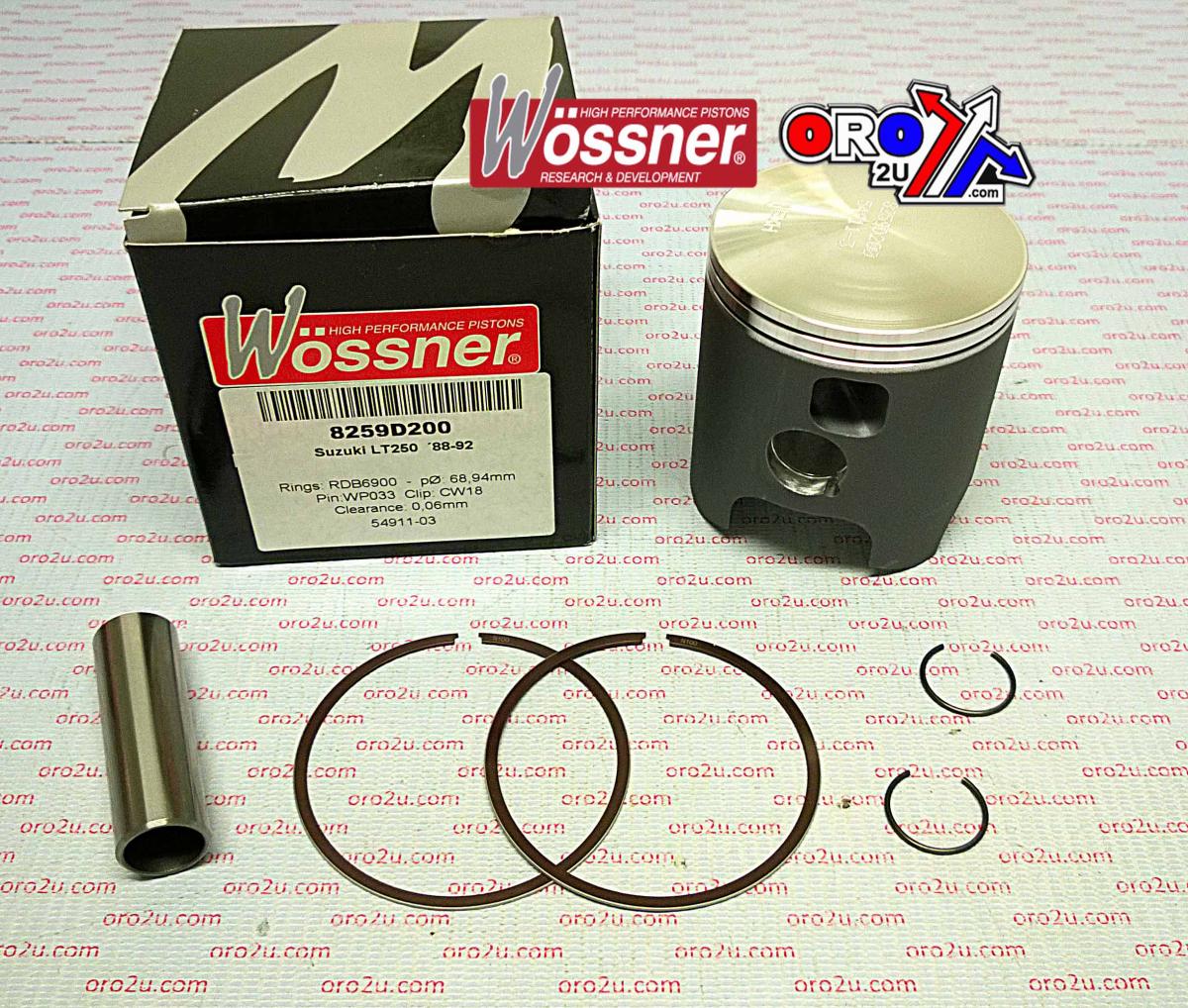

• Cross-Reference Wossner Part Numbers
• Piston Kit: 8259D200
• Lock: CW18
• Pin: WP033
• Ring Set: RDB6900
• Part No.: 56-W571+2.00.WO
• Vehicle Fitments
• Suzuki LT250 (1988–1992)

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
